L4594 Actuator

Name: L4594.E1000
Brand: WC
SKU: L4594.E1000

0,627" bore, material: Graphite

Article properties

Order No.

L4594.E1000

Stroke

1,0"

Rod end linkage

1/4 Ball

Piston type

Aluminium

Bore dia.

0,627"

Leak at 50 psi _SL/min max.

0.74

Leak at 100 psi _SL/min max.

2.78

Body length

1,800"

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Graphite carbon piston.
Annealed borosilicate glass cylinder.
Precision fire-polished bore.
Stainless steel piston rod (AISI 304) or Aluminium 2024-T4.
Shock resistant rubber case.

Technical Notes

Piston area = 0.309 in² (199.20mm²)
Pressure range = full vacuum - 100 psi (0.69 MPa)
Force factor:
Piston area x pressure = output force.
Max force = 137.45N (at 0.69 MPa)
Minimum pressure differential required for actuation = 0.05 psi (345 Pa)
Friction coefficient = 0.2
Force without side load typically 0.5% - 1.5% of load.
Operating temperature range: -55°c to 150°c.
If operating at temperatures about +70°c, please advise when placing order.

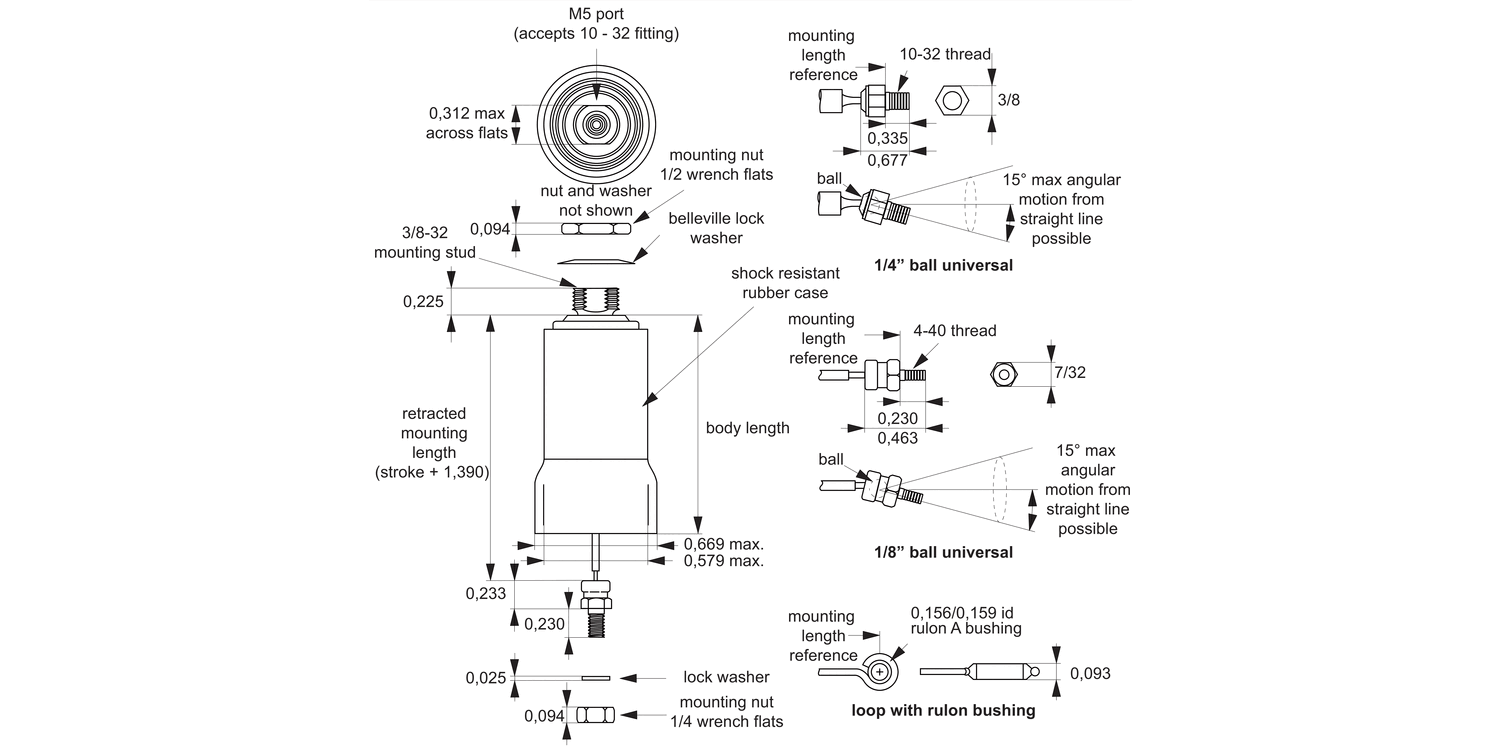

Mounting data:
Mounting hole:
Rectangular: 0.312" x 0.375" (8mm x 10mm)
Round: 0.375" (10mm)
Suggested mounting bracket thickness = 0.060" - 0.125" (1.52mm - 3.18mm).
Mounting nut torque:
Head = 4-8 in-lb (0.45-0.90Nm).
Rod end = 2-5 in-lb (0.23-0.56 Nm).
Fitting = 12 in-lb max.

*Full stroke is obtained with customer held mounting tolerance of ±0.015" (0.038mm).
