L3502 Vacuum Compatible Motorised Stages

Name: L3502.350-IMB
Brand: WC
SKU: L3502.350-IMB

high precision, material: Aluminium

Article properties

Order No.

L3502.350-IMB

Travel

350

Motor type

Int. stepper

Motor code

-IMB

Accuracy ± mm

0,6µ

Bi-directional repeatability ±

10µ

Horizontal load max. kg

Vertical load max. kg

6.5

Side load max. kg

Weight kg

3.41

Lead screw pitch

6.35

Speed max. mm/s

12.0

l₁

480

l₂

108.3

Resolution ±

1,6µ

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-1	-	0%
2-4	-	5%
5+	-	10%

Download product datasheet

Technical & Application

Material

Aluminium body (6061). Hardened linear guideways, stainless steel Acme lead screw (with internally lubricated anti-backlash nut).

Technical Notes

Operation down to 10-6 Torr.
Teflon jacketed wire, fluxless soldered connections. Vacuum compatible motor and limit switches. Low vapour pressure lubricant, blind holes are vented. All parts are thoroughly cleaned followed by latex gloved assembly.
Replace -XXX in part number with the code for your preferred motor type - see second data table for codes and specifications.
Easy plug and play system. Controllable from PC or PLC when used in conjunction with a motion controller. Controllers come with their own software but many pre-existing software packages (such as Labview) can be used.
Can be readily supplied in XY, XZ and XYZ configurations.
Applications - research, semi-conductors, fibre optics, automation etc.
Replace -XXX in part number with the code for your preferred motor type - see second data table for codes and specifications.

Tips

Motor options:
Stepper - Nema 17, high torque, brushless. 0.95 Amp/phase, 5.0 Ohm/phase, 3.1 mH/phase, 1.8°/step.
Intelligent stepper - Nema 17 with a fully programmable motion controller inbuilt (ie no need for an external motion controller). Two +5 to +24VDC I/O lines. One 10 bit analogue input selectable 0 to +10VDC, 0 to +5VDC. RS422/485 communications. Input voltage +24VDC.

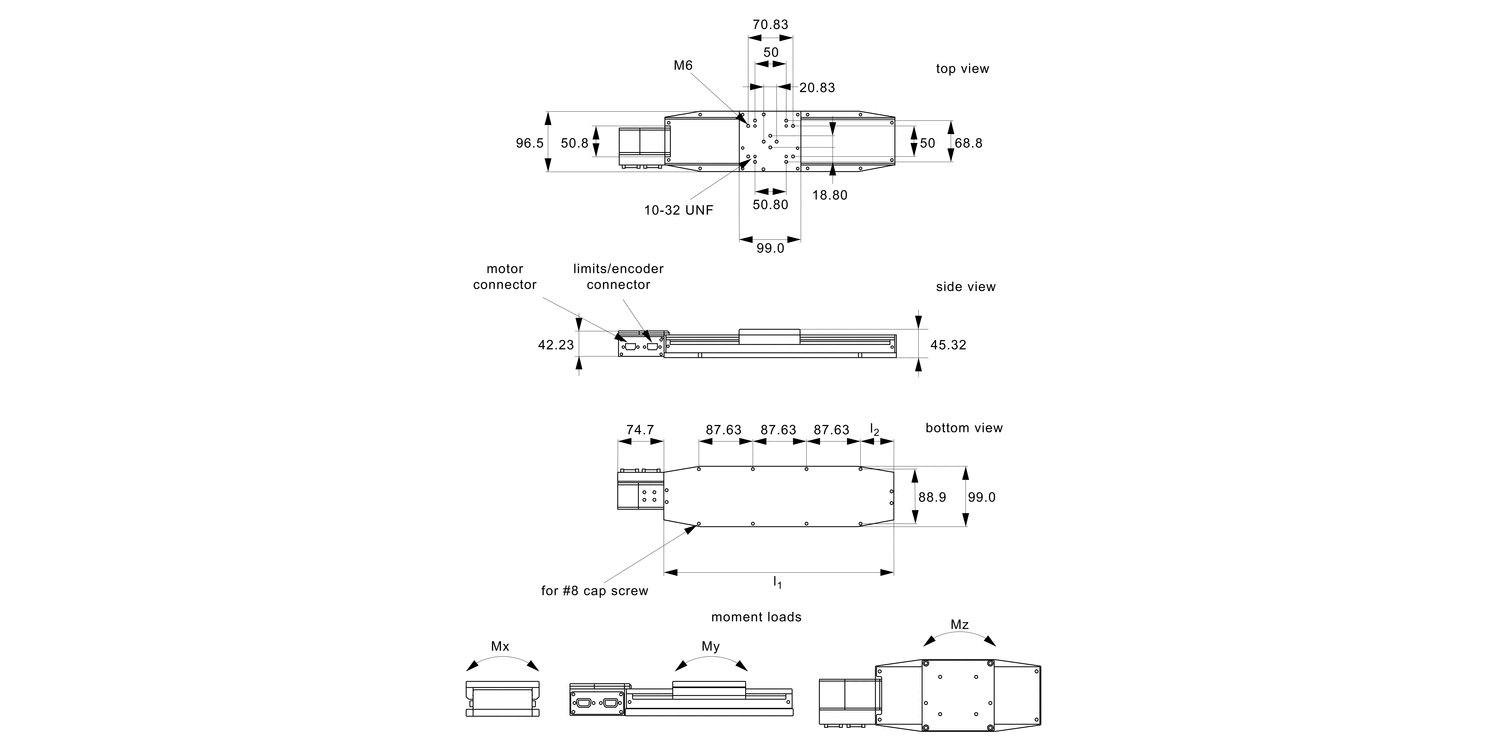

Drawings show stepper motor configuration. See special pages for further motor options.

Important Notes

Max. moment loads:
Mx = 20 Nm
My = 20 Nm
Mz= 19 Nm
For 50mm travel stage Ma and Mb = 12 Nm.
For combined stages, add suffixes:
XY - for XY stage
XZ - for XZ stage
XYZ - for XYZ stage
