L3339 Manual Rotary Stages

Name: L3339.080
Brand: WC
SKU: L3339.080

stainless, material: Stainless steel

Article properties

Order No.

L3339.080

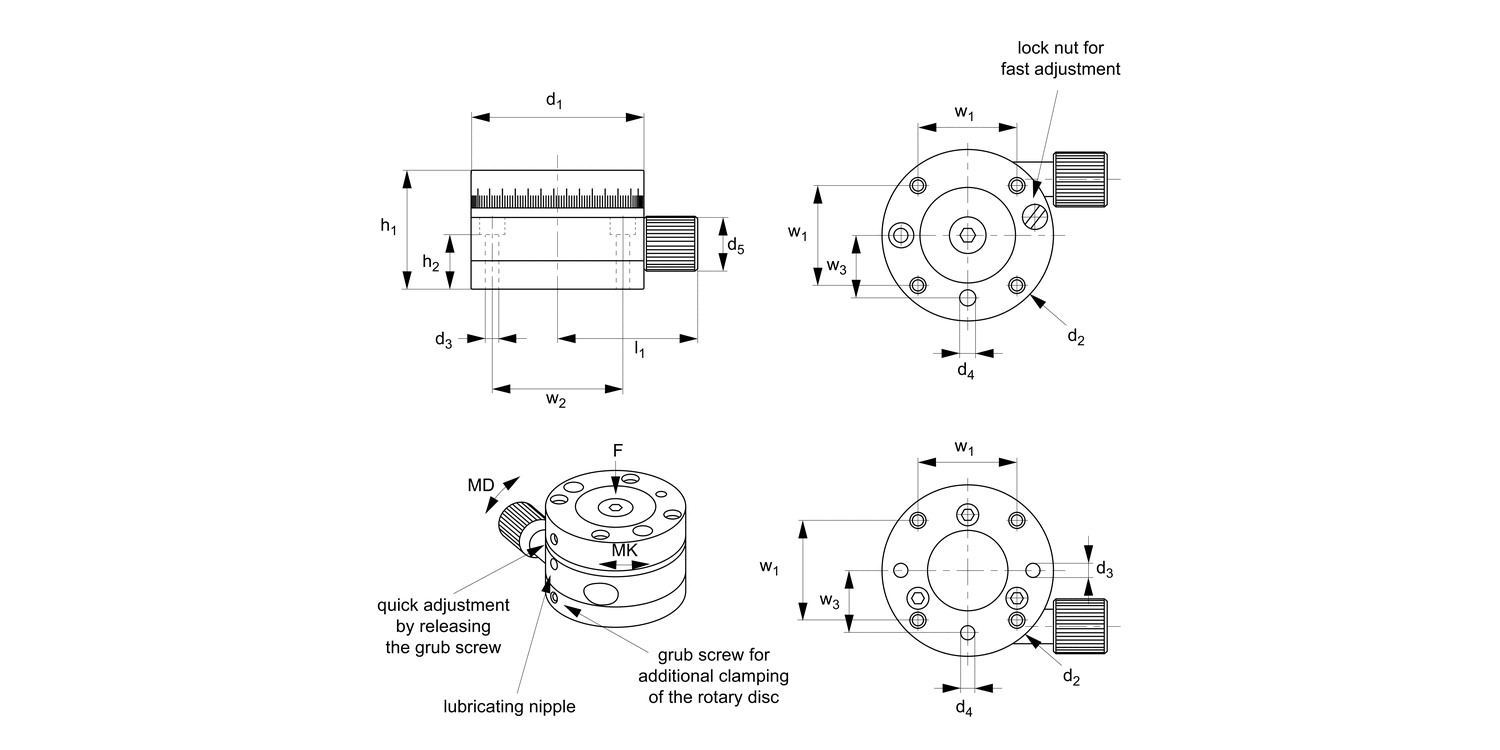

d₁ tol. h7

h₁

h₂

24.0

d₂

M5x8

d₃

5.4

d₄ tol. H7

4x10

d₅

l₁

w₁

w₂

w₃ ±0.02

Concentricity tolerance

±0,03

Circular runout tolerance

±0,03

Knob torque M_d max. Nm

2.5

Torque unclamped max. Nm

Torque clamped max. Nm

Load F max. N

100

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Stainless steel AISI 303 rotary disc, black anodized aluminium control knob. All other part steel or brass.

Technical Notes

The rotary table can be clamped using a grub screw. it also has a fast adjustment when a grub screw on the side of the disc is released.
Rotating range 0° to infinity.

Product Datasheets

L3339 Manual Rotary StagesJune 19, 2025, 5:03 PM / 233.69 kB

Basic Manual Rotary StagesJune 19, 2025, 4:40 PM / 1.51 MB

Rotary StagesJune 19, 2025, 4:41 PM / 3.75 MB
