Open Linear Carriages
unflanged

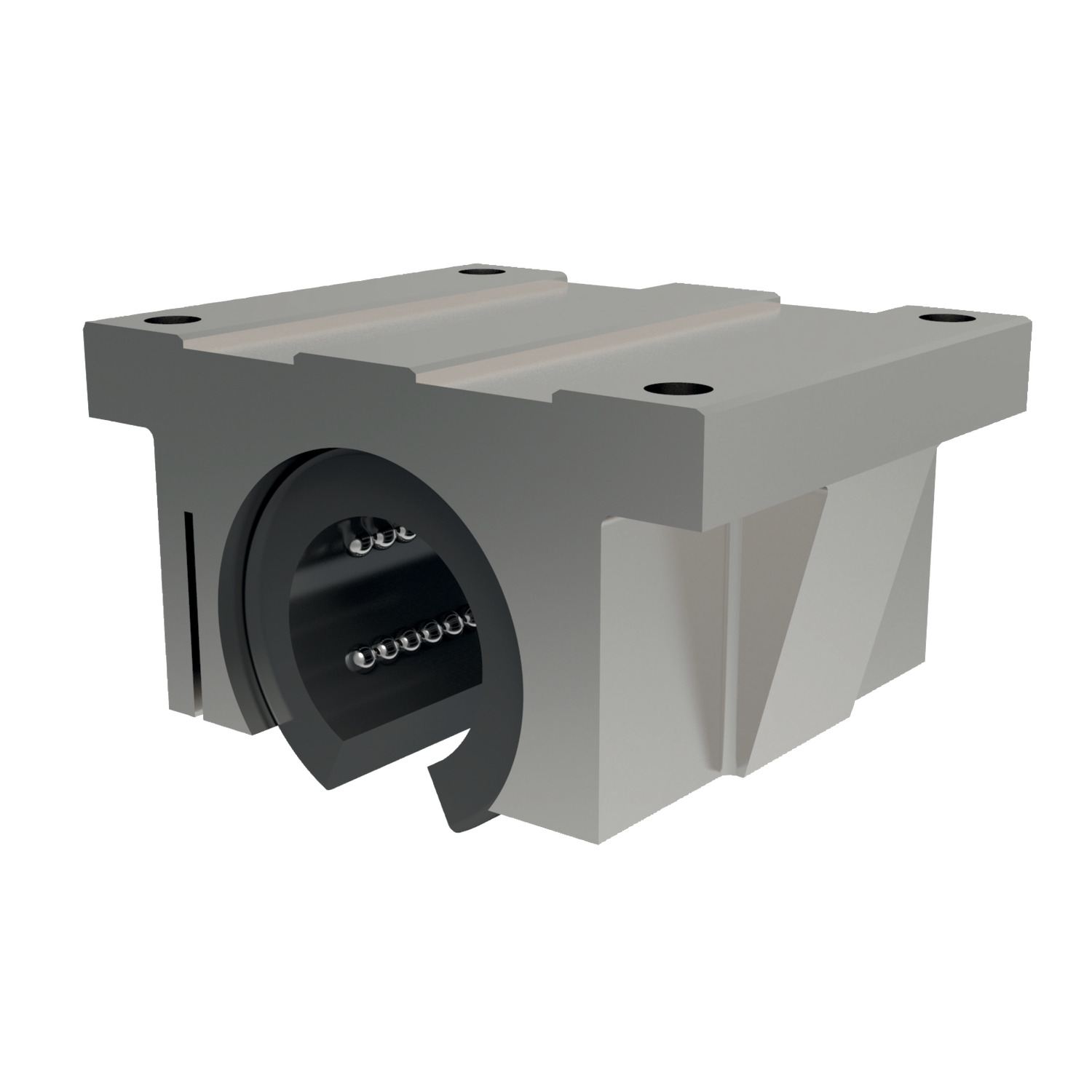

L1756 Stainless Flanged Carriages
open, material: Aluminium
Order No.
L1756.020-RS

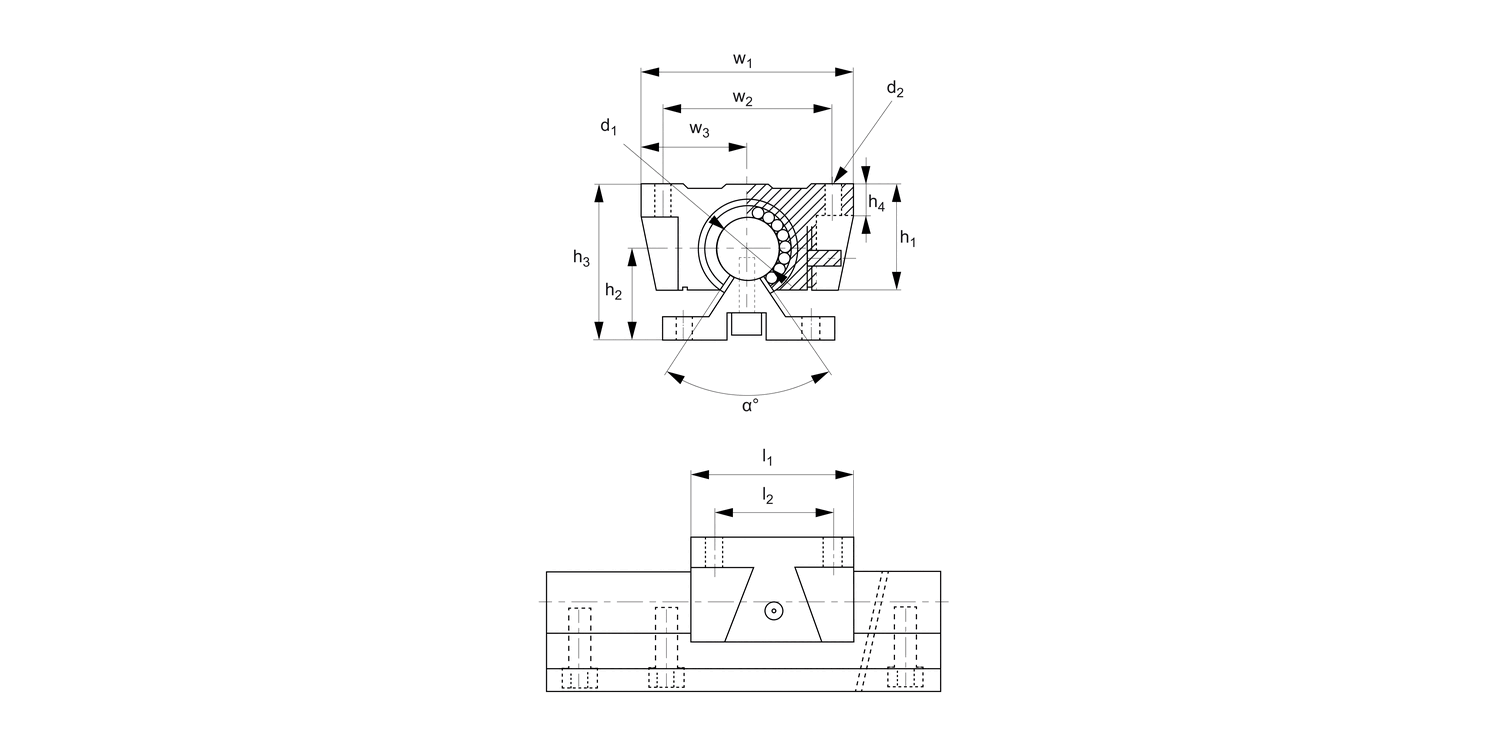

d1
tol. H6
20
l1
51
d2
M6
h1
31
h2
32
h3
±0.05
53
h4
10
l2
±0.2
37
w1
68
w2
±0.2
54
w3
34
α
°
60°
Dyn. load C
max.
N
784
Static load C0
max.
N
1176
Weight
g
300
£ 89.70 per unit (click for quantity discounts)
Ready to despatch 25
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 89.70 | 0% |
| 10-19 | £ 80.73 | 10% |
| 20-49 | £ 76.25 | 15% |
| 50-99 | £ 71.76 | 20% |
| 100+ | £ 62.79 | 30% |
Technical & Application
Material
Aluminium carriage housing with L1710 stainless steel (440C) linear bushing installed.
Bushing has a resin -RS (POM) retainer and nitrile rubber (NBR) end seals -UU.
Stainless steel balls 440C.
Technical Notes
For use with shaft support rails (see part number L1781 with hardened corrosive resistant shaft).
Temperature range: -20°C to +120°C.
Tips
Particularly effective for high loads and long stroke applications.
Important Notes
If using the carriage inverted, ie hanging loads, then the load rating is reduced by 50%.
