L1029 Crossed Roller Slides

Name: L1029.127-175
Brand: WC
SKU: L1029.127-175

precision, material: Aluminium

Article properties

Order No.

L1029.127-175

Stroke

175

Load max. kg

118

w₁

127

l₁

228.6

h₁

25.4

l₂

200

l₃

200

l₄

100

w₂

100

h₂

15.5

w₃

6.2

Weight g

1928

h₃

6.2

d₁

d₂

7.1

d₃

Moment M_x max. Nm

23.0

Moment M_y max. Nm

92.8

Moment M_z max. Nm

97.4

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium carriage and base.
Hardened stainless steel rollers, shafts and preload gibs.

Technical Notes

Straight line accuracy: 3µ/25mm of travel.
Positional repeatability: 1µ.
Coefficient of friction: 0,002.

Tips

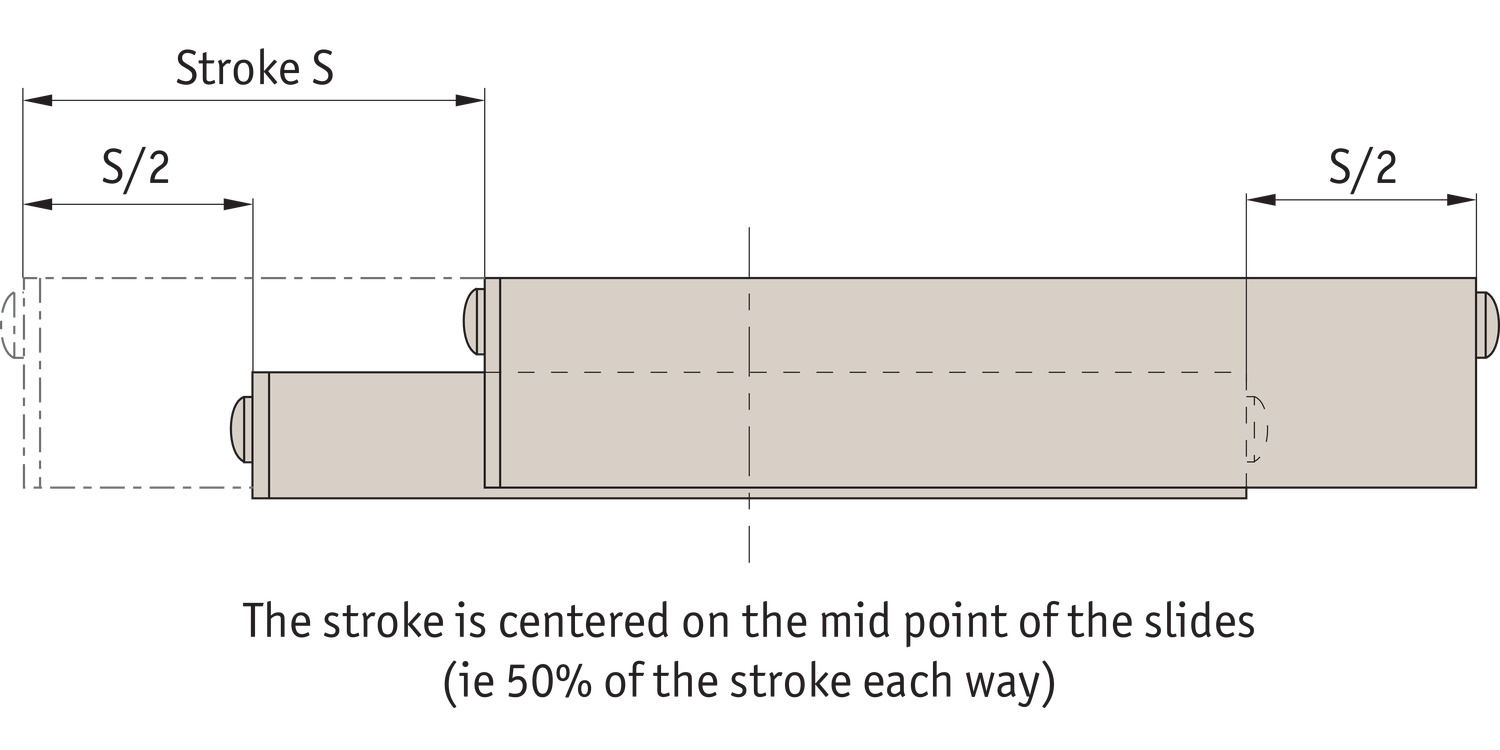

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
