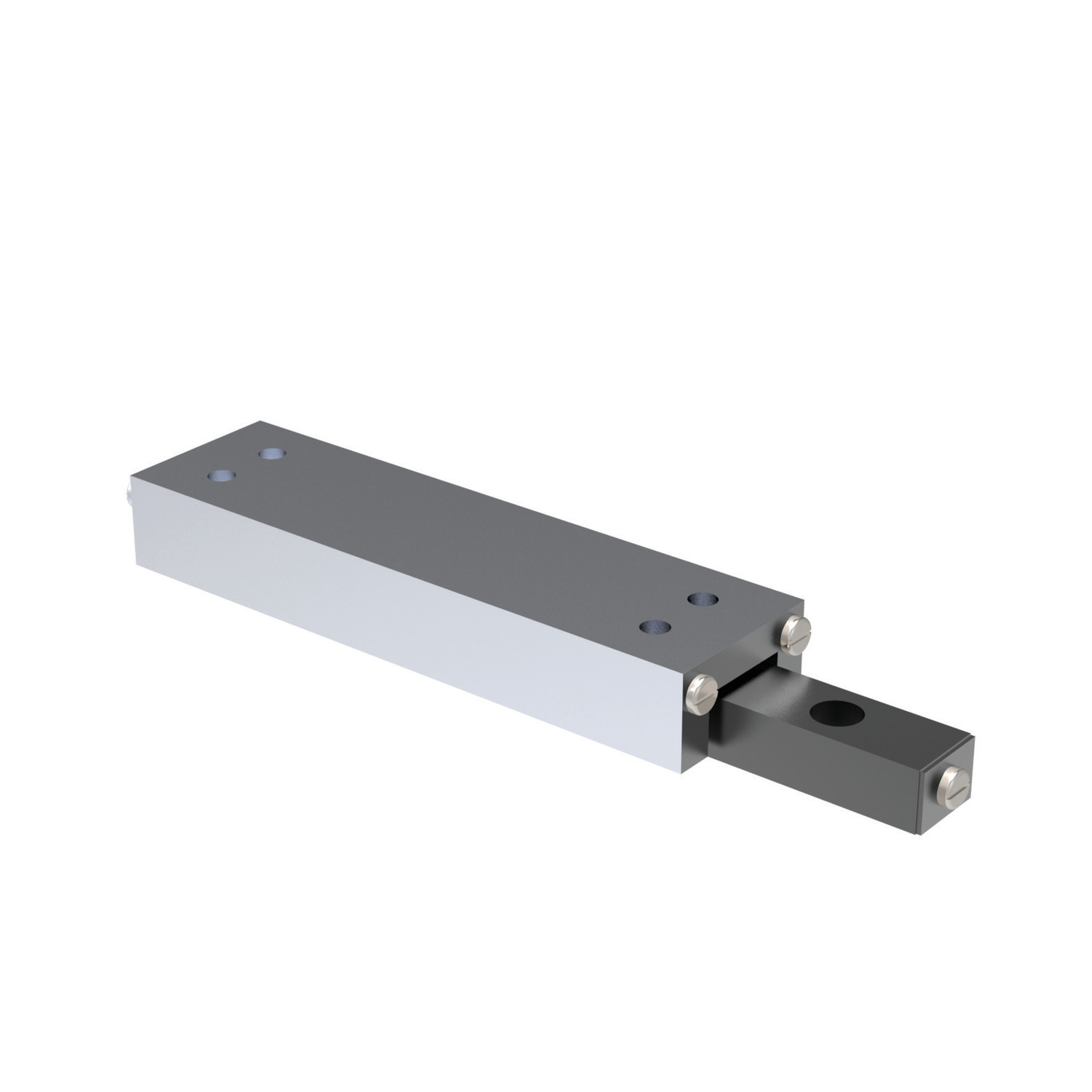

L1029 Crossed Roller Slides
precision, material: Aluminium

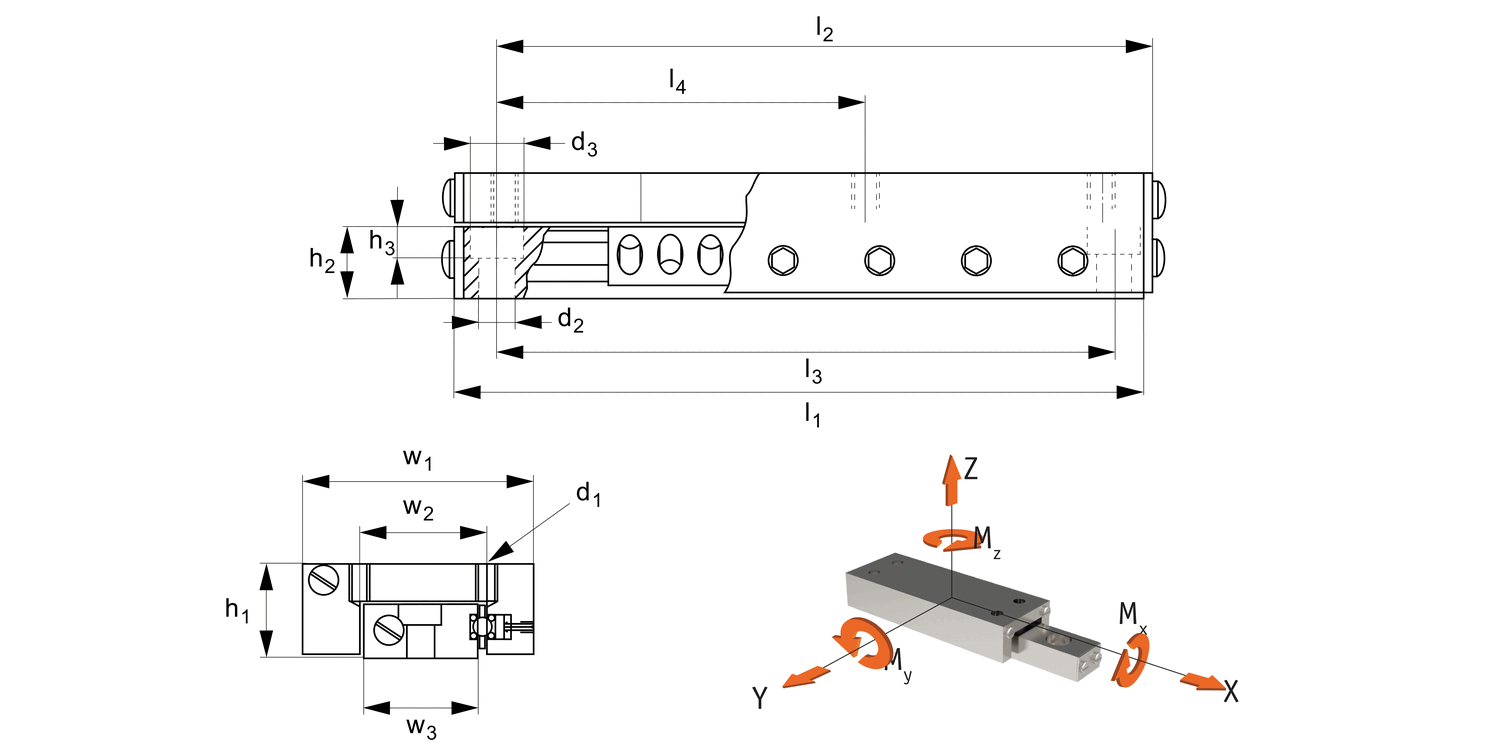

Order No.
L1029.045-100
Stroke
100
Load
max.
kg
64
w1
44.5
l1
127.0
h1
19.0
l2
115
l3
115
l4
-
w2
20
h2
10.2
w3
22.1
Weight
g
286
h3
4.6
d1
M4
d2
4.6
d3
8.1
Moment Mx
max.
Nm
7.7
Moment My
max.
Nm
12.1
Moment Mz
max.
Nm
12.7
£ 253.70 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 253.70 | 0% |
| 5-9 | £ 228.33 | 10% |
| 10-19 | £ 215.65 | 15% |
| 20-49 | £ 190.28 | 25% |
| 50+ | £ 164.91 | 35% |
Technical & Application
Material
Aluminium carriage and base.
Hardened stainless steel rollers, shafts and preload gibs.
Technical Notes
Straight line accuracy: 3µ/25mm of travel.
Positional repeatability: 1µ.
Coefficient of friction: 0,002.
Tips
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
