L1028 Ball Slide Assemblies

Name: L1028.127-175
Brand: WC
SKU: L1028.127-175
Price: 690 EUR
Availability: OutOfStock

precision, material: Aluminium

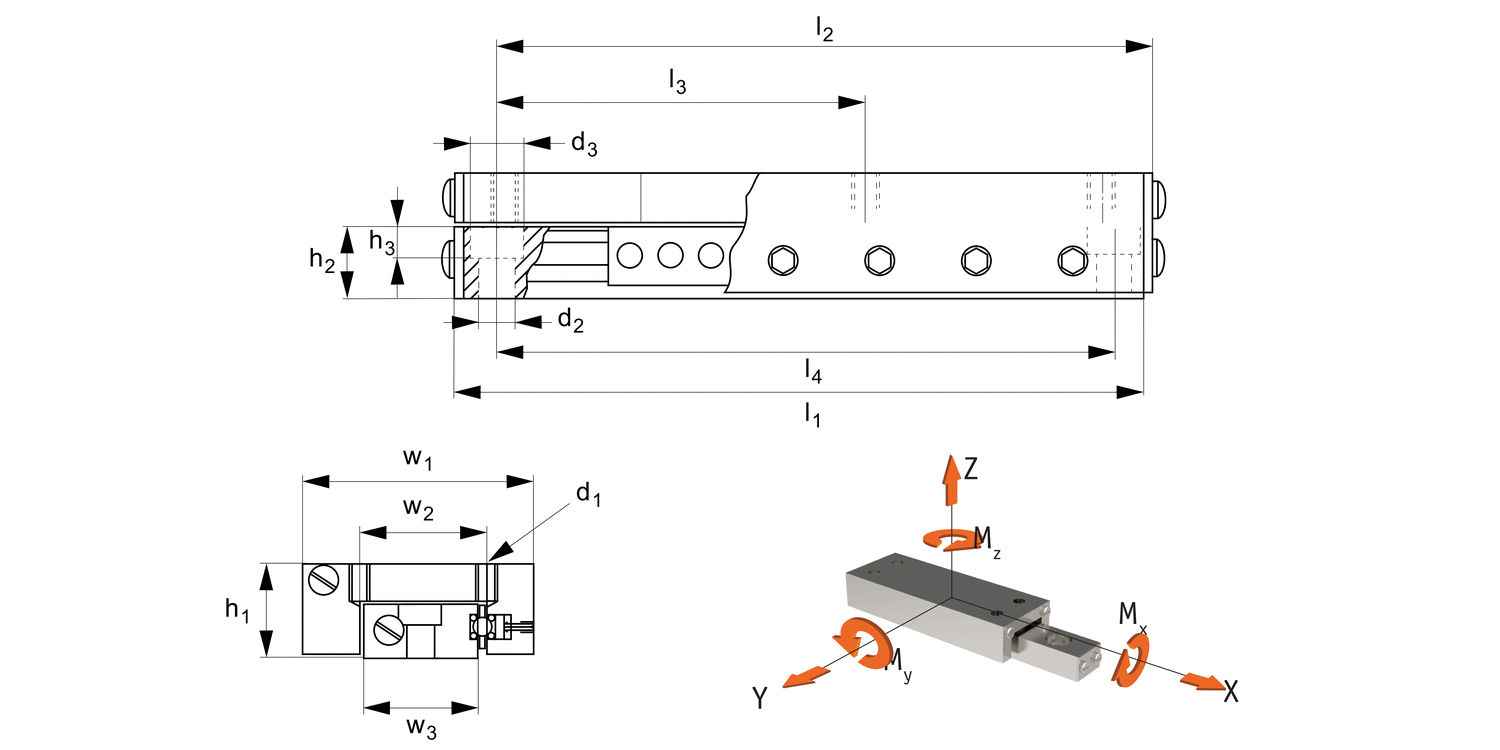

Article properties

Order No.

L1028.127-175

Stroke

175

Load max. kg

77.0

w₁

127.0

l₁

228.6

h₁

25.4

l₂

200

l₃

100

l₄

200

w₂

100

h₂

15.5

w₃

98.3

Weight g

1928

h₃

6.2

d₁

7.1

d₂

d₃

Moment M_x max. Nm

17.8

Moment M_y max. Nm

71.0

Moment M_z max. Nm

74.5

See full product selection

£ 690.00 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 690.00	0%
5-9	£ 621.00	10%
10-19	£ 586.50	15%
20-49	£ 517.50	25%
50+	£ 448.50	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium carriage and base.
Hardened stainless steel balls, shafts and preload gibs.

Technical Notes

Straight line accuracy: 3µ/25mm of travel.
Positional repeatability: 1µ.
Coefficient of friction: 0,002.

Tips

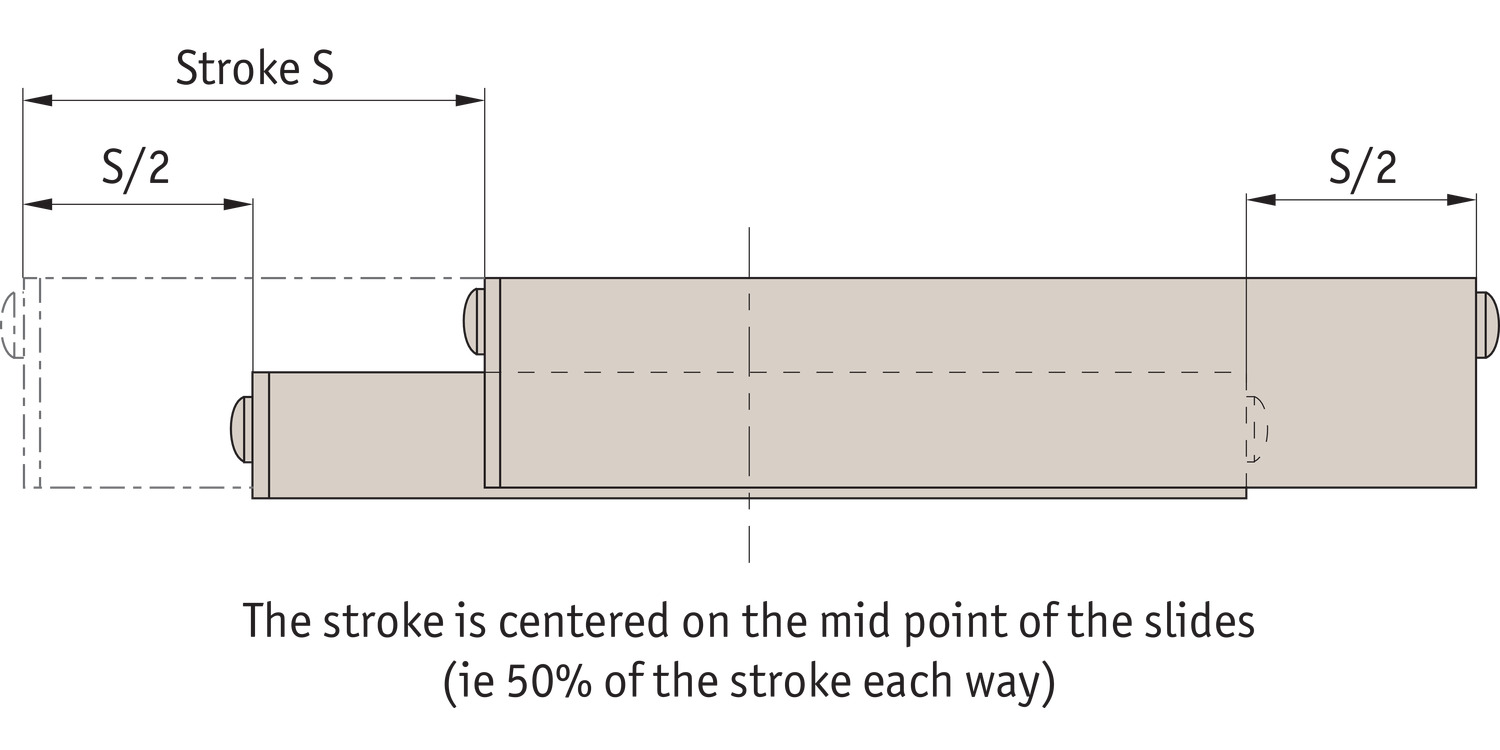

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
