Crossed Roller Tables
steel
L1021 Crossed Roller Tables
aluminium, material: Aluminium
Order No.
L1021.060-130
Static load C0
max.
kN
12.1
Stroke
75
Roller dia.
3.0

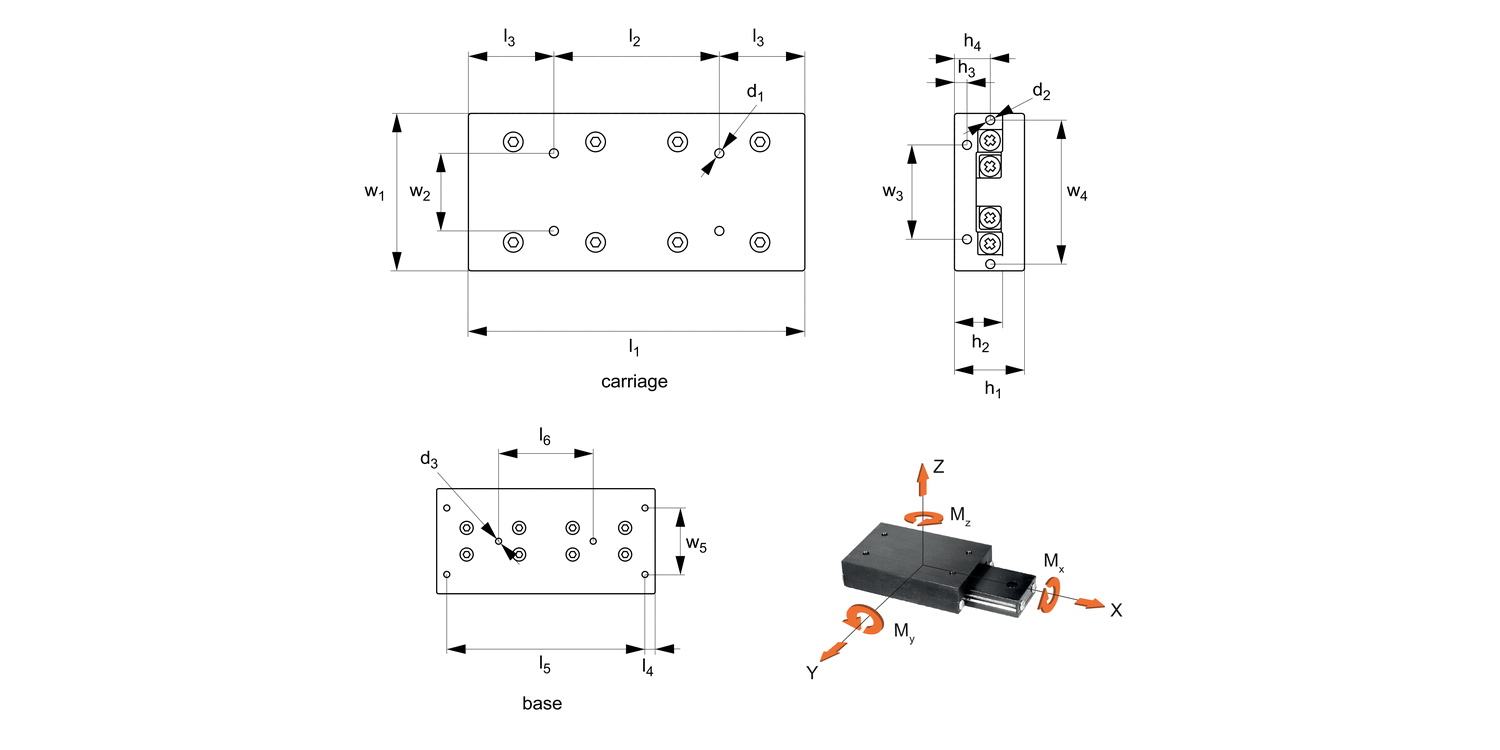

w1
±0.1
60
l2
25
h1
±0.1
28
h2
18.5
l1
130
w2
25
d1
M4x8
l3
27.5
l4
10.0
w3
40
Weight
kg
1.57
w4
-
l5
110
h3
5.5
l6
-
h4
-
d2
M3x6
w7
40
d3
8.0
Dyn. load C
max.
kN
6.2
Allowable load
kN
4.0
Moment Mx
max.
Nm
113
Moment My
max.
Nm
162
Moment Mz
max.
Nm
172
£ 443.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 443.40 | 0% |
| 5-9 | £ 399.06 | 10% |
| 10-19 | £ 376.89 | 15% |
| 20-49 | £ 332.55 | 25% |
| 50+ | £ 288.21 | 35% |
Technical & Application
Material
Body aluminium alloy, black anodised. Rail and rollers carbon steel (100Cr6), retainer stainless steel (AISI 304).
Technical Notes
Base and carriage with standard hole pattern. The top can be machined as required, taking care to disassemble first and ensure no dirt ingress.
Alternatively we can machine any extra holes required (additional cost).
Recommended allowable load is 1/3 of max. static load giving a safety factor of over 3.
Tips
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
