Needle Roller Rails
M type rails

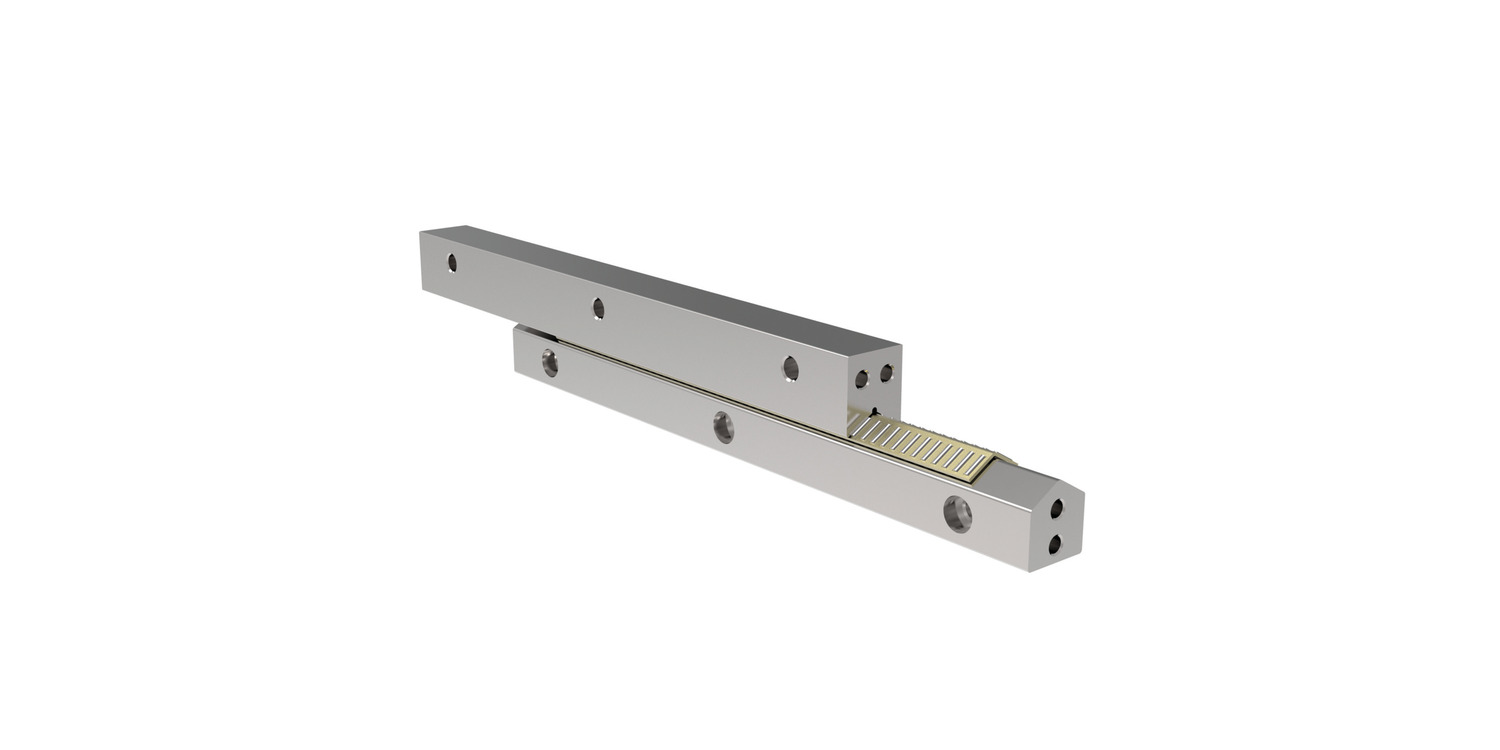

L1004.M Needle Roller Rail Sets - M rail
high load capacity, material: Steel
Order No.
L1004.M45-1000
Rail type
M
h1
+0|-0.3
78
w1
45
l1
1000
l2
100
l3
50
h2
45
h3
45
h4
25
h5
14
w2
12.2
d1
3.5
d2
M14
d3
12.5
d4
18.5
Weight
kg
12.37
£ 2,515.94 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 2,515.94 | 0% |
| 5-9 | £ 2,264.35 | 10% |
| 10-19 | £ 2,138.55 | 15% |
| 20-49 | £ 1,886.96 | 25% |
| 50+ | £ 1,635.36 | 35% |
Technical & Application
Material
Hardened steel alloy (DIN 1.2842), hardness 60±2 HRC.
Technical Notes
Normally supplied in a set of 4 (two M and two V) with needle rollers in aluminium cage - (cage length required needs to be specified), with GM end stops.
M and V type rails do not need to be of same length.
Tips
For specific length needle roller cages (aluminium HW type normally used) and end stops please see technical pages.
Needle roller rails have a higher load rating than cross roller rails (L1000). The length of the cage affects both the stroke of the rail and it's load carrying capacity see technical pages.
Product Datasheets
CAD files
Application images
