Hammer Drive Pins
Stainless steel

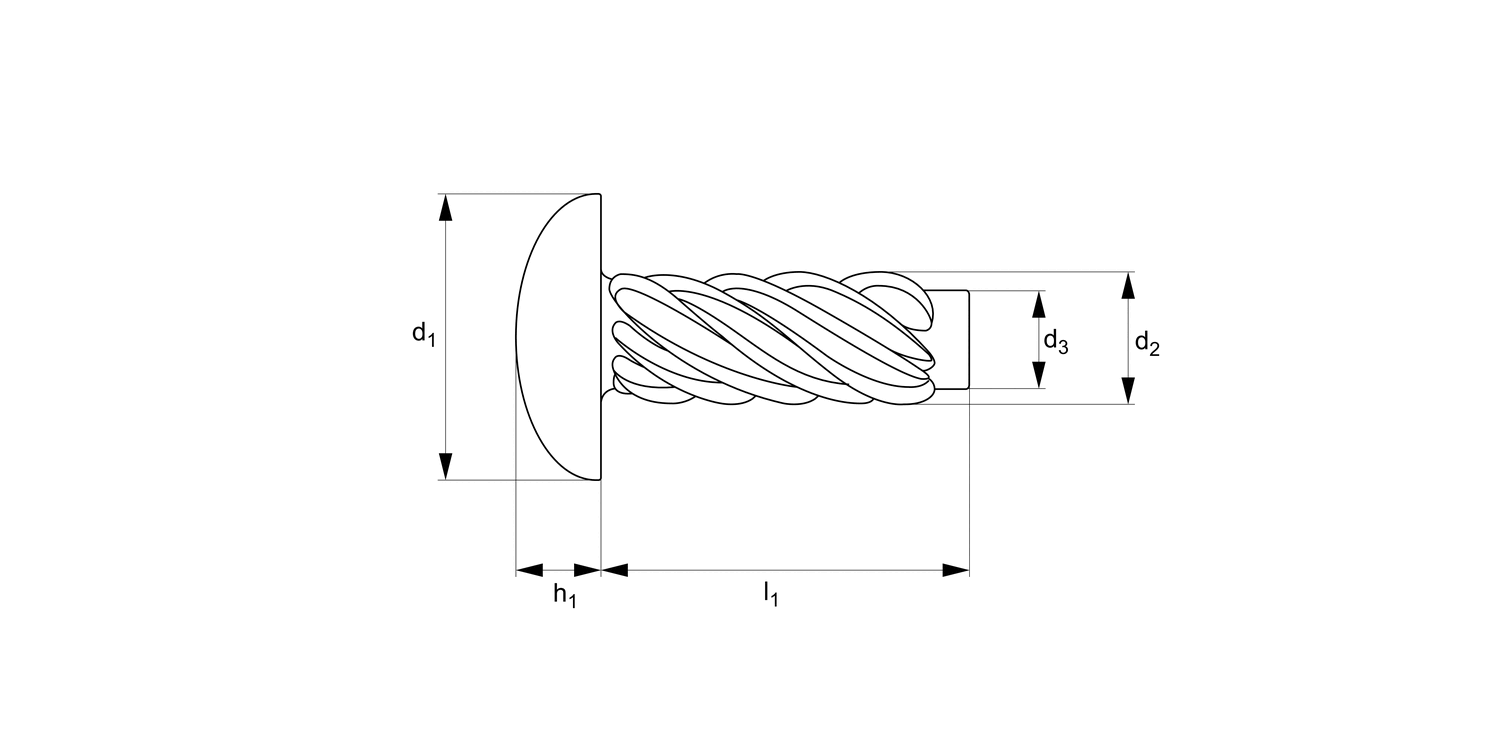

P1245.A2 Hammer Drive Pins
stainless steel, material: A2 stainless
Alternative products you may wish to consider
£ 0.05 per unit (click for quantity discounts)
d1
max.
3.2
d2
max.
1.9
d3
max.
1.60
l1
4.50
h1
max.
1.24
d4
1.65
d5
1.75
£ 0.04 per unit (click for quantity discounts)
£ 0.10 per unit (click for quantity discounts)
£ 0.12 per unit (click for quantity discounts)
d1
max.
4.1
d2
max.
2.5
d3
max.
2.10
l1
6.50
h1
max.
1.75
d4
2.20
d5
2.30
£ 0.05 per unit (click for quantity discounts)
£ 0.04 per unit (click for quantity discounts)
£ 1.07 per unit (click for quantity discounts)
£ 0.18 per unit (click for quantity discounts)
d1
max.
d2
max.
d3
max.
l1
h1
max.
d4
d5
| Price & Availability | Article | d1 max. | d2 max. | d3 max. | l1 | h1 max. | d4 | d5 | |||||||||||||||||||||
| P1245.015-030-A2 | 2.5 | 1.5 | 1.25 | 3.25 | 0.86 | 1.30 | 1.40 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 2.5 d2
max. 1.5 d3
max. 1.25 l1 3.25 h1
max. 0.86 d4 1.30 d5 1.40 | |||||||||||||||||||||||||||||
| P1245.015-045-A2 | 2.5 | 1.5 | 1.25 | 4.50 | 0.86 | 1.30 | 1.40 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 2.5 d2
max. 1.5 d3
max. 1.25 l1 4.50 h1
max. 0.86 d4 1.30 d5 1.40 | |||||||||||||||||||||||||||||
| P1245.015-065-A2 | 2.5 | 1.5 | 1.25 | 6.50 | 0.86 | 1.30 | 1.40 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 2.5 d2
max. 1.5 d3
max. 1.25 l1 6.50 h1
max. 0.86 d4 1.30 d5 1.40 | |||||||||||||||||||||||||||||
| P1245.015-080-A2 | 2.5 | 1.5 | 1.25 | 8.00 | 0.86 | 1.30 | 1.40 | ||||||||||||||||||||||
£ 0.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 2.5 d2
max. 1.5 d3
max. 1.25 l1 8.00 h1
max. 0.86 d4 1.30 d5 1.40 | |||||||||||||||||||||||||||||
| P1245.015-095-A2 | 2.5 | 1.5 | 1.25 | 9.50 | 0.86 | 1.30 | 1.40 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 2.5 d2
max. 1.5 d3
max. 1.25 l1 9.50 h1
max. 0.86 d4 1.30 d5 1.40 | |||||||||||||||||||||||||||||
| P1245.019-030-A2 | 3.2 | 1.9 | 1.60 | 3.25 | 1.24 | 1.65 | 1.75 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 3.2 d2
max. 1.9 d3
max. 1.60 l1 3.25 h1
max. 1.24 d4 1.65 d5 1.75 | |||||||||||||||||||||||||||||
| P1245.019-045-A2 | 3.2 | 1.9 | 1.60 | 4.50 | 1.24 | 1.65 | 1.75 | ||||||||||||||||||||||
£ 0.04 per unit (click for quantity discounts) Ready to despatch 2272 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 3.2 d2
max. 1.9 d3
max. 1.60 l1 4.50 h1
max. 1.24 d4 1.65 d5 1.75 | |||||||||||||||||||||||||||||
| P1245.019-065-A2 | 3.2 | 1.9 | 1.60 | 6.50 | 1.24 | 1.65 | 1.75 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 3.2 d2
max. 1.9 d3
max. 1.60 l1 6.50 h1
max. 1.24 d4 1.65 d5 1.75 | |||||||||||||||||||||||||||||
| P1245.019-080-A2 | 3.2 | 1.9 | 1.60 | 8.00 | 1.24 | 1.65 | 1.75 | ||||||||||||||||||||||
£ 0.10 per unit (click for quantity discounts) Ready to despatch 245 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 3.2 d2
max. 1.9 d3
max. 1.60 l1 8.00 h1
max. 1.24 d4 1.65 d5 1.75 | |||||||||||||||||||||||||||||
| P1245.019-095-A2 | 3.2 | 1.9 | 1.60 | 9.50 | 1.24 | 1.65 | 1.75 | ||||||||||||||||||||||
£ 0.12 per unit (click for quantity discounts) Ready to despatch 1003 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 3.2 d2
max. 1.9 d3
max. 1.60 l1 9.50 h1
max. 1.24 d4 1.65 d5 1.75 | |||||||||||||||||||||||||||||
| P1245.025-030-A2 | 4.1 | 2.5 | 2.10 | 3.25 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 3.25 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.025-045-A2 | 4.1 | 2.5 | 2.10 | 4.50 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 4.50 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.025-065-A2 | 4.1 | 2.5 | 2.10 | 6.50 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
£ 0.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 6.50 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.025-080-A2 | 4.1 | 2.5 | 2.10 | 8.00 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 8.00 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.025-095-A2 | 4.1 | 2.5 | 2.10 | 9.50 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 9.50 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.025-130-A2 | 4.1 | 2.5 | 2.10 | 13.00 | 1.75 | 2.20 | 2.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 4.1 d2
max. 2.5 d3
max. 2.10 l1 13.00 h1
max. 1.75 d4 2.20 d5 2.30 | |||||||||||||||||||||||||||||
| P1245.029-045-A2 | 5.4 | 2.9 | 2.44 | 4.50 | 2.18 | 2.55 | 2.70 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 5.4 d2
max. 2.9 d3
max. 2.44 l1 4.50 h1
max. 2.18 d4 2.55 d5 2.70 | |||||||||||||||||||||||||||||
| P1245.029-065-A2 | 5.4 | 2.9 | 2.44 | 6.50 | 2.18 | 2.55 | 2.70 | ||||||||||||||||||||||
£ 0.04 per unit (click for quantity discounts) Ready to despatch 660 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 5.4 d2
max. 2.9 d3
max. 2.44 l1 6.50 h1
max. 2.18 d4 2.55 d5 2.70 | |||||||||||||||||||||||||||||
| P1245.029-080-A2 | 5.4 | 2.9 | 2.44 | 8.00 | 2.18 | 2.55 | 2.70 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 5.4 d2
max. 2.9 d3
max. 2.44 l1 8.00 h1
max. 2.18 d4 2.55 d5 2.70 | |||||||||||||||||||||||||||||
| P1245.029-095-A2 | 5.4 | 2.9 | 2.44 | 9.50 | 2.18 | 2.55 | 2.70 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 5.4 d2
max. 2.9 d3
max. 2.44 l1 9.50 h1
max. 2.18 d4 2.55 d5 2.70 | |||||||||||||||||||||||||||||
| P1245.035-065-A2 | 6.6 | 3.5 | 2.95 | 6.50 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 6.50 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.035-080-A2 | 6.6 | 3.5 | 2.95 | 8.00 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 8.00 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.035-095-A2 | 6.6 | 3.5 | 2.95 | 9.50 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
£ 1.07 per unit (click for quantity discounts) Ready to despatch 590 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 9.50 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.035-130-A2 | 6.6 | 3.5 | 2.95 | 13.00 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 13.00 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.035-160-A2 | 6.6 | 3.5 | 2.95 | 16.00 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 16.00 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.035-190-A2 | 6.6 | 3.5 | 2.95 | 19.00 | 2.62 | 3.10 | 3.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 6.6 d2
max. 3.5 d3
max. 2.95 l1 19.00 h1
max. 2.62 d4 3.10 d5 3.30 | |||||||||||||||||||||||||||||
| P1245.042-065-A2 | 7.9 | 4.2 | 3.45 | 6.50 | 3.05 | 3.70 | 3.90 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 7.9 d2
max. 4.2 d3
max. 3.45 l1 6.50 h1
max. 3.05 d4 3.70 d5 3.90 | |||||||||||||||||||||||||||||
| P1245.042-080-A2 | 7.9 | 4.2 | 3.45 | 8.00 | 3.05 | 3.70 | 3.90 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 7.9 d2
max. 4.2 d3
max. 3.45 l1 8.00 h1
max. 3.05 d4 3.70 d5 3.90 | |||||||||||||||||||||||||||||
| P1245.042-095-A2 | 7.9 | 4.2 | 3.45 | 9.50 | 3.05 | 3.70 | 3.90 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 7.9 d2
max. 4.2 d3
max. 3.45 l1 9.50 h1
max. 3.05 d4 3.70 d5 3.90 | |||||||||||||||||||||||||||||
| P1245.042-130-A2 | 7.9 | 4.2 | 3.45 | 13.00 | 3.05 | 3.70 | 3.90 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 7.9 d2
max. 4.2 d3
max. 3.45 l1 13.00 h1
max. 3.05 d4 3.70 d5 3.90 | |||||||||||||||||||||||||||||
| P1245.048-095-A2 | 9.1 | 4.8 | 3.81 | 9.50 | 3.48 | 4.10 | 4.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1
max. 9.1 d2
max. 4.8 d3
max. 3.81 l1 9.50 h1
max. 3.48 d4 4.10 d5 4.30 | |||||||||||||||||||||||||||||
| P1245.048-130-A2 | 9.1 | 4.8 | 3.81 | 13.00 | 3.48 | 4.10 | 4.30 | ||||||||||||||||||||||
£ 0.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
max. 9.1 d2
max. 4.8 d3
max. 3.81 l1 13.00 h1
max. 3.48 d4 4.10 d5 4.30 | |||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (A2, AISI 303).
Technical Notes
For recommended hole size in thin metals, non-ferrous castings, aluminium and plastics refer to dimension d4.
For recommended hole size in cast iron and thick sheet metal refer to dimension d5.
