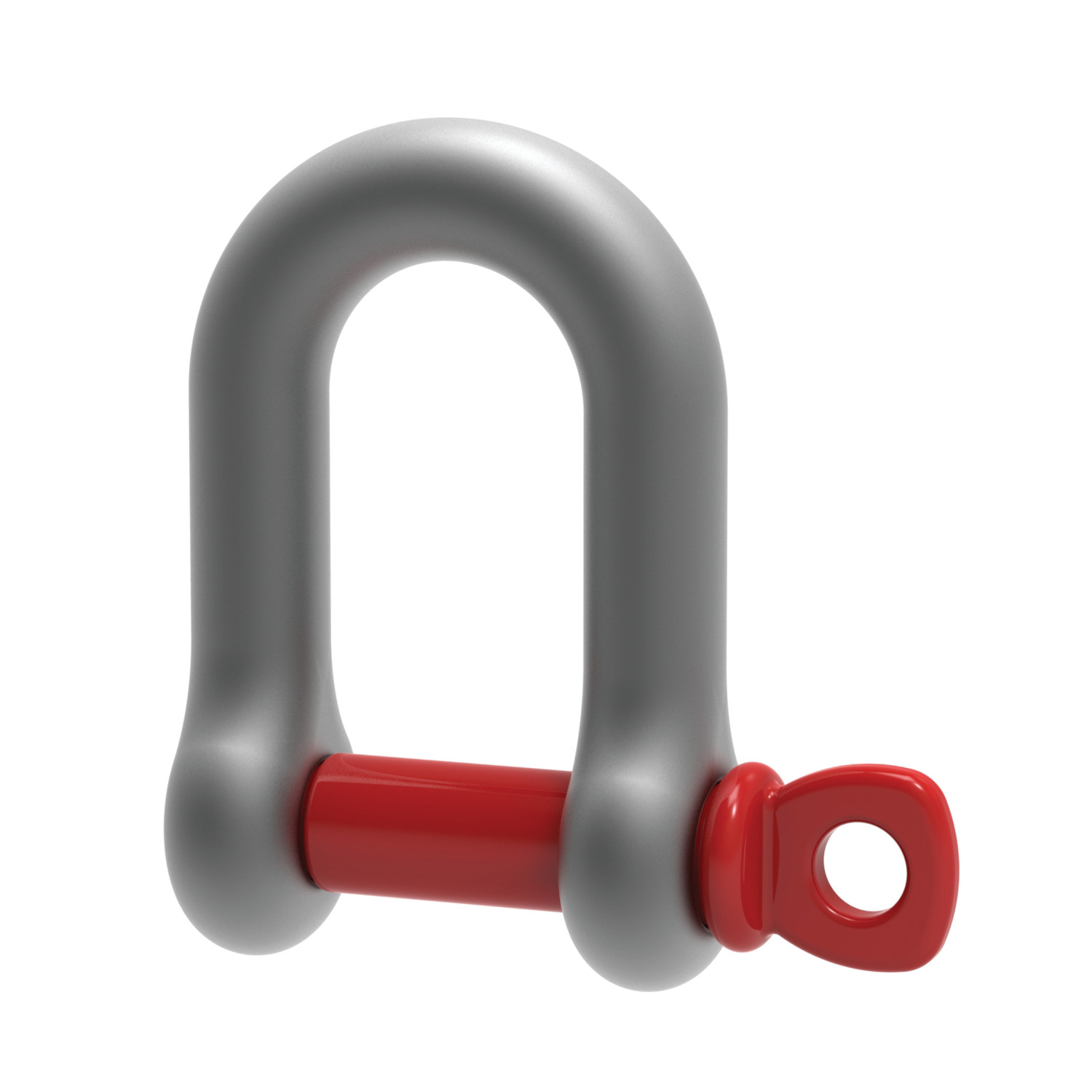

Steel Shackles
P4096 High-tensile Steel Shackles
material: Steel

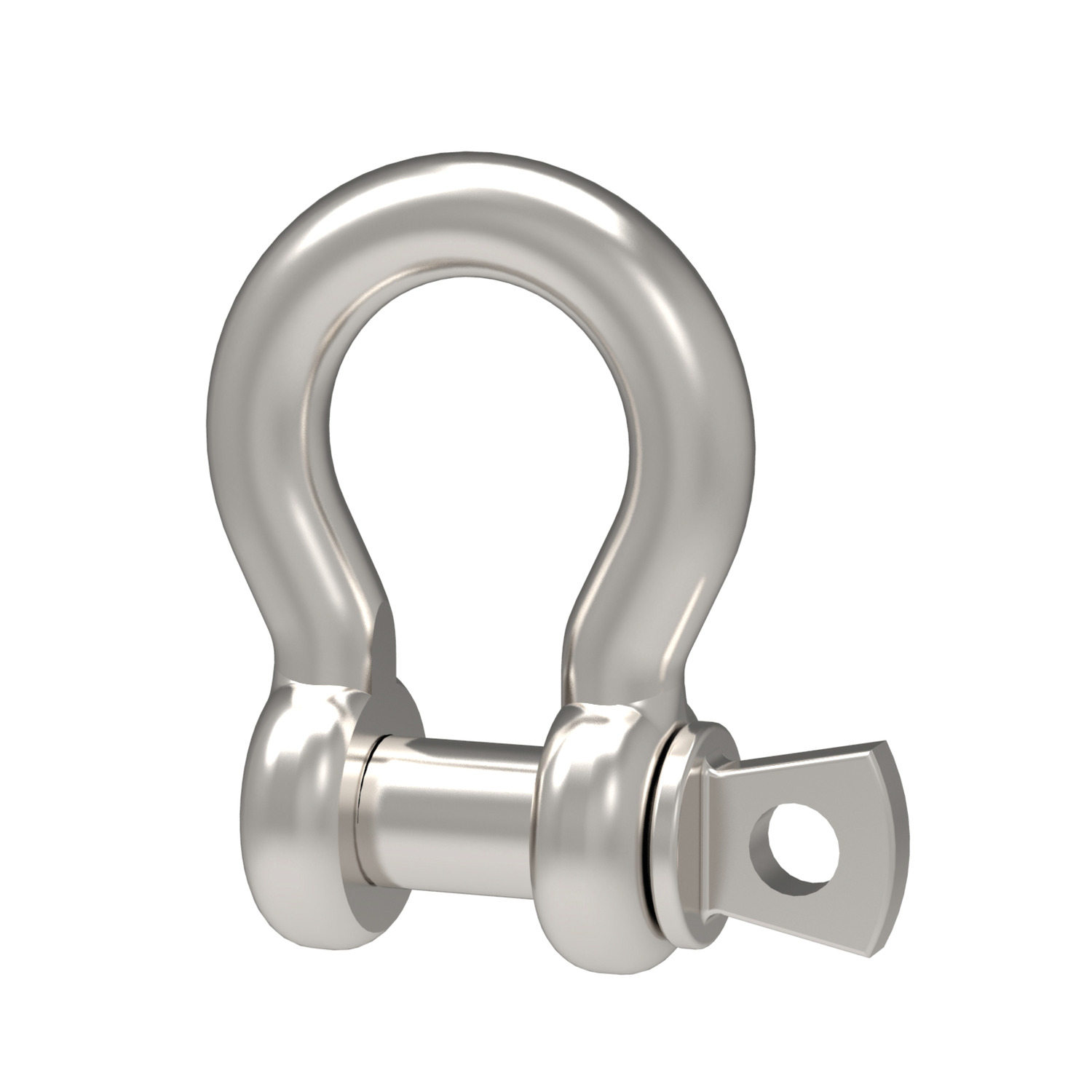

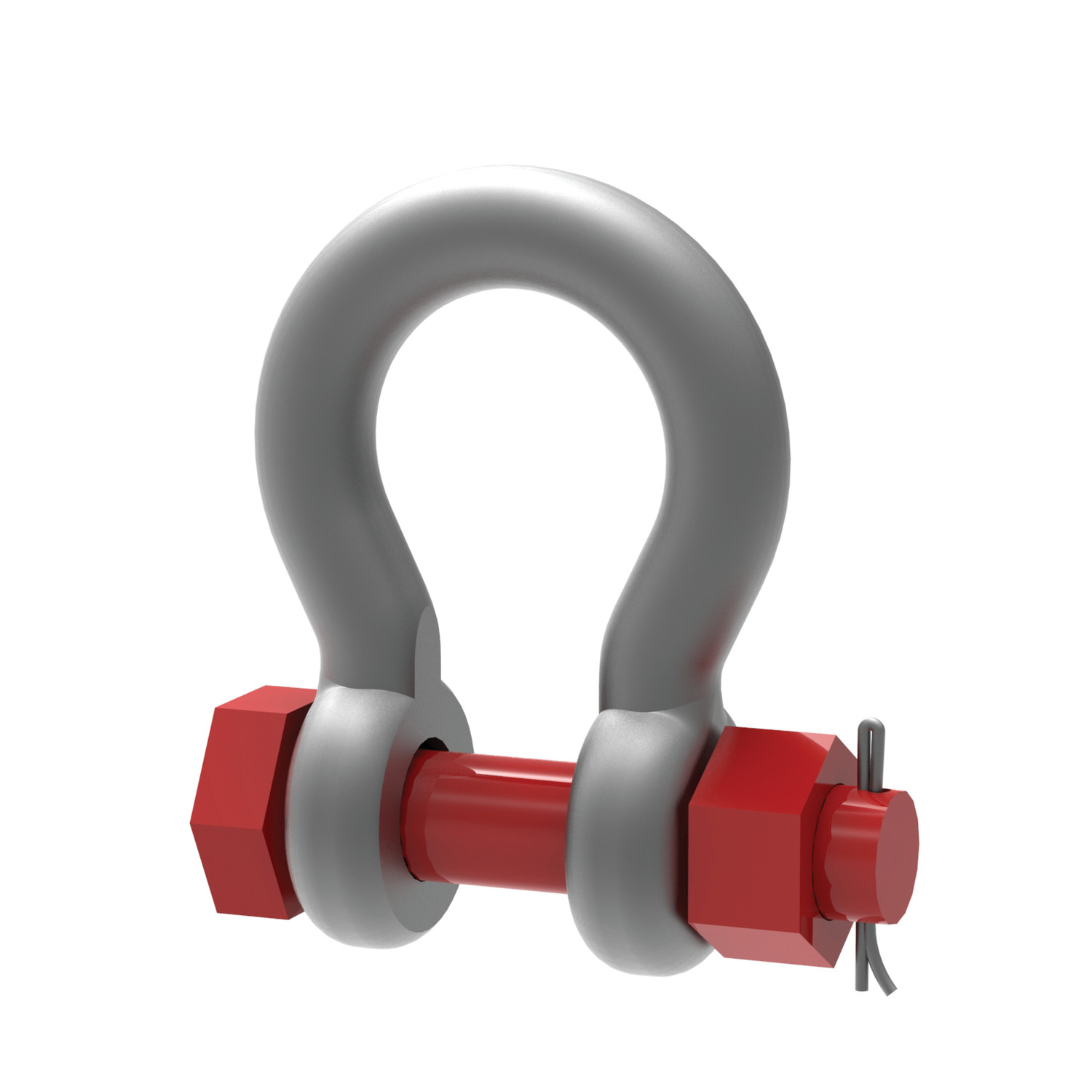

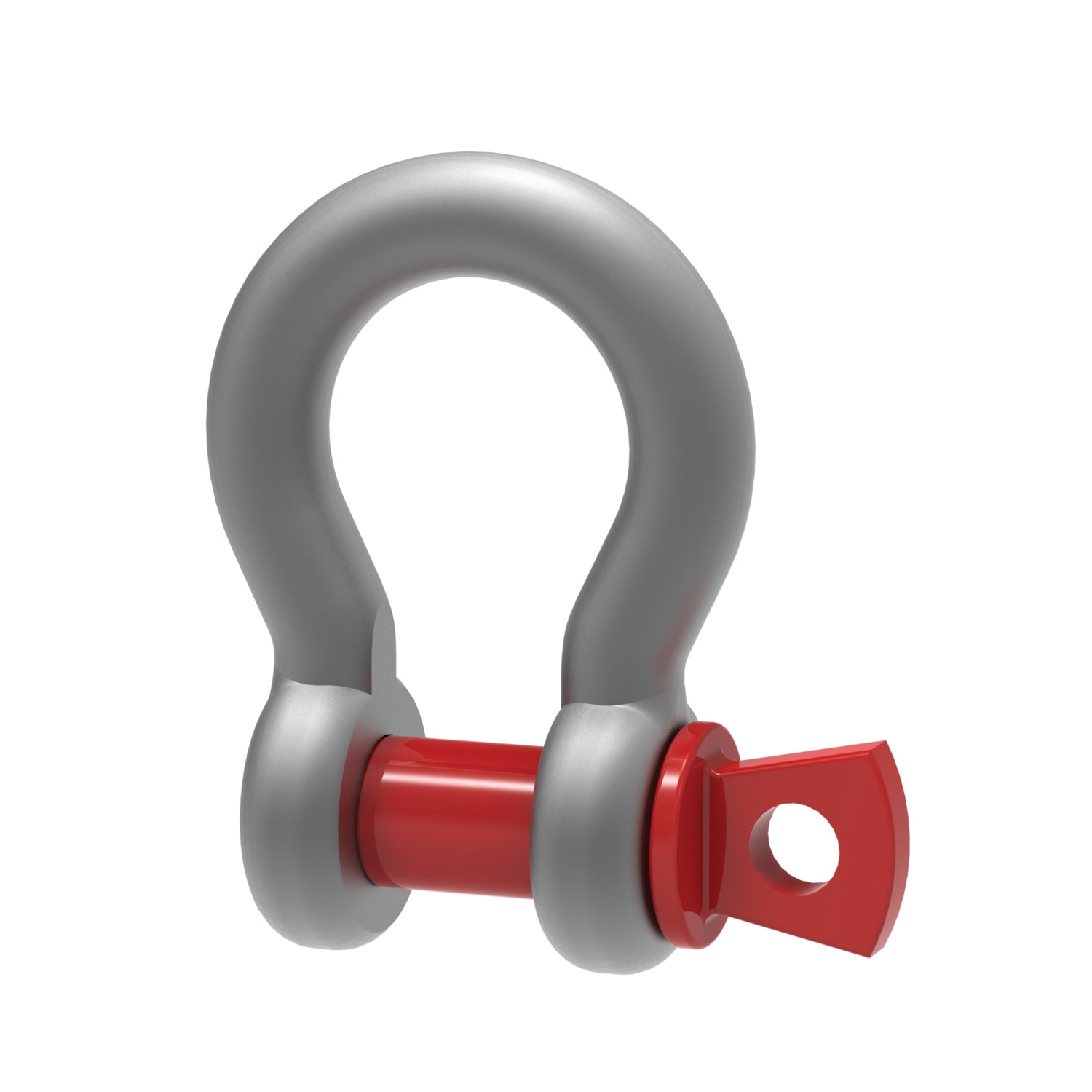

Alternative products you may wish to consider
£ 9.71 per unit (click for quantity discounts)
£ 11.46 per unit (click for quantity discounts)
£ 21.25 per unit (click for quantity discounts)
£ 63.33 per unit (click for quantity discounts)
£ 63.73 per unit (click for quantity discounts)

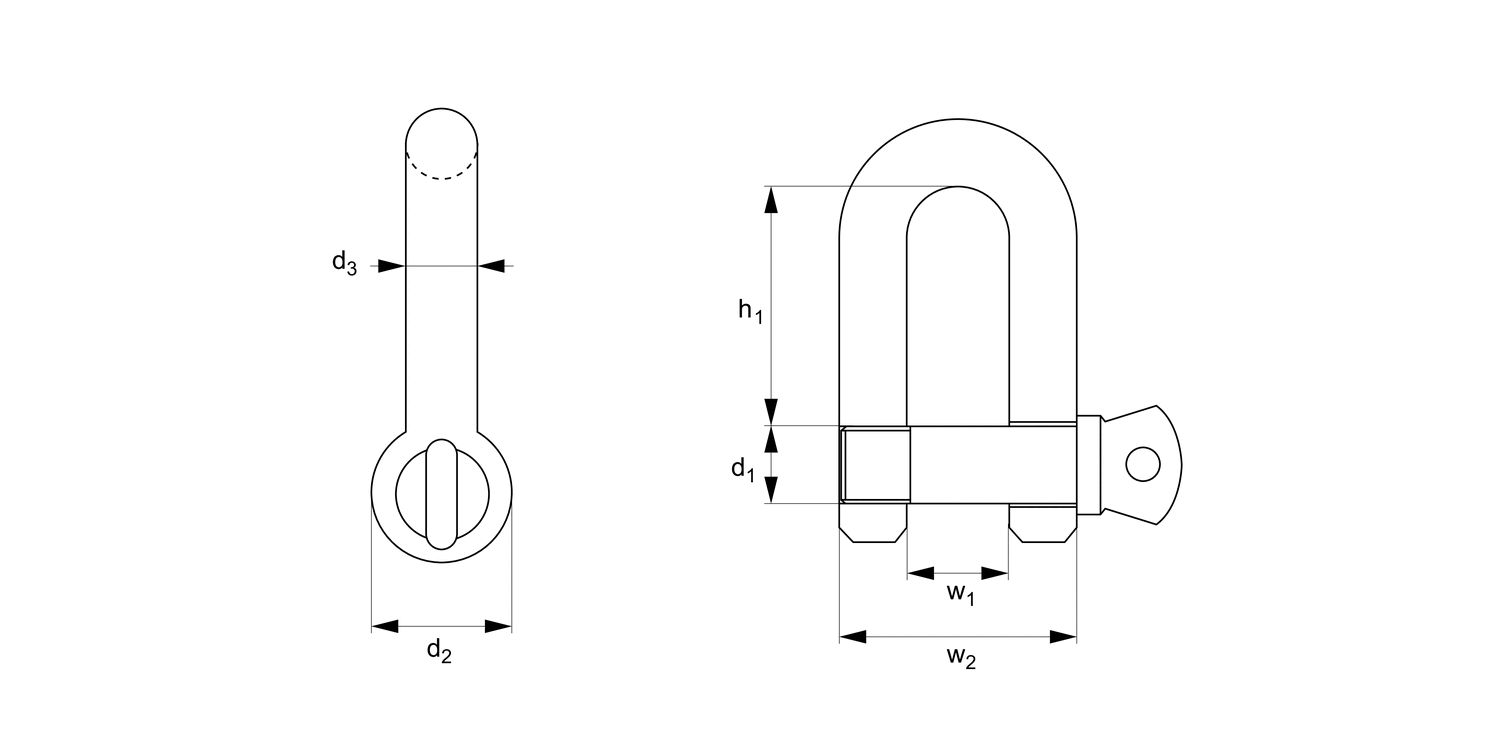

d1
d2
d3
h1
w1
w2
Load
max.
kg
Weight
kg
| Price & Availability | Article | d1 | d2 | d3 | h1 | w1 | w2 | Load max. kg | Weight kg | |||||||||||||||||||||
| P4096.06 | 6 | 12 | 5 | 20 | 9 | 24 | 330 | 0.02 | ||||||||||||||||||||||
Ready to despatch 50 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 6 d2 12 d3 5 h1 20 w1 9 w2 24 Load
max.
kg 330 Weight
kg 0.02 | ||||||||||||||||||||||||||||||
| P4096.08 | 8 | 17 | 6 | 22 | 12 | 26 | 500 | 0.05 | ||||||||||||||||||||||
£ 9.71 per unit (click for quantity discounts) Ready to despatch 37 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 8 d2 17 d3 6 h1 22 w1 12 w2 26 Load
max.
kg 500 Weight
kg 0.05 | ||||||||||||||||||||||||||||||
| P4096.10 | 10 | 21 | 8 | 26 | 13 | 29 | 750 | 0.08 | ||||||||||||||||||||||
Ready to despatch 49 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 10 d2 21 d3 8 h1 26 w1 13 w2 29 Load
max.
kg 750 Weight
kg 0.08 | ||||||||||||||||||||||||||||||
| P4096.12 | 12 | 26 | 10 | 31 | 16 | 36 | 1000 | 0.13 | ||||||||||||||||||||||
£ 11.46 per unit (click for quantity discounts) Ready to despatch 90 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 12 d2 26 d3 10 h1 31 w1 16 w2 36 Load
max.
kg 1000 Weight
kg 0.13 | ||||||||||||||||||||||||||||||
| P4096.14 | 14 | 28 | 11 | 36 | 18 | 40 | 1500 | 0.19 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 14 d2 28 d3 11 h1 36 w1 18 w2 40 Load
max.
kg 1500 Weight
kg 0.19 | ||||||||||||||||||||||||||||||
| P4096.16 | 16 | 30 | 13 | 41 | 21 | 47 | 2000 | 0.31 | ||||||||||||||||||||||
Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 16 d2 30 d3 13 h1 41 w1 21 w2 47 Load
max.
kg 2000 Weight
kg 0.31 | ||||||||||||||||||||||||||||||
| P4096.20 | 20 | 42 | 16 | 51 | 27 | 59 | 3250 | 0.55 | ||||||||||||||||||||||
£ 21.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 20 d2 42 d3 16 h1 51 w1 27 w2 59 Load
max.
kg 3250 Weight
kg 0.55 | ||||||||||||||||||||||||||||||
| P4096.22 | 22 | 48 | 19 | 60 | 32 | 70 | 4750 | 0.96 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 22 d2 48 d3 19 h1 60 w1 32 w2 70 Load
max.
kg 4750 Weight
kg 0.96 | ||||||||||||||||||||||||||||||
| P4096.27 | 27 | 57 | 22 | 71 | 36 | 80 | 6500 | 1.41 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 27 d2 57 d3 22 h1 71 w1 36 w2 80 Load
max.
kg 6500 Weight
kg 1.41 | ||||||||||||||||||||||||||||||
| P4096.28 | 28 | 62 | 25 | 81 | 43 | 93 | 8500 | 2.03 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 28 d2 62 d3 25 h1 81 w1 43 w2 93 Load
max.
kg 8500 Weight
kg 2.03 | ||||||||||||||||||||||||||||||
| P4096.33 | 33 | 69 | 29 | 90 | 46 | 104 | 9500 | 2.97 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 33 d2 69 d3 29 h1 90 w1 46 w2 104 Load
max.
kg 9500 Weight
kg 2.97 | ||||||||||||||||||||||||||||||
| P4096.36 | 36 | 78 | 32 | 100 | 52 | 116 | 12000 | 4.01 | ||||||||||||||||||||||
£ 63.33 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 36 d2 78 d3 32 h1 100 w1 52 w2 116 Load
max.
kg 12000 Weight
kg 4.01 | ||||||||||||||||||||||||||||||
| P4096.39 | 39 | 86 | 35 | 113 | 57 | 127 | 13500 | 5.40 | ||||||||||||||||||||||
£ 63.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 39 d2 86 d3 35 h1 113 w1 57 w2 127 Load
max.
kg 13500 Weight
kg 5.40 | ||||||||||||||||||||||||||||||
| P4096.42 | 42 | 94 | 38 | 124 | 60 | 136 | 17000 | 7.29 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 42 d2 94 d3 38 h1 124 w1 60 w2 136 Load
max.
kg 17000 Weight
kg 7.29 | ||||||||||||||||||||||||||||||
| P4096.52 | 52 | 112 | 44 | 146 | 73 | 161 | 25000 | 11.25 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 52 d2 112 d3 44 h1 146 w1 73 w2 161 Load
max.
kg 25000 Weight
kg 11.25 | ||||||||||||||||||||||||||||||
| P4096.60 | 60 | 135 | 51 | 171 | 83 | 185 | 35000 | 16.20 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 60 d2 135 d3 51 h1 171 w1 83 w2 185 Load
max.
kg 35000 Weight
kg 16.20 | ||||||||||||||||||||||||||||||
| P4096.72 | 72 | 158 | 63 | 203 | 106 | 232 | 55000 | 33.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 72 d2 158 d3 63 h1 203 w1 106 w2 232 Load
max.
kg 55000 Weight
kg 33.30 | ||||||||||||||||||||||||||||||
Technical & Application
Material
High-tensile steel.
Pin: hot-dip galvanized and lacquered; shackle: hot-dip galvanized.
CE marked.
