Partially Telescopic Slides
size 22
L1994.22 Partially Telescopic Slides
size 22, material: Steel
Alternative products you may wish to consider

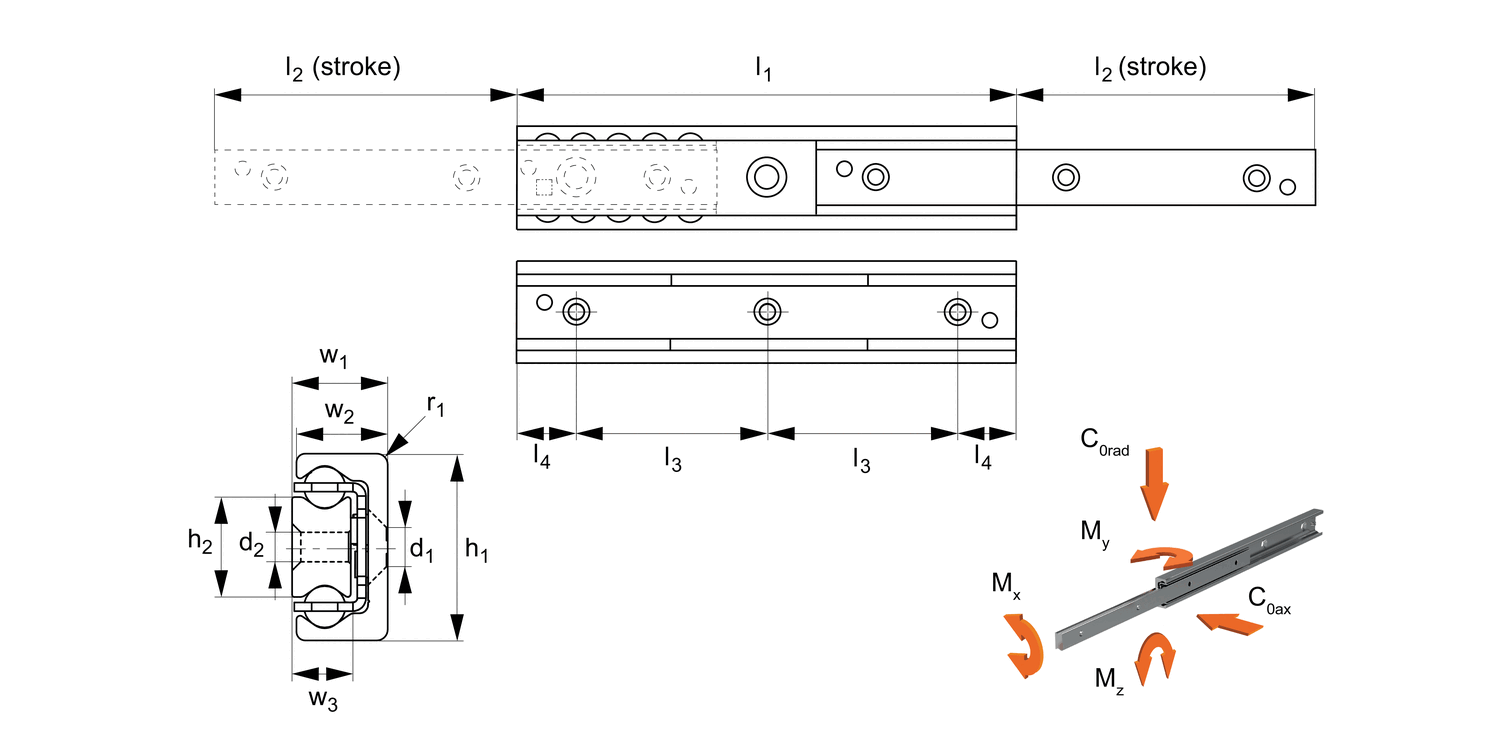

l1
130
l2
76
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
2
Load (per rail) C0 ax
max.
N
219
Load (per rail) C0 rad
max.
N
313
Mx
Nm
5.7
My
Nm
10
Mz
Nm
15
£ 83.80 per unit (click for quantity discounts)
l1
210
l2
111
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
3
Load (per rail) C0 ax
max.
N
501
Load (per rail) C0 rad
max.
N
715
Mx
Nm
10.7
My
Nm
36
Mz
Nm
51
£ 107.23 per unit (click for quantity discounts)
l1
290
l2
154
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
4
Load (per rail) C0 ax
max.
N
696
Load (per rail) C0 rad
max.
N
994
Mx
Nm
14.9
My
Nm
69
Mz
Nm
99
£ 121.71 per unit (click for quantity discounts)
l1
370
l2
196
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
5
Load (per rail) C0 ax
max.
N
895
Load (per rail) C0 rad
max.
N
1278
Mx
Nm
19
My
Nm
113
Mz
Nm
162
£ 133.69 per unit (click for quantity discounts)
l1
450
l2
231
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
6
Load (per rail) C0 ax
max.
N
1190
Load (per rail) C0 rad
max.
N
1701
Mx
Nm
24
My
Nm
180
Mz
Nm
258
£ 152.50 per unit (click for quantity discounts)
l1
530
l2
274
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
7
Load (per rail) C0 ax
max.
N
1385
Load (per rail) C0 rad
max.
N
1979
Mx
Nm
28.2
My
Nm
248
Mz
Nm
355
£ 173.84 per unit (click for quantity discounts)
l1
610
l2
316
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
8
Load (per rail) C0 ax
max.
N
1584
Load (per rail) C0 rad
max.
N
2262
Mx
Nm
32.3
My
Nm
327
Mz
Nm
467
£ 195.44 per unit (click for quantity discounts)
l1
690
l2
351
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
9
Load (per rail) C0 ax
max.
N
1882
Load (per rail) C0 rad
max.
N
2689
Mx
Nm
37.3
My
Nm
436
Mz
Nm
623
£ 217.18 per unit (click for quantity discounts)
l1
770
l2
394
h1
22
w1
11
l3
80
l4
25
h2
11.3
w2
10.25
w3
6.5
No. of holes
10
Load (per rail) C0 ax
max.
N
2077
Load (per rail) C0 rad
max.
N
2967
Mx
Nm
41.5
My
Nm
539
Mz
Nm
769
£ 235.74 per unit (click for quantity discounts)
l1
l2
h1
w1
l3
l4
h2
w2
w3
No. of holes
Load (per rail) C0 ax
max.
N
Load (per rail) C0 rad
max.
N
Mx
Nm
My
Nm
Mz
Nm
| Price & Availability | Article | l1 | l2 | h1 | w1 | l3 | l4 | h2 | w2 | w3 | No. of holes | Load (per rail) C0 ax max. N | Load (per rail) C0 rad max. N | Mx Nm | My Nm | Mz Nm | |||||||||||||||
| L1994.22-0130 | 130 | 76 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 2 | 219 | 313 | 5.7 | 10 | 15 | ||||||||||||||||
£ 83.80 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 130 l2 76 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 2 Load (per rail) C0 ax
max.
N 219 Load (per rail) C0 rad
max.
N 313 Mx
Nm 5.7 My
Nm 10 Mz
Nm 15 | |||||||||||||||||||||||||||||||
| L1994.22-0210 | 210 | 111 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 3 | 501 | 715 | 10.7 | 36 | 51 | ||||||||||||||||
£ 107.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 210 l2 111 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 3 Load (per rail) C0 ax
max.
N 501 Load (per rail) C0 rad
max.
N 715 Mx
Nm 10.7 My
Nm 36 Mz
Nm 51 | |||||||||||||||||||||||||||||||
| L1994.22-0290 | 290 | 154 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 4 | 696 | 994 | 14.9 | 69 | 99 | ||||||||||||||||
£ 121.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 290 l2 154 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 4 Load (per rail) C0 ax
max.
N 696 Load (per rail) C0 rad
max.
N 994 Mx
Nm 14.9 My
Nm 69 Mz
Nm 99 | |||||||||||||||||||||||||||||||
| L1994.22-0370 | 370 | 196 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 5 | 895 | 1278 | 19 | 113 | 162 | ||||||||||||||||
£ 133.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 370 l2 196 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 5 Load (per rail) C0 ax
max.
N 895 Load (per rail) C0 rad
max.
N 1278 Mx
Nm 19 My
Nm 113 Mz
Nm 162 | |||||||||||||||||||||||||||||||
| L1994.22-0450 | 450 | 231 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 6 | 1190 | 1701 | 24 | 180 | 258 | ||||||||||||||||
£ 152.50 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 450 l2 231 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 6 Load (per rail) C0 ax
max.
N 1190 Load (per rail) C0 rad
max.
N 1701 Mx
Nm 24 My
Nm 180 Mz
Nm 258 | |||||||||||||||||||||||||||||||
| L1994.22-0530 | 530 | 274 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 7 | 1385 | 1979 | 28.2 | 248 | 355 | ||||||||||||||||
£ 173.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 530 l2 274 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 7 Load (per rail) C0 ax
max.
N 1385 Load (per rail) C0 rad
max.
N 1979 Mx
Nm 28.2 My
Nm 248 Mz
Nm 355 | |||||||||||||||||||||||||||||||
| L1994.22-0610 | 610 | 316 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 8 | 1584 | 2262 | 32.3 | 327 | 467 | ||||||||||||||||
£ 195.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 610 l2 316 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 8 Load (per rail) C0 ax
max.
N 1584 Load (per rail) C0 rad
max.
N 2262 Mx
Nm 32.3 My
Nm 327 Mz
Nm 467 | |||||||||||||||||||||||||||||||
| L1994.22-0690 | 690 | 351 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 9 | 1882 | 2689 | 37.3 | 436 | 623 | ||||||||||||||||
£ 217.18 per unit (click for quantity discounts) Ready to despatch 2 Need more? Please call us.
l1 690 l2 351 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 9 Load (per rail) C0 ax
max.
N 1882 Load (per rail) C0 rad
max.
N 2689 Mx
Nm 37.3 My
Nm 436 Mz
Nm 623 | |||||||||||||||||||||||||||||||
| L1994.22-0770 | 770 | 394 | 22 | 11 | 80 | 25 | 11.3 | 10.25 | 6.5 | 10 | 2077 | 2967 | 41.5 | 539 | 769 | ||||||||||||||||
£ 235.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
l1 770 l2 394 h1 22 w1 11 l3 80 l4 25 h2 11.3 w2 10.25 w3 6.5 No. of holes 10 Load (per rail) C0 ax
max.
N 2077 Load (per rail) C0 rad
max.
N 2967 Mx
Nm 41.5 My
Nm 539 Mz
Nm 769 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Cold drawn bearing steel raceways hardened to 60 HRc. Balls - hardened steel.
Zinc coating to ISO2081 (excluding raceways). Corrosion resistant coatings available on request.
Technical Notes
These are extremely strong and rigid telescopic slides with high load capacities, offering a semi-telescopic movement. C0rad is the load rating for a single telescopic slide. They have very low deflection characteristics.
Weight 1,32 Kg/m.
Temperature range: -30°C to +170°C.
Tips
A double direction stroke can be obtained by removing the end stops screws at the end of each side of the intermediate member.
For double direction strokes, when the moving element has started the stroke in the opposite direction it will catch the intermediate member and force it to return.
The slides have end stops, but these are not designed to stop a moving, loaded slide. External end stops should be used for this.
Special strokes up to 65% of the closed length can be provided on request.
Important Notes
d1 and d2 for M4 threads.
r = 3.
