L3331 Manual Rotary Stages

precision type, material: Aluminium

Download product datasheet

Alternative products you may wish to consider

Manual Rotary Stages
precision type



Select all

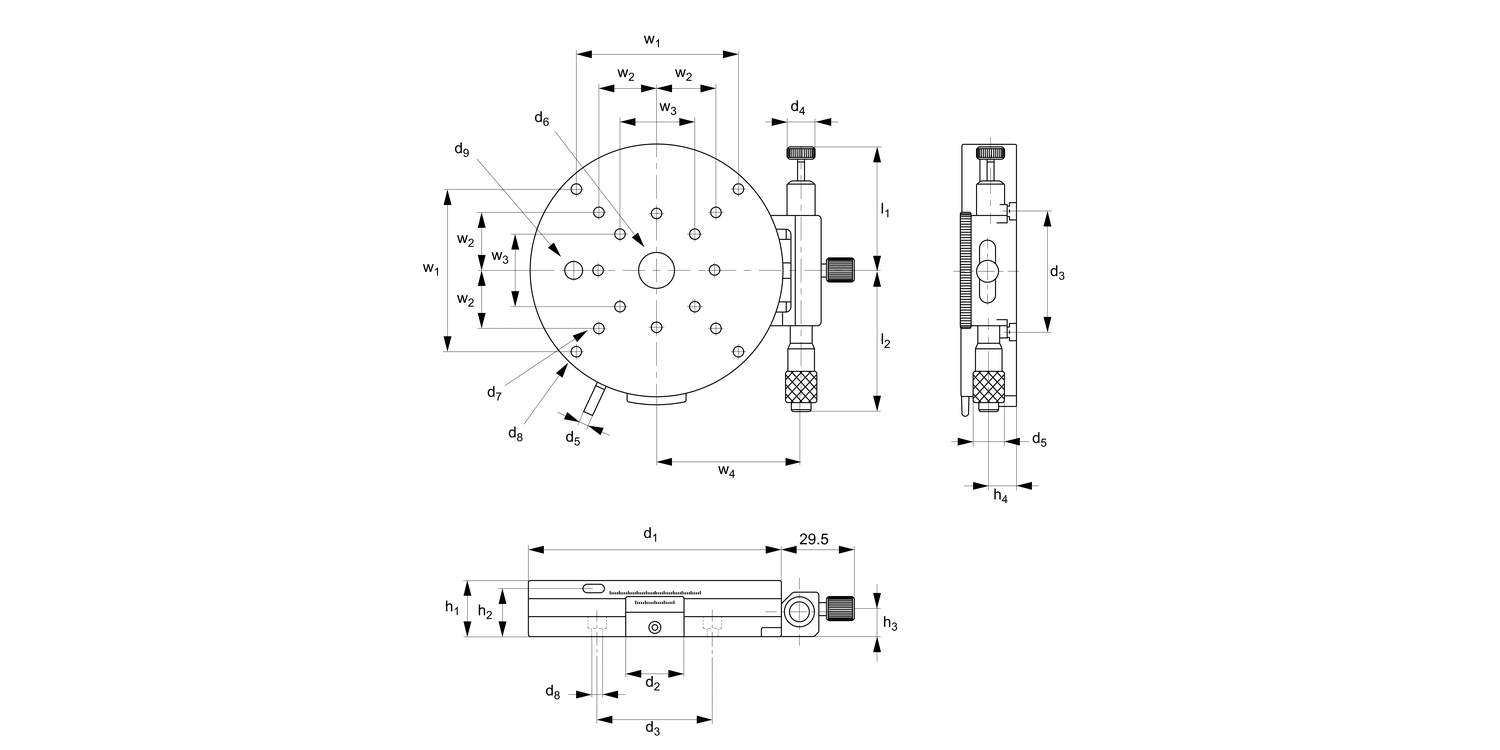

d₁

Load max. N

Vernier reading min.

h₁

h₂

h₃

h₄

d₂

Price & Availability	Article	d1	Load max. N	Vernier reading min.	h1	h2	h3	h4	d2
	L3331.038	38	1.0	1' 26"	17.5	11	10.5	4.5	16
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 38 Load max. N 1.0 Vernier reading min. 1' 26" h1 17.5 h2 11 h3 10.5 h4 4.5 d2 16 more info »
	L3331.060	60	3.0	0' 55"	22.5	13	12.5	11.5	15
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 60 Load max. N 3.0 Vernier reading min. 0' 55" h1 22.5 h2 13 h3 12.5 h4 11.5 d2 15 more info »
	L3331.085	85	4.0	0' 43"	25	22	13.0	11.5	20
£ 402.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-1 £ 402.92 0% 2-2 £ 362.63 10% 3-4 £ 342.48 15% 5+ £ 322.34 20% d1 85 Load max. N 4.0 Vernier reading min. 0' 43" h1 25 h2 22 h3 13.0 h4 11.5 d2 20 more info »
	L3331.110	110	5.0	0' 34"	25	22	13.0	11.5	25
£ 779.35 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-1 £ 779.35 0% 2-2 £ 701.42 10% 3-4 £ 662.45 15% 5+ £ 623.48 20% d1 110 Load max. N 5.0 Vernier reading min. 0' 34" h1 25 h2 22 h3 13.0 h4 11.5 d2 25 more info »



Select all

Weight kg

d₃

d₄

d₅

d₆

d₇

d₈ for

d₉

w₁

w₂

w₃

w₄

l₁

l₂

Price & Availability	Article	Weight kg	d3	d4	d5	d6	d7	d8 for	d9	w1	w2	w3	w4	l1	l2
	L3331.038	0.09	32	6	4	M 6x1	M2	M2	-	-	32	14	24.0	37.4	38.5
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   Weight kg 0.09 d3 32 d4 6 d5 4 d6 M 6x1 d7 M2 d8 for M2 d9 - w1 - w2 32 w3 14 w4 24.0 l1 37.4 l2 38.5 more info »
	L3331.060	0.28	50	12	4	M16x1	M3	M4	-	-	50	32	37.5	47.8	45.0
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   Weight kg 0.28 d3 50 d4 12 d5 4 d6 M16x1 d7 M3 d8 for M4 d9 - w1 - w2 50 w3 32 w4 37.5 l1 47.8 l2 45.0 more info »
	L3331.085	0.48	50	12	4	M16x1	M3	M4	8	-	50	32	48.0	53.3	62.0
£ 402.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-1 £ 402.92 0% 2-2 £ 362.63 10% 3-4 £ 342.48 15% 5+ £ 322.34 20% Weight kg 0.48 d3 50 d4 12 d5 4 d6 M16x1 d7 M3 d8 for M4 d9 8 w1 - w2 50 w3 32 w4 48.0 l1 53.3 l2 62.0 more info »
	L3331.110	0.75	50	12	4	M16x1	M3	M4	8	70	50	32	61.5	53.3	62.0
£ 779.35 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-1 £ 779.35 0% 2-2 £ 701.42 10% 3-4 £ 662.45 15% 5+ £ 623.48 20% Weight kg 0.75 d3 50 d4 12 d5 4 d6 M16x1 d7 M3 d8 for M4 d9 8 w1 70 w2 50 w3 32 w4 61.5 l1 53.3 l2 62.0 more info »
