Shaft Clamps
manual
L1784 Manual Shaft Clamps
material: Aluminium
Alternative products you may wish to consider

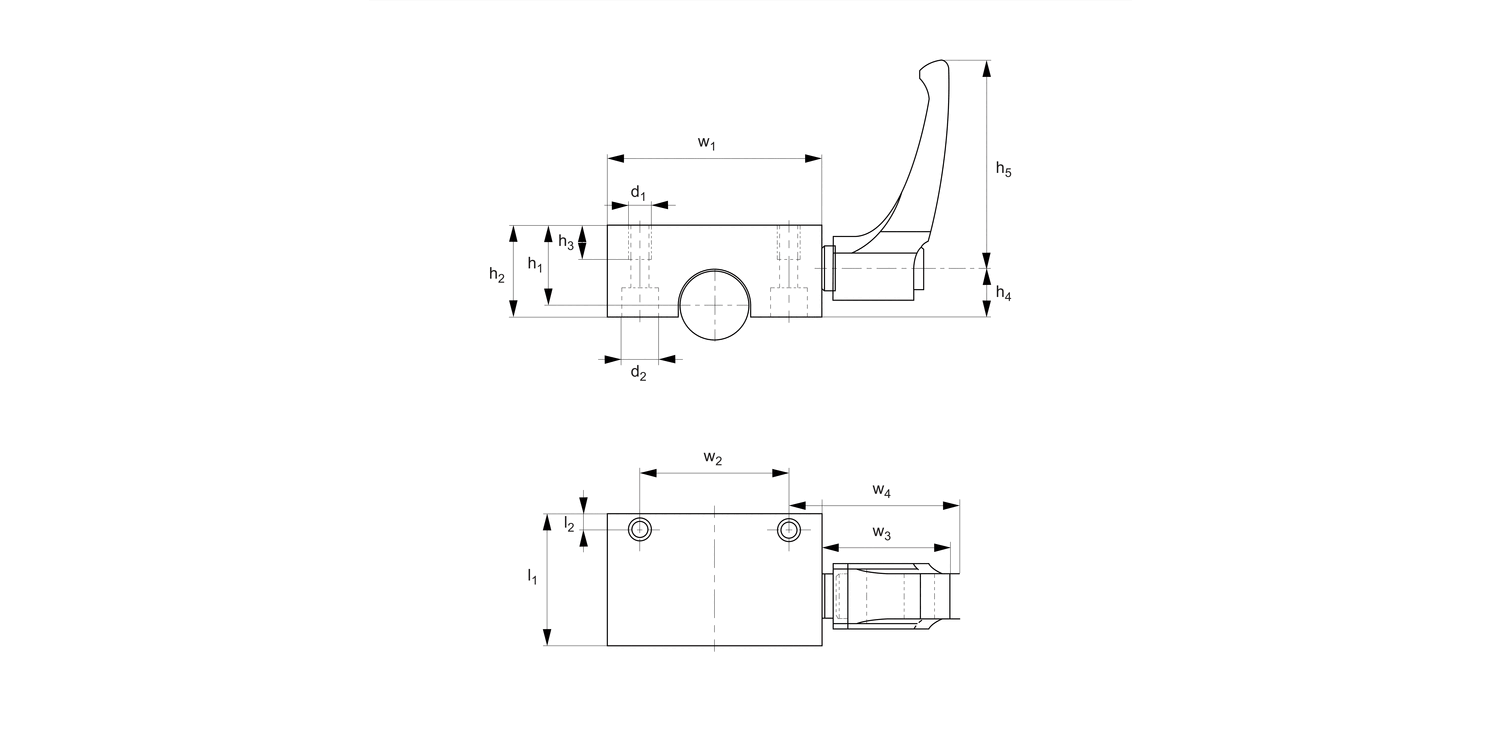

Shaft dia.
12
h1
18
l1
32
w1
43
w2
32
w3
30.5
w4
33.5
h2
24
h3
10
h4
16.0
h5
44
l2
4.5
d1
M 5
d2 for
M 4
Torque to
Nm
5
Holding force
N
1200
£ 156.25 per unit (click for quantity discounts)
Shaft dia.
16
h1
22
l1
38
w1
53
w2
40
w3
30.5
w4
33.5
h2
29
h3
12
h4
19.0
h5
44
l2
5.5
d1
M 6
d2 for
M 5
Torque to
Nm
5
Holding force
N
1200
£ 166.55 per unit (click for quantity discounts)
Shaft dia.
20
h1
25
l1
44
w1
60
w2
45
w3
38.5
w4
41.5
h2
32
h3
14
h4
21.5
h5
63
l2
6.5
d1
M 8
d2 for
M 6
Torque to
Nm
7
Holding force
N
1200
£ 174.84 per unit (click for quantity discounts)
Shaft dia.
25
h1
30
l1
52
w1
78
w2
60
w3
38.5
w4
41.5
h2
38
h3
16
h4
25.0
h5
63
l2
9.0
d1
M10
d2 for
M 8
Torque to
Nm
7
Holding force
N
1200
£ 181.09 per unit (click for quantity discounts)
Shaft dia.
30
h1
35
l1
58
w1
87
w2
68
w3
46.5
w4
50.5
h2
43
h3
16
h4
28.5
h5
78
l2
10.0
d1
M10
d2 for
M 8
Torque to
Nm
12
Holding force
N
2000
£ 188.69 per unit (click for quantity discounts)
Shaft dia.
40
h1
45
l1
68
w1
108
w2
86
w3
56.5
w4
61.5
h2
53
h3
20
h4
34.5
h5
95
l2
11.0
d1
M12
d2 for
M10
Torque to
Nm
17
Holding force
N
2000
£ 209.96 per unit (click for quantity discounts)
Shaft dia.
50
h1
50
l1
76
w1
132
w2
108
w3
56.5
w4
61.5
h2
58
h3
22
h4
40.5
h5
95
l2
12.0
d1
M16
d2 for
M14
Torque to
Nm
17
Holding force
N
2000
£ 238.62 per unit (click for quantity discounts)
Shaft dia.
h1
l1
w1
w2
w3
w4
h2
h3
h4
h5
l2
d1
d2 for
Torque to
Nm
Holding force
N
| Price & Availability | Article | Shaft dia. | h1 | l1 | w1 | w2 | w3 | w4 | h2 | h3 | h4 | h5 | l2 | d1 | d2 for | Torque to Nm | Holding force N | ||||||||||||||||||
| L1784.012 | 12 | 18 | 32 | 43 | 32 | 30.5 | 33.5 | 24 | 10 | 16.0 | 44 | 4.5 | M 5 | M 4 | 5 | 1200 | |||||||||||||||||||
£ 156.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 12 h1 18 l1 32 w1 43 w2 32 w3 30.5 w4 33.5 h2 24 h3 10 h4 16.0 h5 44 l2 4.5 d1 M 5 d2 for M 4 Torque to
Nm 5 Holding force
N 1200 | |||||||||||||||||||||||||||||||||||
| L1784.016 | 16 | 22 | 38 | 53 | 40 | 30.5 | 33.5 | 29 | 12 | 19.0 | 44 | 5.5 | M 6 | M 5 | 5 | 1200 | |||||||||||||||||||
£ 166.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 16 h1 22 l1 38 w1 53 w2 40 w3 30.5 w4 33.5 h2 29 h3 12 h4 19.0 h5 44 l2 5.5 d1 M 6 d2 for M 5 Torque to
Nm 5 Holding force
N 1200 | |||||||||||||||||||||||||||||||||||
| L1784.020 | 20 | 25 | 44 | 60 | 45 | 38.5 | 41.5 | 32 | 14 | 21.5 | 63 | 6.5 | M 8 | M 6 | 7 | 1200 | |||||||||||||||||||
£ 174.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 20 h1 25 l1 44 w1 60 w2 45 w3 38.5 w4 41.5 h2 32 h3 14 h4 21.5 h5 63 l2 6.5 d1 M 8 d2 for M 6 Torque to
Nm 7 Holding force
N 1200 | |||||||||||||||||||||||||||||||||||
| L1784.025 | 25 | 30 | 52 | 78 | 60 | 38.5 | 41.5 | 38 | 16 | 25.0 | 63 | 9.0 | M10 | M 8 | 7 | 1200 | |||||||||||||||||||
£ 181.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 25 h1 30 l1 52 w1 78 w2 60 w3 38.5 w4 41.5 h2 38 h3 16 h4 25.0 h5 63 l2 9.0 d1 M10 d2 for M 8 Torque to
Nm 7 Holding force
N 1200 | |||||||||||||||||||||||||||||||||||
| L1784.030 | 30 | 35 | 58 | 87 | 68 | 46.5 | 50.5 | 43 | 16 | 28.5 | 78 | 10.0 | M10 | M 8 | 12 | 2000 | |||||||||||||||||||
£ 188.69 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 30 h1 35 l1 58 w1 87 w2 68 w3 46.5 w4 50.5 h2 43 h3 16 h4 28.5 h5 78 l2 10.0 d1 M10 d2 for M 8 Torque to
Nm 12 Holding force
N 2000 | |||||||||||||||||||||||||||||||||||
| L1784.040 | 40 | 45 | 68 | 108 | 86 | 56.5 | 61.5 | 53 | 20 | 34.5 | 95 | 11.0 | M12 | M10 | 17 | 2000 | |||||||||||||||||||
£ 209.96 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 40 h1 45 l1 68 w1 108 w2 86 w3 56.5 w4 61.5 h2 53 h3 20 h4 34.5 h5 95 l2 11.0 d1 M12 d2 for M10 Torque to
Nm 17 Holding force
N 2000 | |||||||||||||||||||||||||||||||||||
| L1784.050 | 50 | 50 | 76 | 132 | 108 | 56.5 | 61.5 | 58 | 22 | 40.5 | 95 | 12.0 | M16 | M14 | 17 | 2000 | |||||||||||||||||||
£ 238.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Shaft dia. 50 h1 50 l1 76 w1 132 w2 108 w3 56.5 w4 61.5 h2 58 h3 22 h4 40.5 h5 95 l2 12.0 d1 M16 d2 for M14 Torque to
Nm 17 Holding force
N 2000 | |||||||||||||||||||||||||||||||||||
Technical & Application
Material
Aluminium body, with hardened steel contact faces.
Technical Notes
Activating the clamping lever presses the contact faces into contact with the shaft bar to clamp it in place.
For clamping from above use d1, for clamping from below use d2.
Tips
Use with shaft support rail L1780.
Pneumatic shaft clamps also available.
