R5193 Spur Gears - Module 1.5 - Plastic

Name: R5193.150-060
Brand: WC
SKU: R5193.150-060
Price: 89.03 EUR
Availability: OutOfStock

blue polyacetal - 15-60 teeth, material: Polyacetal

Article properties

Order No.

R5193.150-060

Module

m 1.5

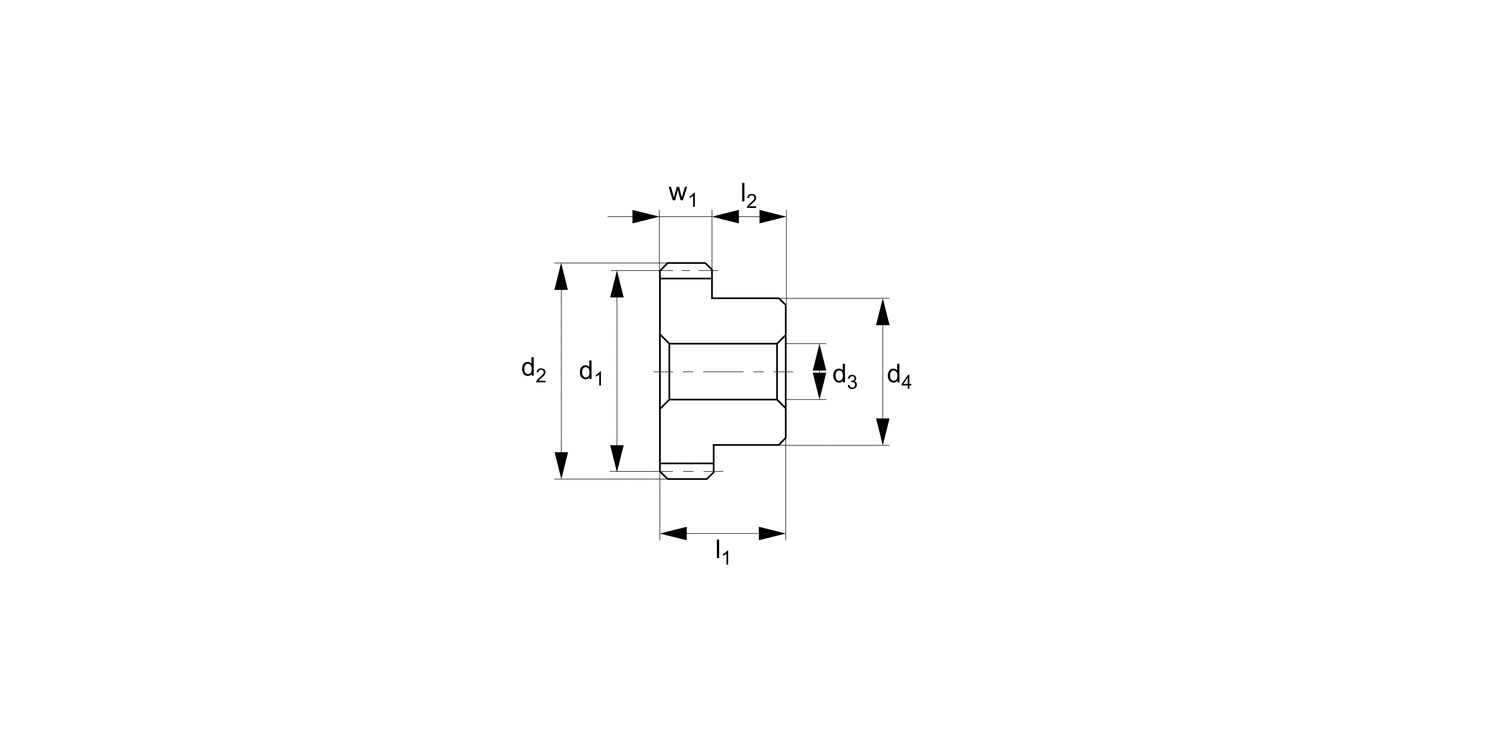

No. of teeth z

Pitch dia. d₁

90.0

d₂

93.0

w₁

d₃ tol. H9

d₄

l₁

l₂

Torque max. Nm

8.90

Weight g

200.9

See full product selection

£ 89.03 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-1	£ 89.03	0%
2-2	£ 80.13	10%
3-4	£ 75.68	15%
5+	£ 71.22	20%

Download product datasheet

Technical & Application

Material

Polyacetal, blue, machined.
Accuracy to JIS B 1702-1 (ISO) class 9-10.

Technical Notes

20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,09 - 0,18 mm.
Blue polyacetal machined gears are suitable for use in food machinery applications. Approved by the FDA (USA) and by regulators in the EU and Japan, where the food has an alcohol percentage of <15%. Please clean gears thoroughly before use.

Tips

For module 1.5 blue plastic gears with 14 teeth see R5191.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
