R3864 Jaws for Turnbuckles

Name: R3864.R024-ZP
Brand: WC
SKU: R3864.R024-ZP
Price: 39.46 EUR
Availability: InStock

steel, material: Steel

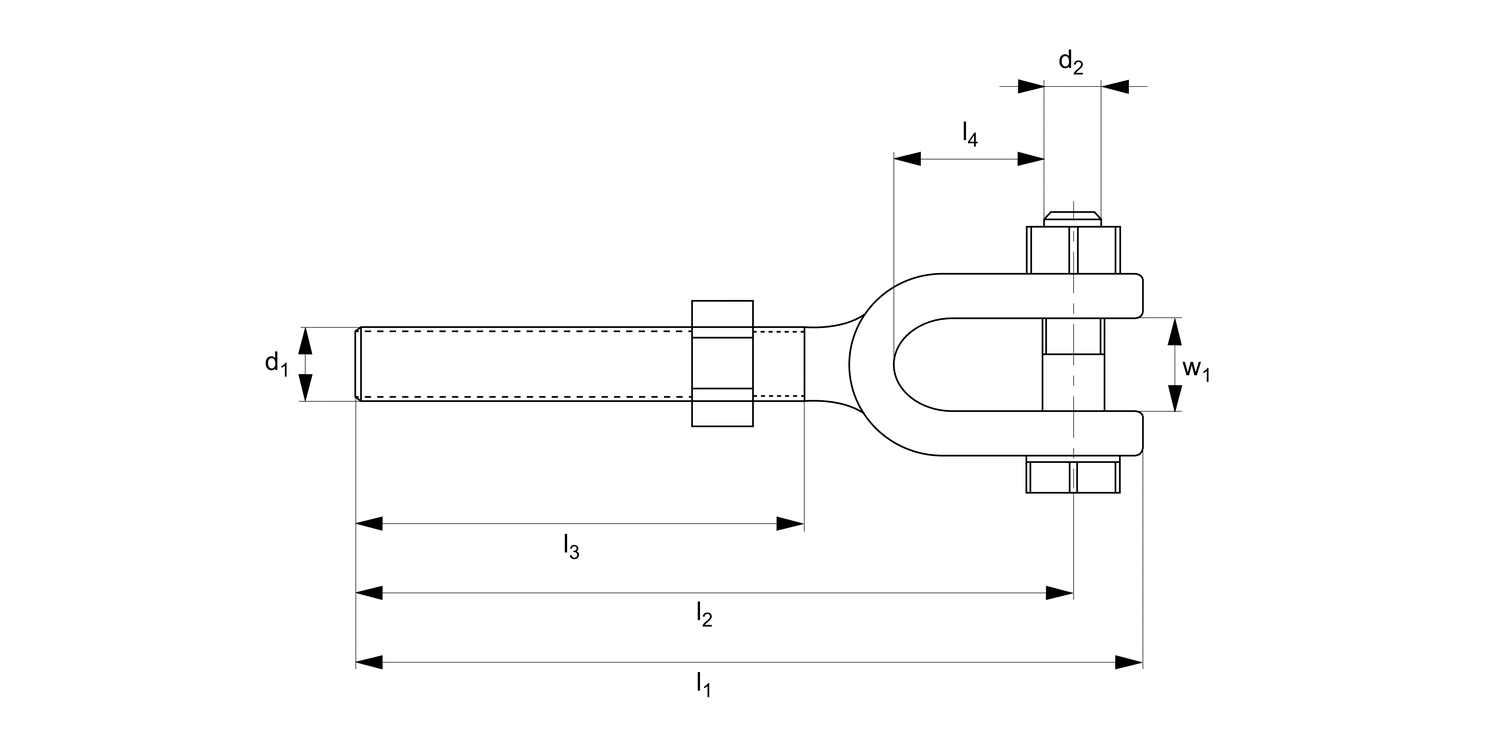

Article properties

Order No.

R3864.R024-ZP

Thread hand

Right

d₁

M24

d₂

20.5

l₁

240

l₂

215

l₃

125

l₄

62.75

w₁

29.0

Weight kg

1.395

See full product selection

£ 39.46 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 39.46	0%
10-19	£ 35.51	10%
20-39	£ 33.54	15%
40-49	£ 29.60	25%
50-99	£ 27.62	30%
100+	£ 23.68	40%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (C45, 1.0503), zinc-plated.
Hot dip galvanized version, above M12 available on request providing increased protection against corrosion. Please add -FZ for hot dip galvanized, e.g. R3864.R008-FZ.

Important Notes

Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
