R3217 Quick Set Collars

Name: R3217.100
Brand: WC
SKU: R3217.100
Price: 56.51 EUR
Availability: OutOfStock

material: Thermoplastic

Article properties

Order No.

R3217.100

d₁ tol. H7/H8

d₂ tol. H7/H8

d₃

d₄

22.4

d₅

l₁

27.5

l₂

l₃

1.7

l₄

3.15

l₅

0.5

O-ring size

22x1,5

Axial force max. N

250

Weight g

See full product selection

£ 56.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 56.51	0%
5-9	£ 50.86	10%
10-19	£ 48.03	15%
20-49	£ 42.38	25%
50+	£ 36.73	35%

Download product datasheet

Technical & Application

Material

Black thermoplastic body, other parts stainless steel. With NBR O ring.

Technical Notes

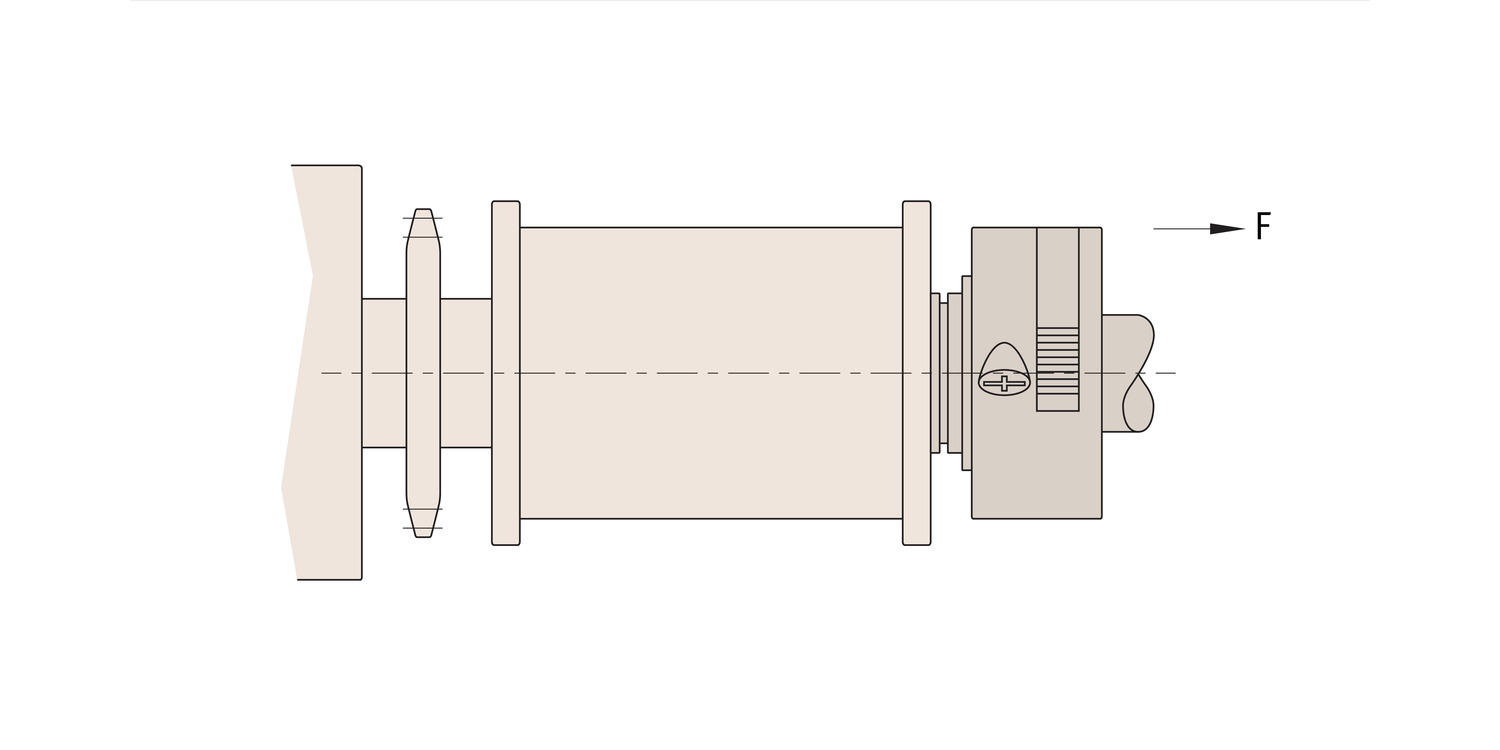

For positioning, clamping and quick adjustment on shafts.
Clamping and mounting can be achieved using one hand in the pull direction.
Temperature range to 80C, F - axial holding force, one-sided.
