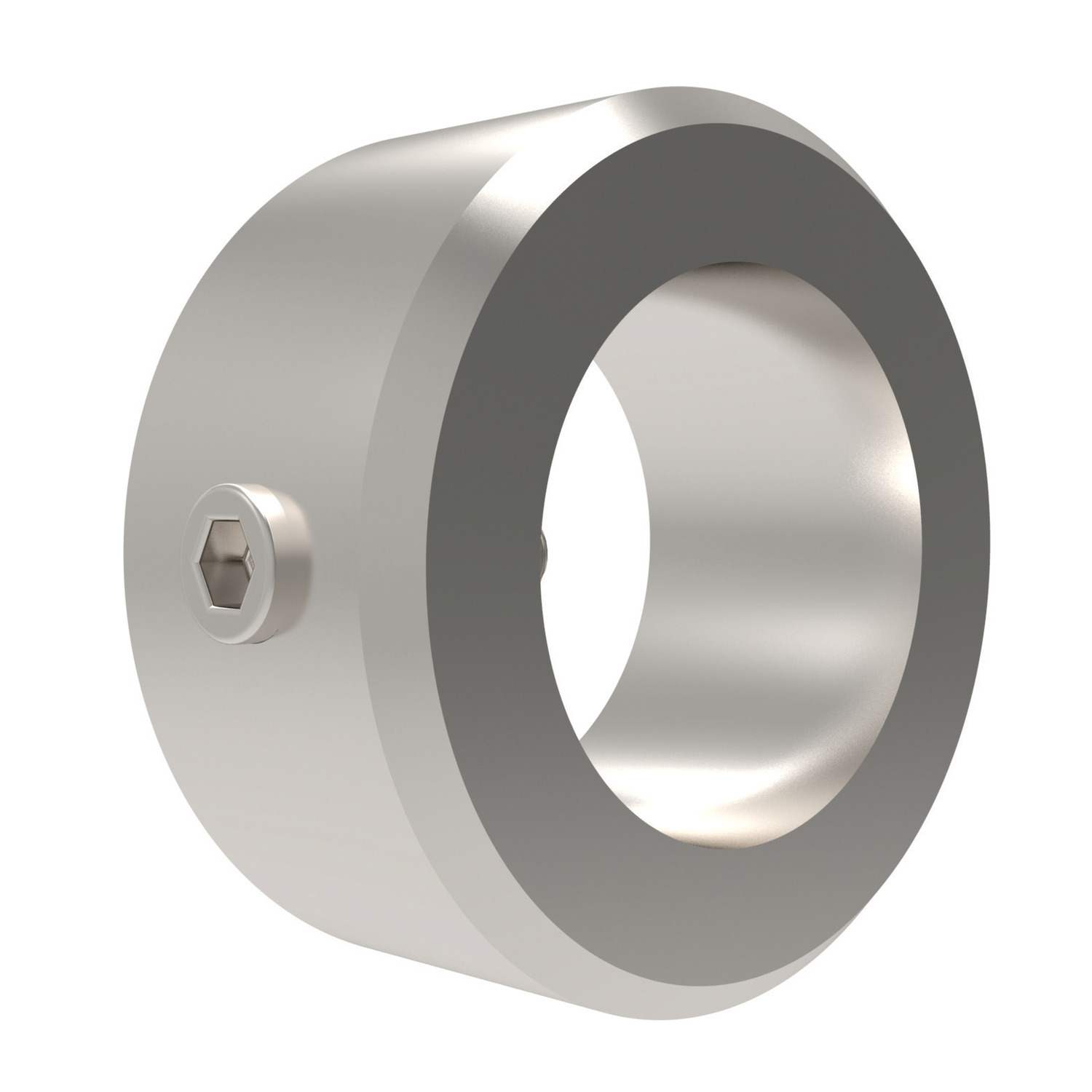

R3216 Set Collars - Hex Set Screw

Name: R3216.120-A2
Brand: WC
SKU: R3216.120-A2
Price: 5.04 GBP
Availability: InStock

Article properties

Order No.

R3216.120-A2

Material

Stainless

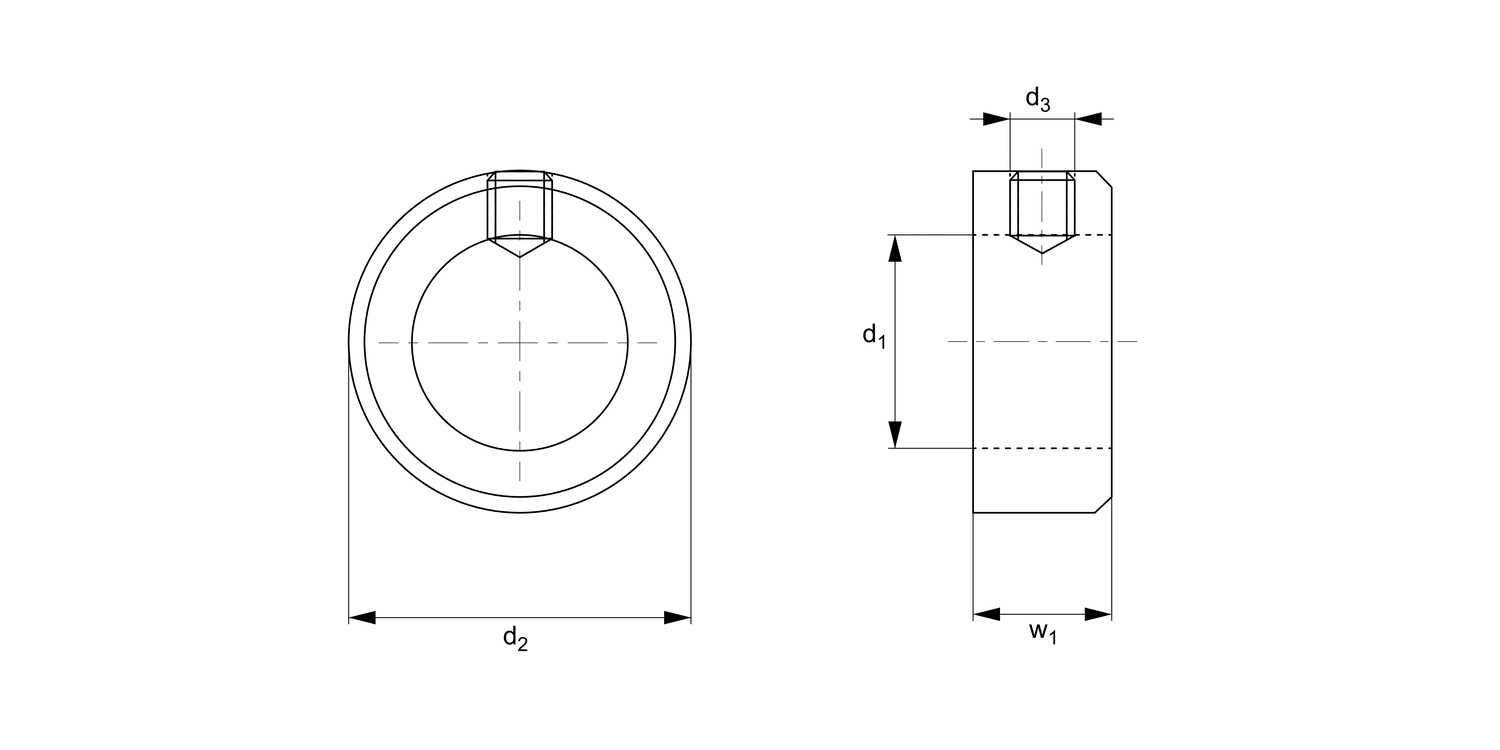

d₁ tol. H7/H8

d₂ tol. H7/H8

d₃

M 6

£ 5.04 per unit (click for quantity discounts)

Ready to despatch 196
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Black oxide steel or stainless steel (A2, AISI 303).

To DIN 705 B, set screw to DIN 914.

Different bore sizes available on request.
For keyways, please add "-KW" suffix when ordering.
