Swivel Eye Bolts
P4004 Swivel Eye Nuts Female
female, material: Steel
Order No.
P4004.M020
Load
max.
tonnes (t)
2.7

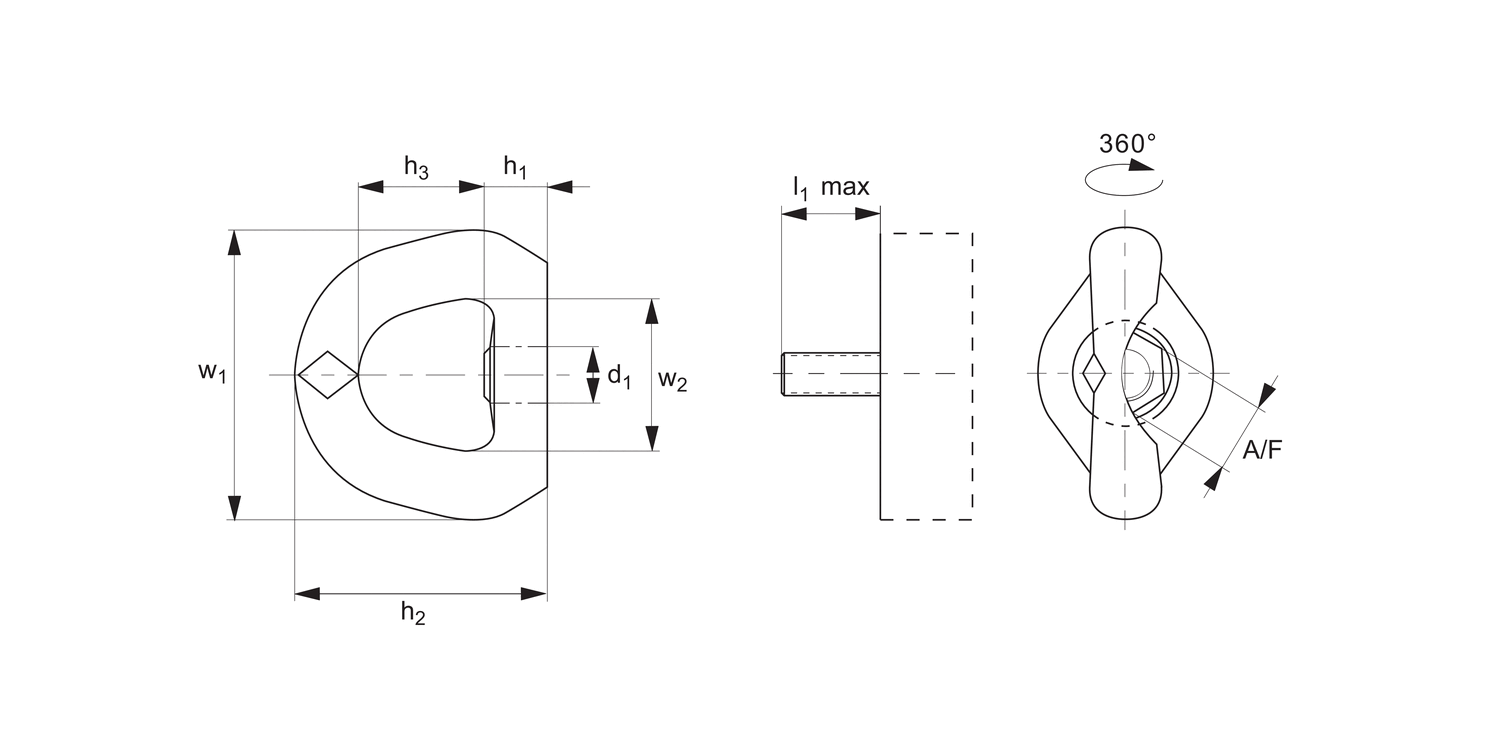

d1
6H
M20x2,50
h1 & lmax.
35
h2
106
h3
55
w1
115
w2
70
A/F
36
Safety factor
4
Torque to
Nm
100
Weight
kg
2.5
£ 228.96 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 228.96 | 0% |
| 3-4 | £ 206.06 | 10% |
| 5-9 | £ 194.62 | 15% |
| 10-19 | £ 183.17 | 20% |
| 20+ | £ 171.72 | 25% |
Technical & Application
Material
High tensile steel, strength class >8.
Supplied with CE certificate.
Technical Notes
Single articulation, very low overhang for improved safety, large support surface.
For use in temperatures from -20°C to +200°C. Can be used in lower or higher temperatures,
but this affects the load rating - please ask for more information.
Please refer to our technical information pages when specifying and/or using.
Tips
Allows swivelling under load.
Swivel eye bolt with "automatic" position recovery system for best orientation to sling direction.
Permits the hook to move parallel to the supporting face of the ring when being pulled at 90° angle.
Important Notes
Tolerance of male thread to be 6g (metric).
Supplied with certificate and operating instructions.
Product Datasheets
CAD files

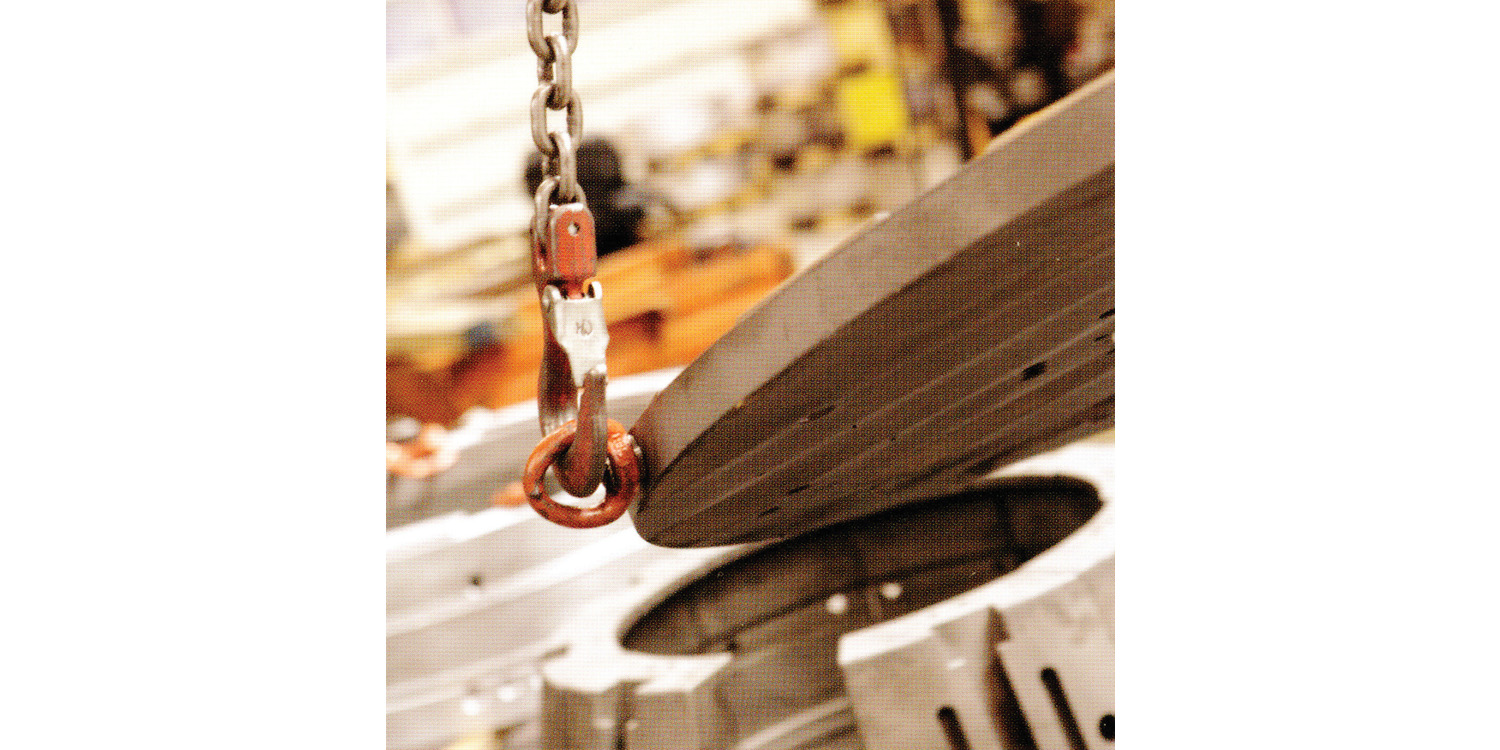

Application images
