Finned Roller
roller only

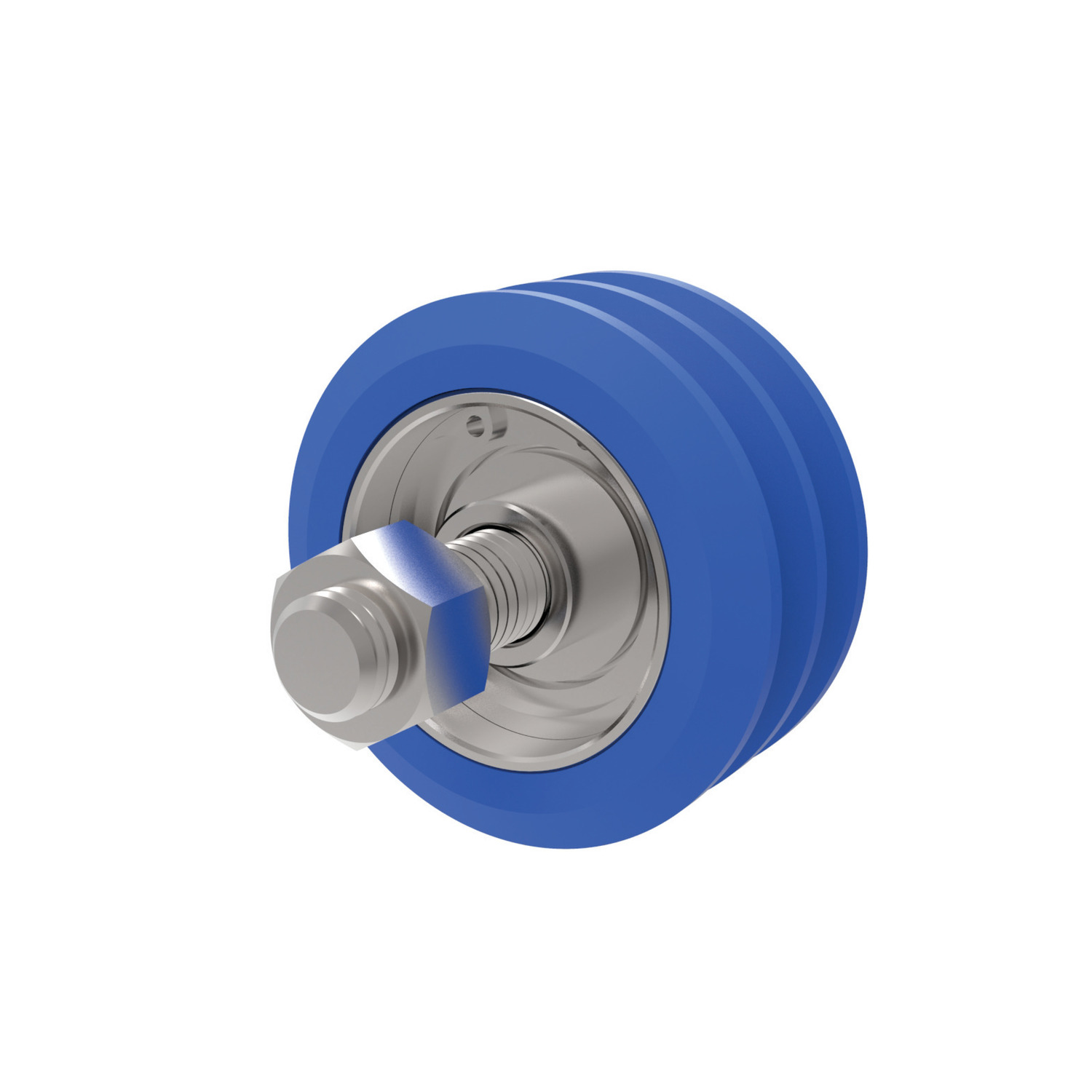

P2774 Finned Roller
stud mount, material: Nitrile, urethane or neoprene
Order No.
P2774.20A-35NI
Material
Nitrile
Duro.
35
Bearing type
B

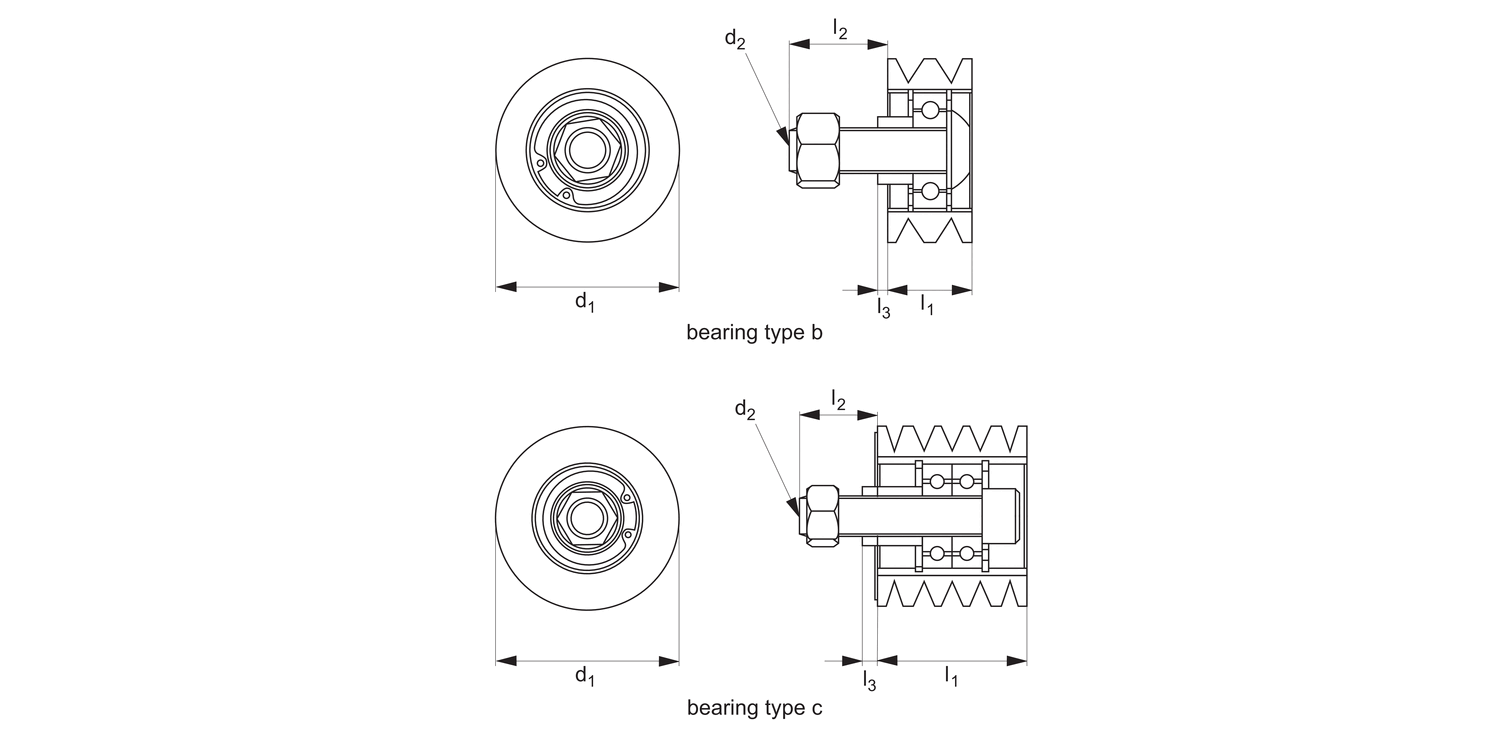

d1
50,8 (2")
l1
23.37
d2
41306
l2
27.94
l3
3.05
No. of bearings
1
No. of fins
3
£ 57.85 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 57.85 | 0% |
| 10-19 | £ 52.07 | 10% |
| 20-49 | £ 49.17 | 15% |
| 50-99 | £ 46.28 | 20% |
| 100+ | £ 43.39 | 25% |
Technical & Application
Material
Nitrile, urethane or neoprene bonded to a steel insert. Hardness from 20-60 durometer (Shore A).
Technical Notes
Bearings included (held in place with snap rings). For more details on bearings please see technical pages. Assembled with socket head cap screw, spacer and lock nut.
Tips
Finned rollers have grooves on the surface, creating less surface contact with the workpiece, and allowing dirt, debris and liquid to pass.
