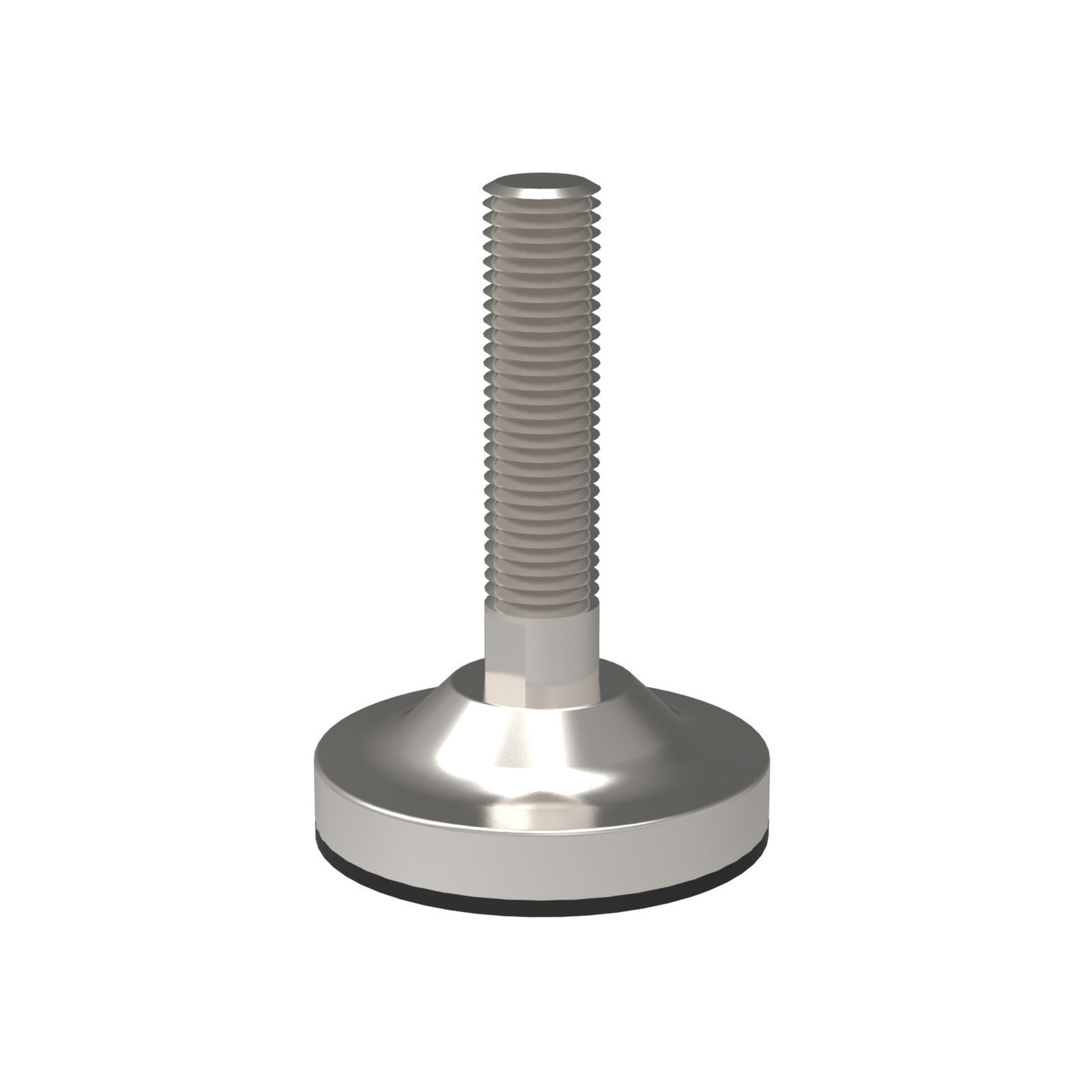

P2208 Steel Levelling Feet steel

Name: P2208.050-10-100
Brand: WC
SKU: P2208.050-10-100
Availability: OutOfStock

material: Steel

Article properties

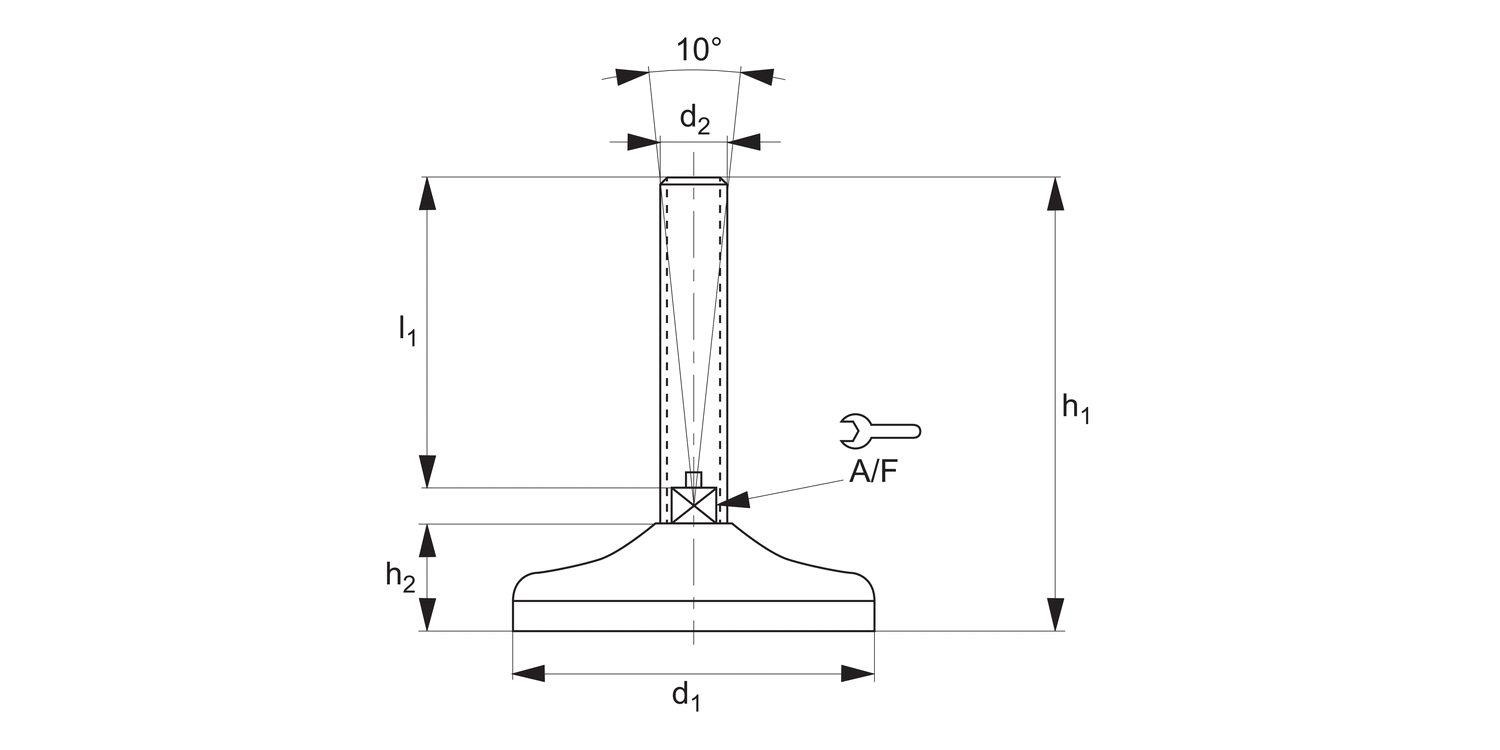

Order No.

P2208.050-10-100

d₁

d₂

M10

h₁

129

h₂

l₁

100

A/F

Load max. kgf

400

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Download FREE CAD

Technical & Application

Material

Galvanized steel (C40), with rubber pad (70 shore A).

Technical Notes

Load values refer to static loads, located at half the screw height.

Product Datasheets

Levelling Feet19 June 2025, 16:52 / 4.80 MB

Levelling Feet19 June 2025, 16:47 / 8.97 MB

Anti-Vibration, Levelling Feet & Materials Handling19 June 2025, 16:43 / 29.15 MB

Mechanical Components19 June 2025, 16:38 / 43.59 MB

CAD files

P2208 Acis5 January 2018, 19:13 / 2.79 MB

P2208 IGES5 January 2018, 19:13 / 7.87 MB

P2208 Parasolid5 January 2018, 19:13 / 1.50 MB

P2208 ProE5 January 2018, 19:13 / 19.76 MB

P2208 SolidWorks5 January 2018, 19:13 / 8.92 MB

P2208 Step5 January 2018, 19:13 / 4.33 MB
