P2182 Precision Adjuster

Name: P2182.042-160-A2
Brand: WC
SKU: P2182.042-160-A2
Price: 81.94 EUR
Availability: InStock

material: Zinc plated steel

Article properties

Order No.

P2182.042-160-A2

Material

Stainless steel

For bolt

M16

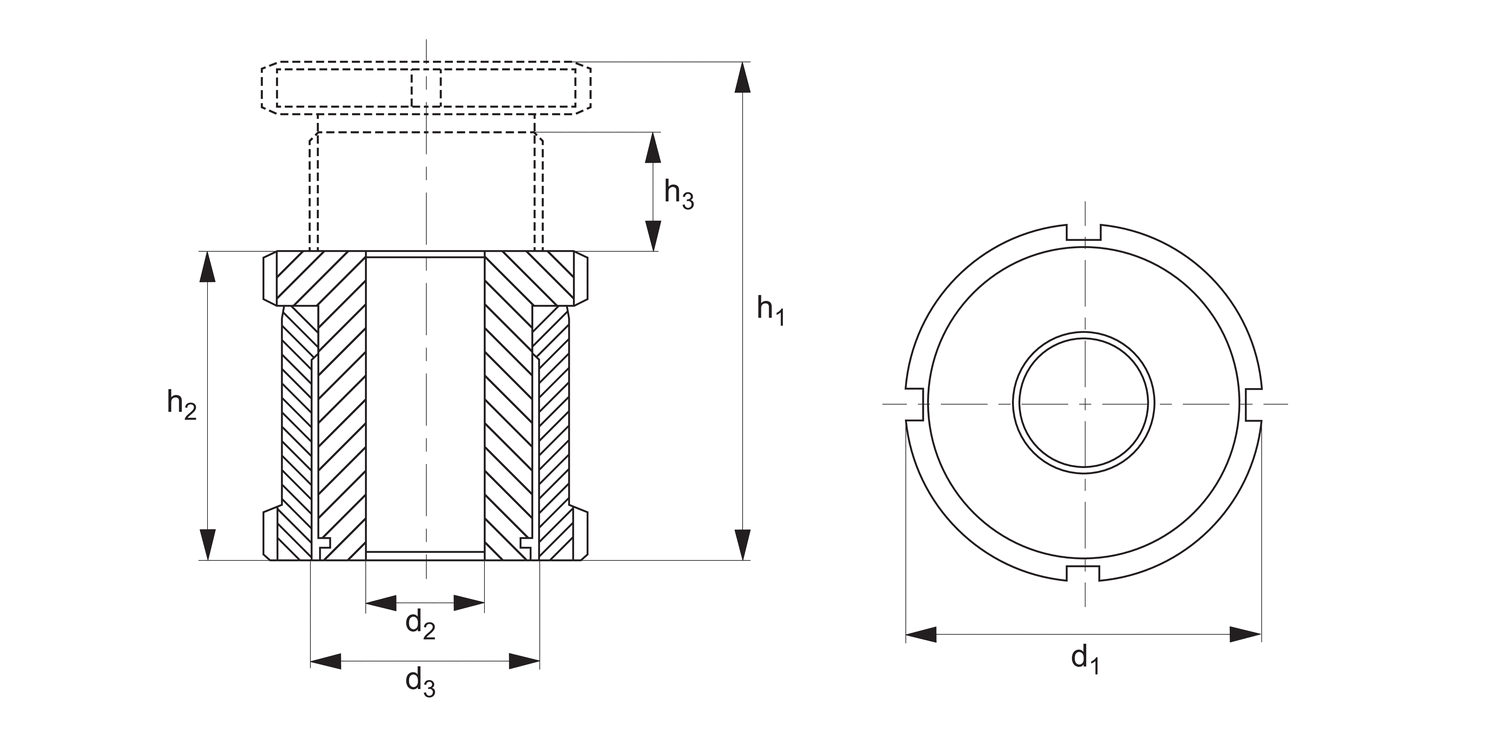

h₁

h₂

h₃

d₁

d₂

17.5

d₃

M30x1,5

Load with bolt max. kN

28.90

Load w/o bolt max. kN

84.00

See full product selection

£ 81.94 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 81.94	0%
5-9	£ 73.75	10%
10-19	£ 69.65	15%
20-49	£ 61.46	25%
50+	£ 53.26	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (type 42 CrMo4 V, 1.7225) zinc plated or stainless steel A1 (A4 on request).

Technical Notes

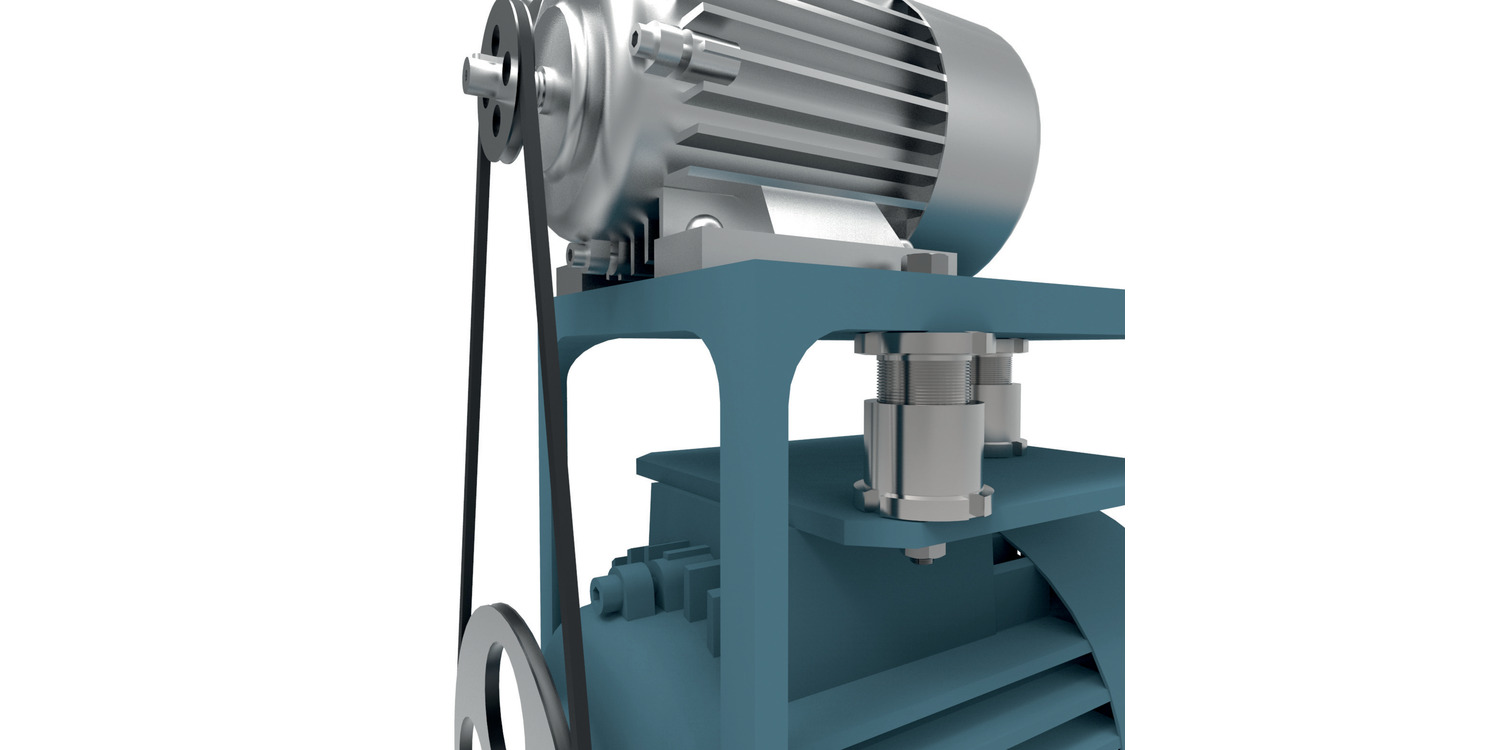

After setting the height, the structure can be bolted down using a suitable 8,8 strength bolt.
The net load that the unit can carry is the maximum load less the tightening torque recommended for the bolt. Designed for applications where a wide adjustment range is required - height adjustment is equal to 15 to 40mm.
