P2017 Anti-vibration Cylinders

Name: P2017.08-05
Brand: WC
SKU: P2017.08-05
Price: 18.7 EUR
Availability: InStock

spherical, material: Steel

Article properties

Order No.

P2017.08-05

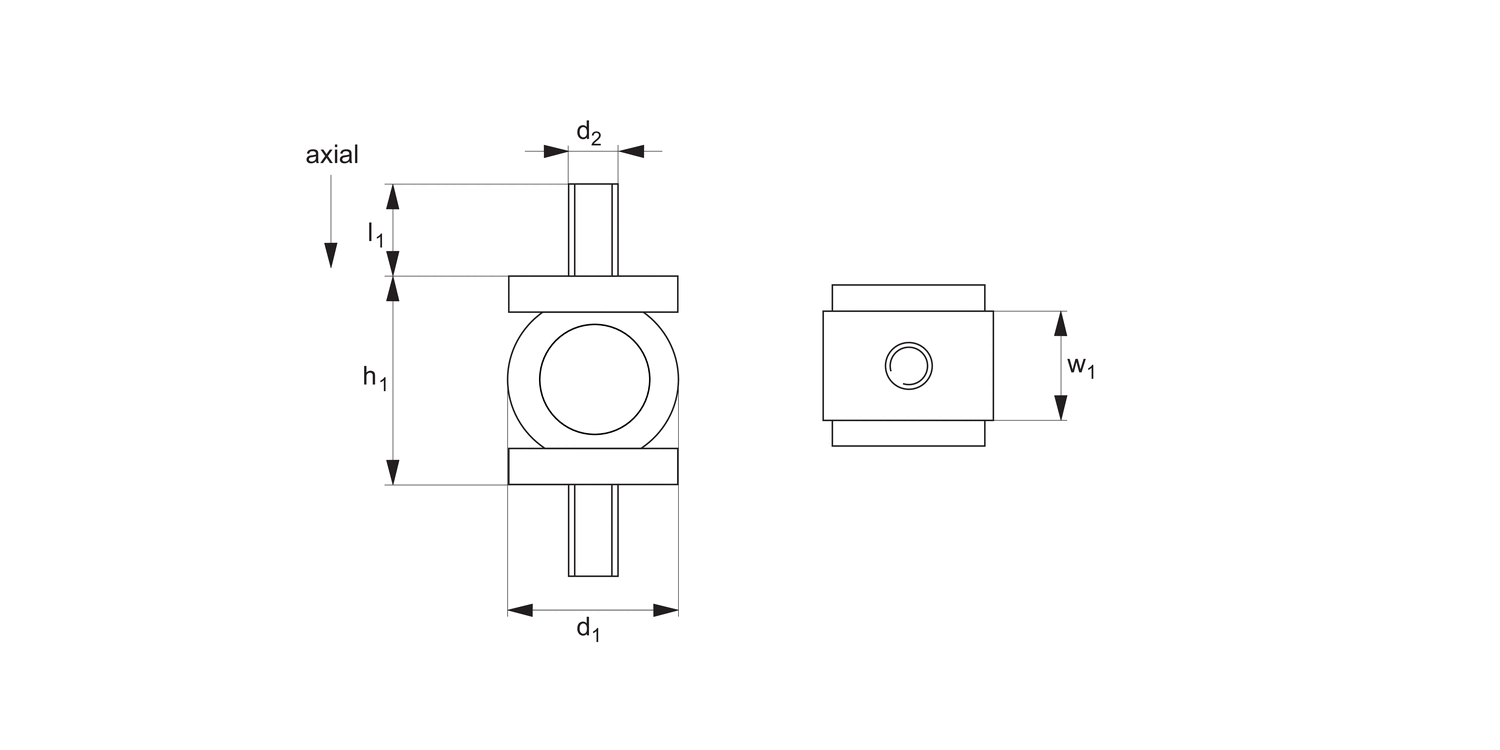

d₁

h₁

d₂

w₁

l₁

Compression max.

Axial load max. kgf

3.50

See full product selection

£ 18.70 per unit (click for quantity discounts)

Ready to despatch 16
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 18.70	0%
20-49	£ 15.90	15%
50-99	£ 14.03	25%
100-199	£ 12.16	35%
200-499	£ 11.22	40%
500+	£ 9.35	50%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Rubber on silver zinc-plated steel (rubber hardness - 55 Shore A).

Technical Notes

The spherical mounts are designed for low frequencies with low loads as little as 0.5 kg.

Tips

These mounts are not to be used for radial loads.

Product Datasheets

P2017 Anti-vibration Cylinders
June 19, 2025, 4:59 PM / 450.28 kB

Male:MaleJune 19, 2025, 4:52 PM / 999.96 kB

Anti-Vibration ComponentsJune 19, 2025, 4:48 PM / 14.49 MB

Anti-Vibration, Levelling Feet & Materials HandlingJune 19, 2025, 4:43 PM / 29.15 MB

Mechanical ComponentsJune 19, 2025, 4:38 PM / 43.59 MB
