Constant Force Springs
P1315 Constant Force Springs stainless
material: Stainless steel
Order No.
P1315.050-B
t1
0.50
F
±10%
N
27.9

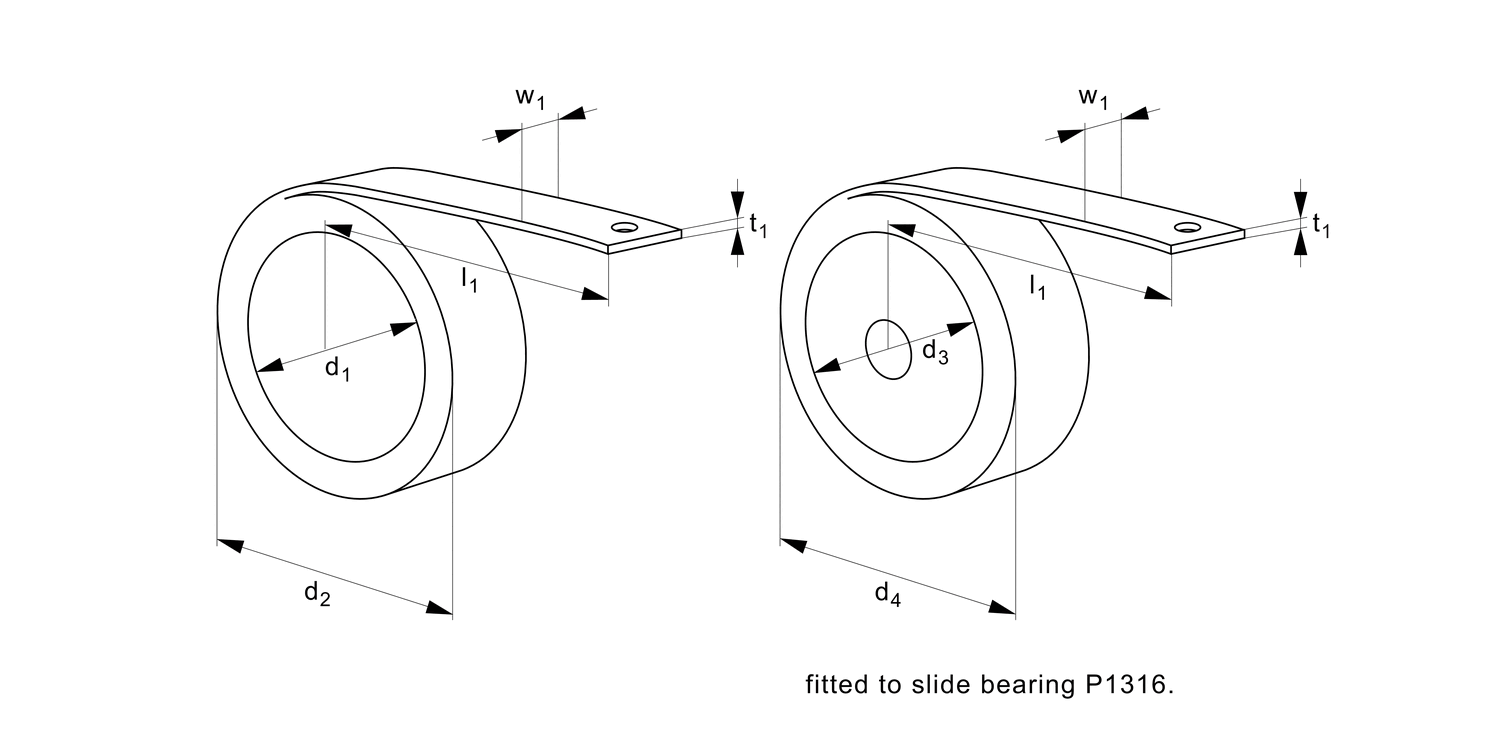

d1
65
w1
30
d2
75.1
d3
80
d4
88.6
l1
1500
Total length
2000
Nc
40000

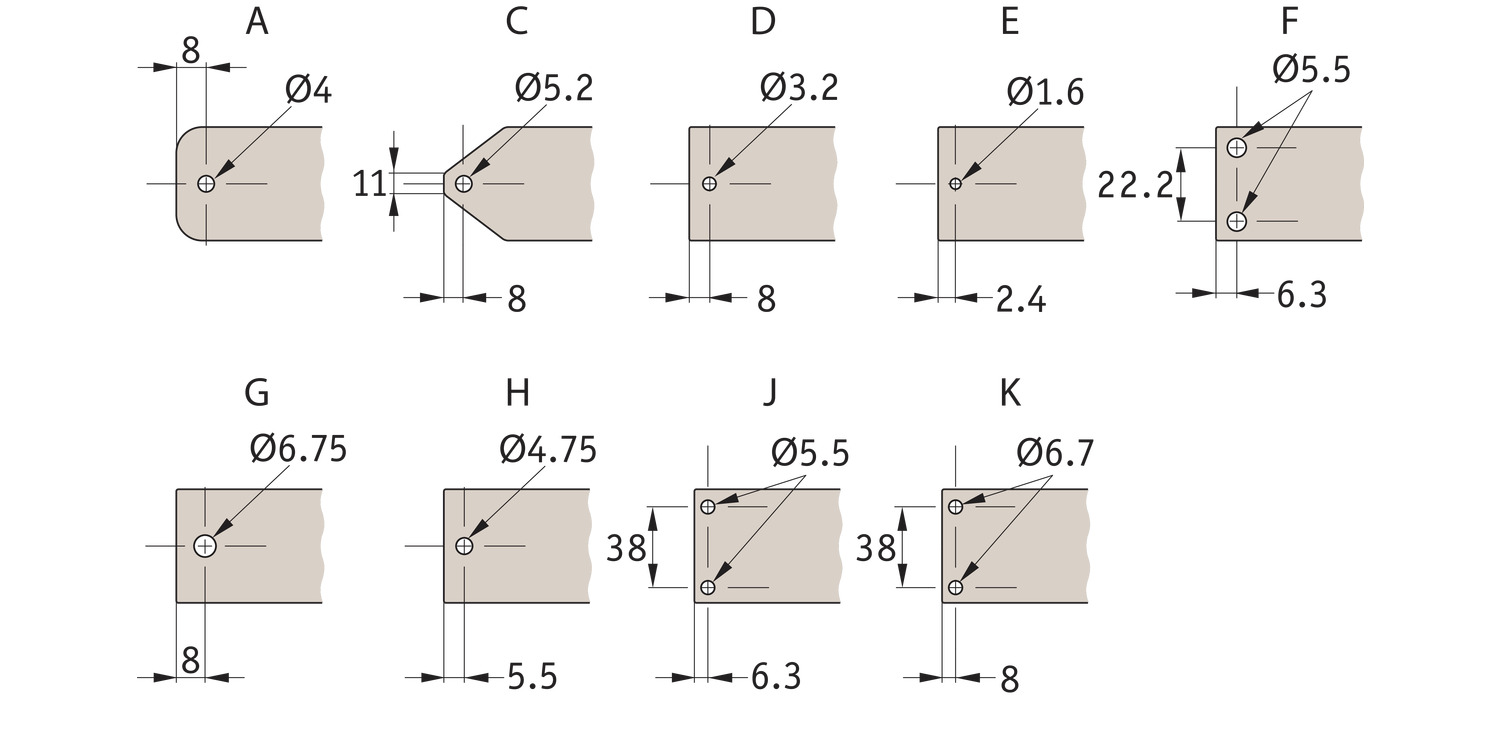

Hole
G
For bearing No.
P1316.75-80-30
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Stainless steel (EN10270-3, DIN 1.4310).
Technical Notes
Constant force extension springs provide a huge range of application opportunities. Springs can be extended in excess of 50 times the relaxed length of the spring, and can be mounted on a bobbin or bush free running in a cavity or recess. Springs can be joined or laminated to provide increased force with minimal increases in space requirements.
