P1218 Extractable Taper Pins

Name: P1218.100-120
Brand: WC
SKU: P1218.100-120
Price: 6.46 EUR
Availability: InStock

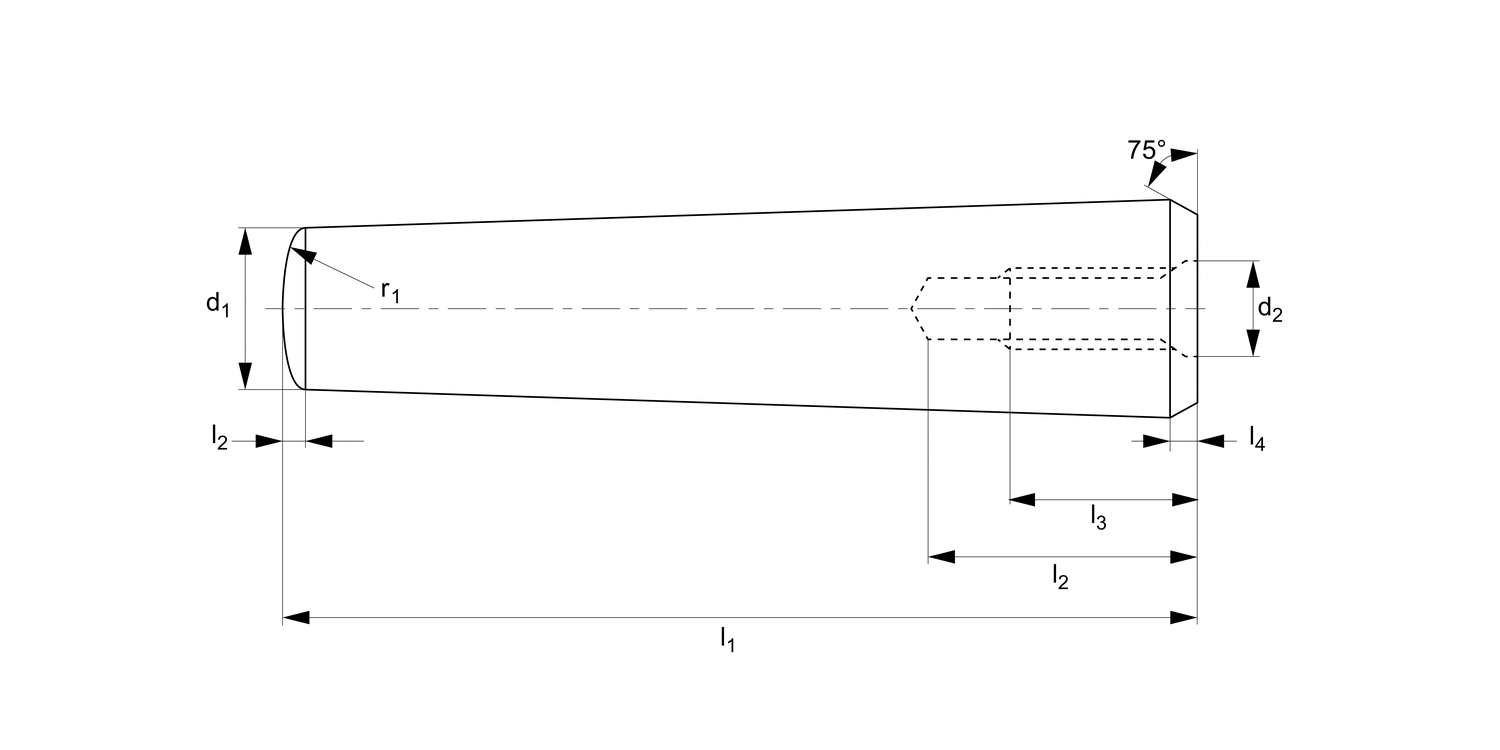

Article properties

Order No.

P1218.100-120

d₁

l₁ js15

120

l₂

l₃

l₄

1.2

d₂

M 6

£ 6.46 per unit (click for quantity discounts)

Ready to despatch 148
Need more? Manufactured within 5 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Mild steel (WS 1.0718, 9SMnPB28K), ground finish.

To DIN 7978 (ISO 8736). The nominal diameter is always the smaller end d 1 and the taper is 2%.

P1218 Extractable Taper PinsJanuary 3, 2025, 3:29 PM / 72.29 kB

Extractable Dowel PinsJanuary 3, 2025, 3:14 PM / 279.87 kB

Dowel PinsJanuary 3, 2025, 3:14 PM / 577.21 kB

Pins & SpacersJanuary 3, 2025, 3:14 PM / 1.91 MB

Mechanical ComponentsJanuary 3, 2025, 3:16 PM / 42.45 MB

P1218 AcisMay 13, 2018, 6:15 PM / 9.78 MB

P1218 IGESMay 13, 2018, 6:15 PM / 7.82 MB

P1218 ParasolidMay 13, 2018, 6:15 PM / 7.88 MB

P1218 ProEMay 13, 2018, 6:15 PM / 11.69 MB

P1218 SolidWorksMay 13, 2018, 6:16 PM / 58.66 MB

P1218 StepMay 13, 2018, 6:15 PM / 9.31 MB
