P0820.AL Flange Head Knurled Insert Nuts

Name: P0820.120-070-AL
Brand: WC
SKU: P0820.120-070-AL

Aluminium, material: Aluminium

Article properties

Order No.

P0820.120-070-AL

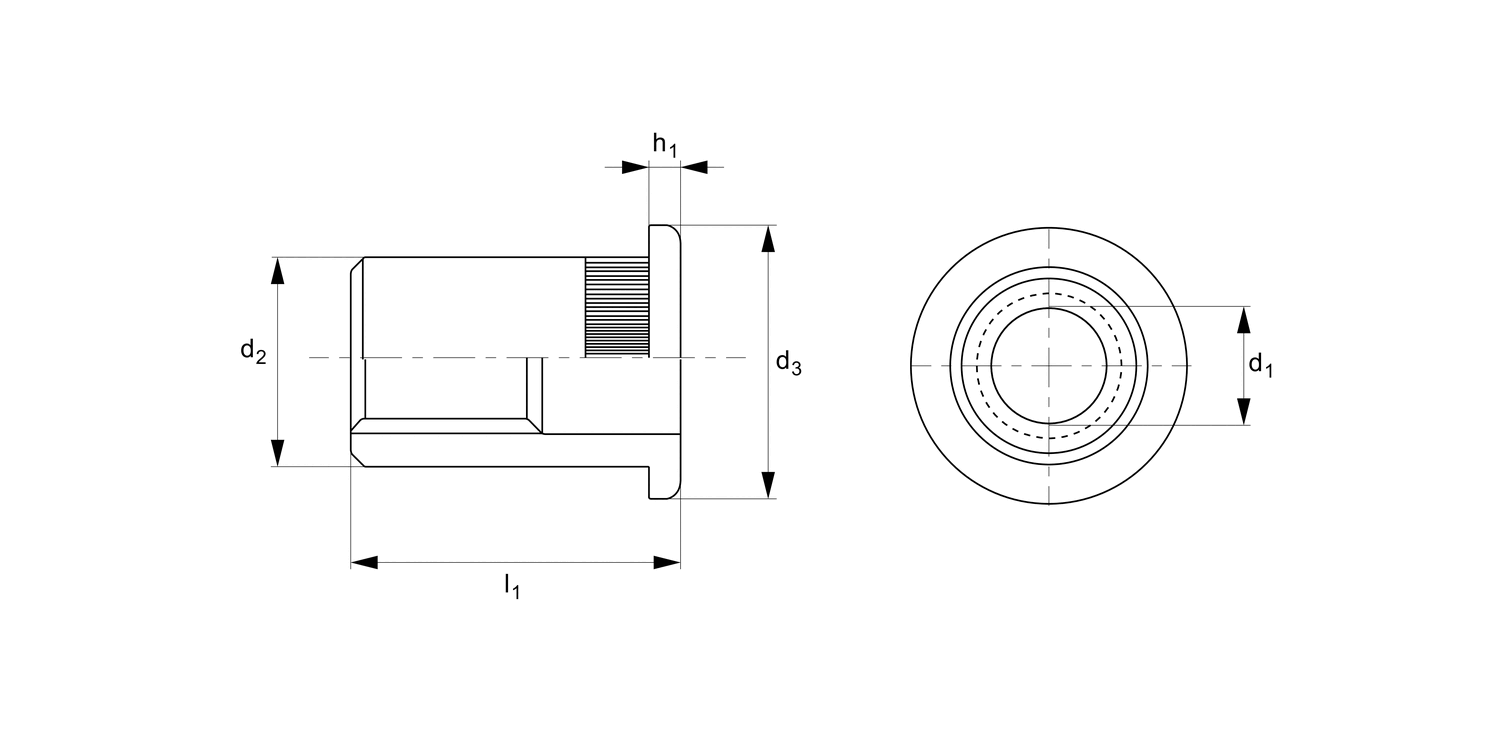

d₁

M12

Grip range

4,0-7,0

d₂ +0|-0.2

15.9

d₃

22.0

h₁

2.0

l₁

28.0

See full product selection

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium.

Technical Notes

Knurled body type, plain available on request.
Flange head insert nuts are recommended for use in load bearing applications. The larger sized head acts as a reinforcement to the hole and provides resistance to push-out.
The knurled body provides extra turning resistance and the head acts as a spacer.

Tips

Also known as blind rivet nuts or grip nuts.

Product Datasheets

P0820.AL Flange Head Knurled Insert NutsJanuary 3, 2025, 3:29 PM / 67.22 kB

Flange Head Insert NutsJanuary 3, 2025, 3:14 PM / 92.85 kB

Insert NutsJanuary 3, 2025, 3:14 PM / 240.64 kB

Other ComponentsJanuary 3, 2025, 3:14 PM / 2.69 MB

Mechanical ComponentsJanuary 3, 2025, 3:16 PM / 42.45 MB

CAD files

P0820.AL AcisMarch 21, 2019, 8:40 PM / 1.26 MB

P0820.AL IGESMarch 21, 2019, 8:40 PM / 2.05 MB

P0820.AL ParasolidMarch 21, 2019, 8:40 PM / 1.56 MB

P0820.AL ProEMarch 21, 2019, 8:40 PM / 2.20 MB

P0820.AL SolidWorksMarch 21, 2019, 8:40 PM / 11.70 MB

P0820.AL StepMarch 21, 2019, 8:40 PM / 1.69 MB
