Hand Setting Tool
P0198 Expansion Restrictors
material: Steel
Order No.
P0198i.250-xxx

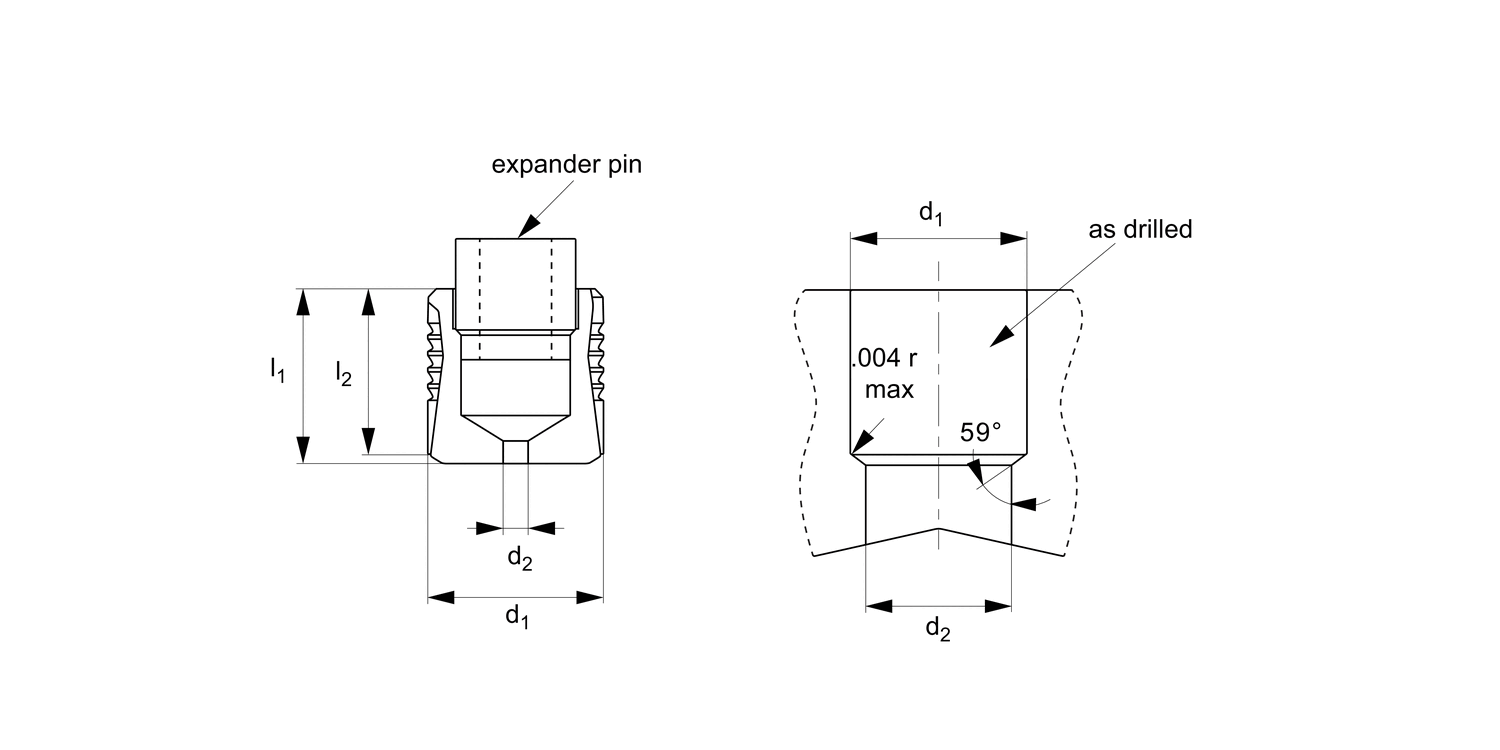

d1
+0
0,2500 -0,0012"
d2
±0.001
0,012-0,105"
d3
±0.010
0,2500"
d4
max.
0,220"
l1
±0.010
0,259"
l2
±0.010
0,247"
l3
min.
0,247"
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
A2 Stainless steel.
Calibrated hole diameter (d2).
Technical Notes
For restricting flow.
Select size required then add -xxx which indicated reduced hole diameter (d2), eg P0198.090-015 indicated a 9mm bore size with a 0.015" orifice.
Tips
Metric dimensions in mm.
Imperial dimensions in inches. ( Length Tolerance ±0,006)
Important Notes
Please refer to technical pages for product installation details.
Product Datasheets
Alternative products you may wish to consider
