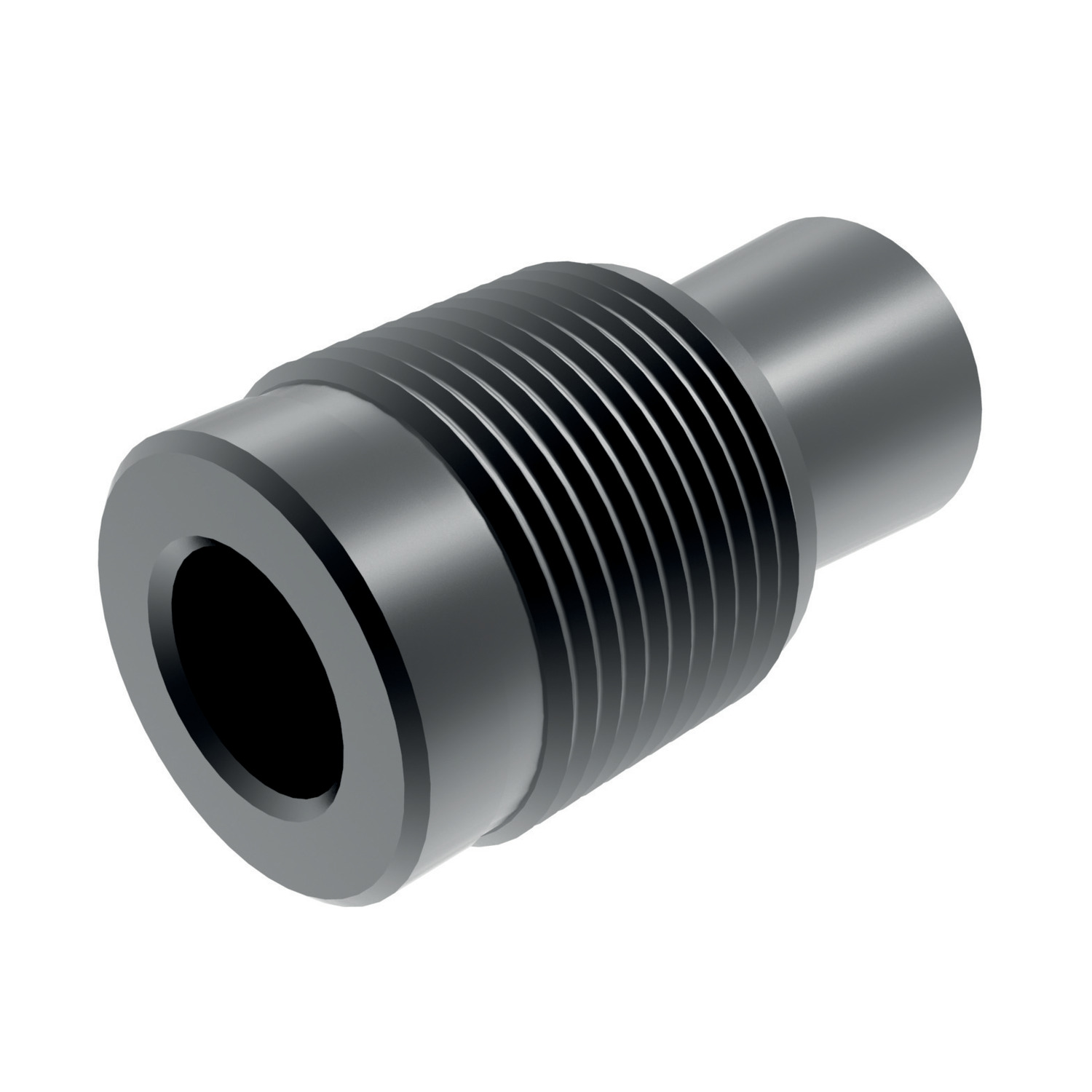

P0195 Pull Sealing Plugs

Name: P0195.180
Brand: WC
SKU: P0195.180

material: Steel

Article properties

Order No.

P0195.180

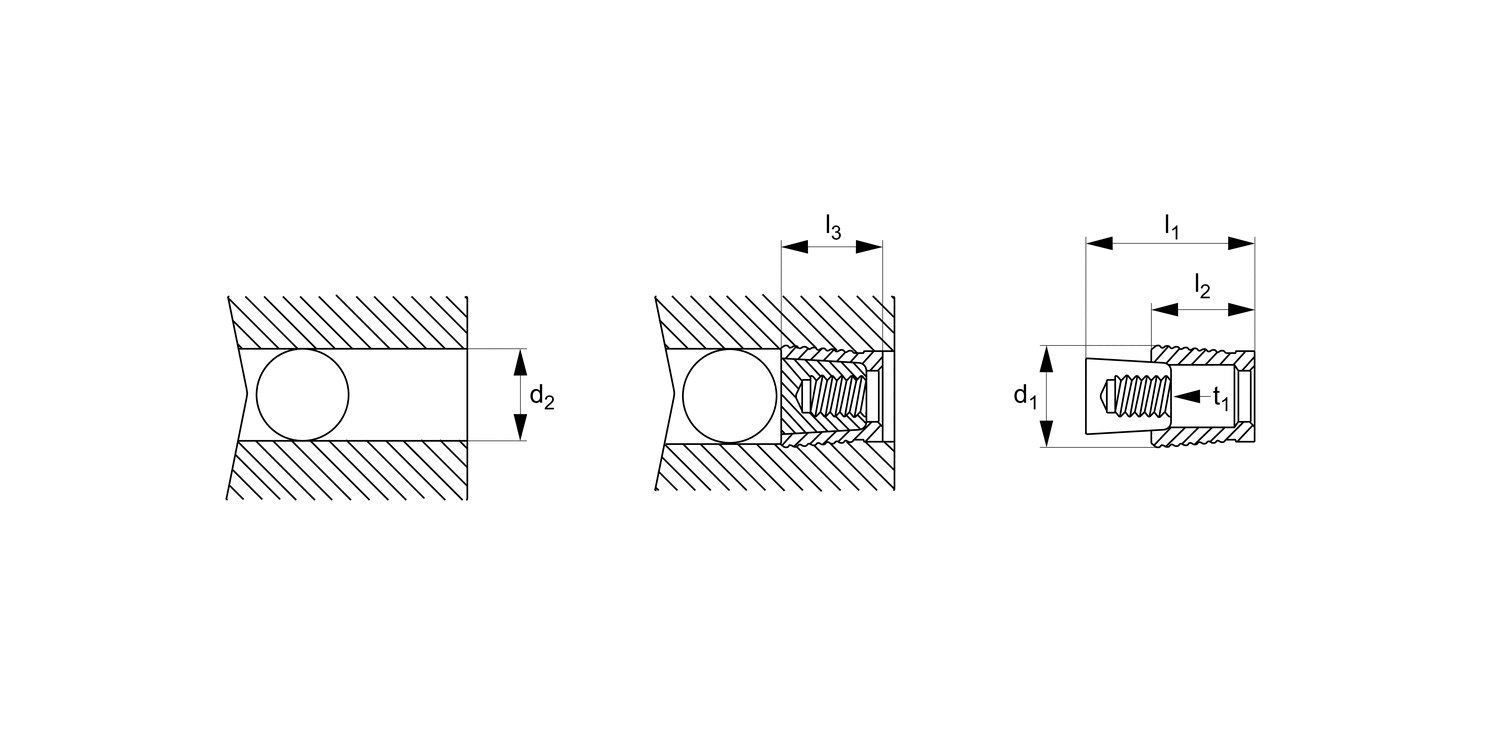

d₁

18.0

d₂ +0.1|-0.0

18.0

l₁

31.5

l₂

18.5

l₃

19.0

t₁

5/16-18 UNC

See full product selection

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-99	-	0%
100-249	-	10%
250-499	-	15%
500-999	-	20%
1000+	-	25%

Download product datasheet

Technical & Application

Material

Sleeve: case-hardened steel, black oxide finish.
Pin: heat-treatable steel, black oxide finish.

Technical Notes

These high pressure sealing plugs are used to blank off externally drilled holes for air and gas.
No need for tapping, reaming, machining of O-ring grooves or the use of tapes or sealants.

Important Notes

Please refer to technical pages for product installation details.
