L3559 Manual Rotary Stage Ø125

Name: L3559.DRO
Brand: WC
SKU: L3559.DRO
Price: 1128.6 EUR
Availability: OutOfStock

with digital read out, material: Aluminium

Article properties

Order No.

L3559.DRO

Type

Digital readout

Travel

Horizontal load max. kg

Vertical load max. kg

Moment load max. Nm

Repeatability ± arc-secs

Accuracy ± arc-secs

Gear ratio

Resolution ± arc-secs

Weight kg

See full product selection

£ 1,128.60 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-1	£ 1,128.60	0%
2-4	£ 1,072.17	5%
5+	£ 1,015.74	10%

Download product datasheet

Technical & Application

Material

Aluminium alloy body (light, stiff and stable), black anodised.
Weight 3,6 Kg.

Technical Notes

The design utilises a single preloaded crossed roller bearing system for the table movement. This eliminates the use of dual bearing configuration, thus improving axial runout and wobble.
The stages are offered with different gear ratio options. A proprietary preload system ensures zero backlash in the gear train.
The travel is 360° continuous.
Resolution 0.00225°.

Tips

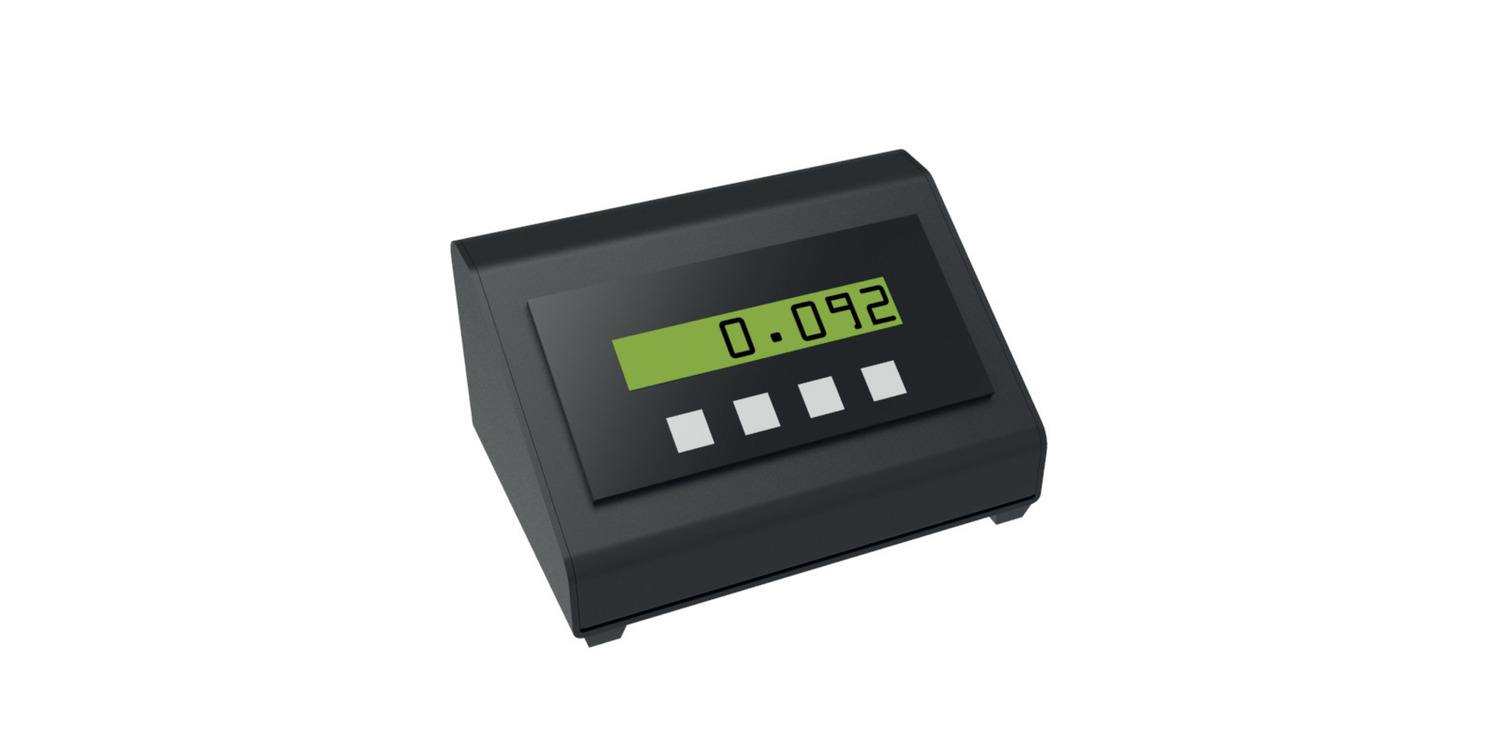

A precision rotary encoder provide positional information to a small digital readout (DRO) unit. Positive and negative measurements.
Includes 12V power adapter.
Seven 12mm high numeric digits with blue
