Fully Telescopic
ultra heavy-duty
L1996 Fully Telescopic Slides
ultra heavy-duty, material: Steel
Order No.
L1996.63-1730L
Type
Left

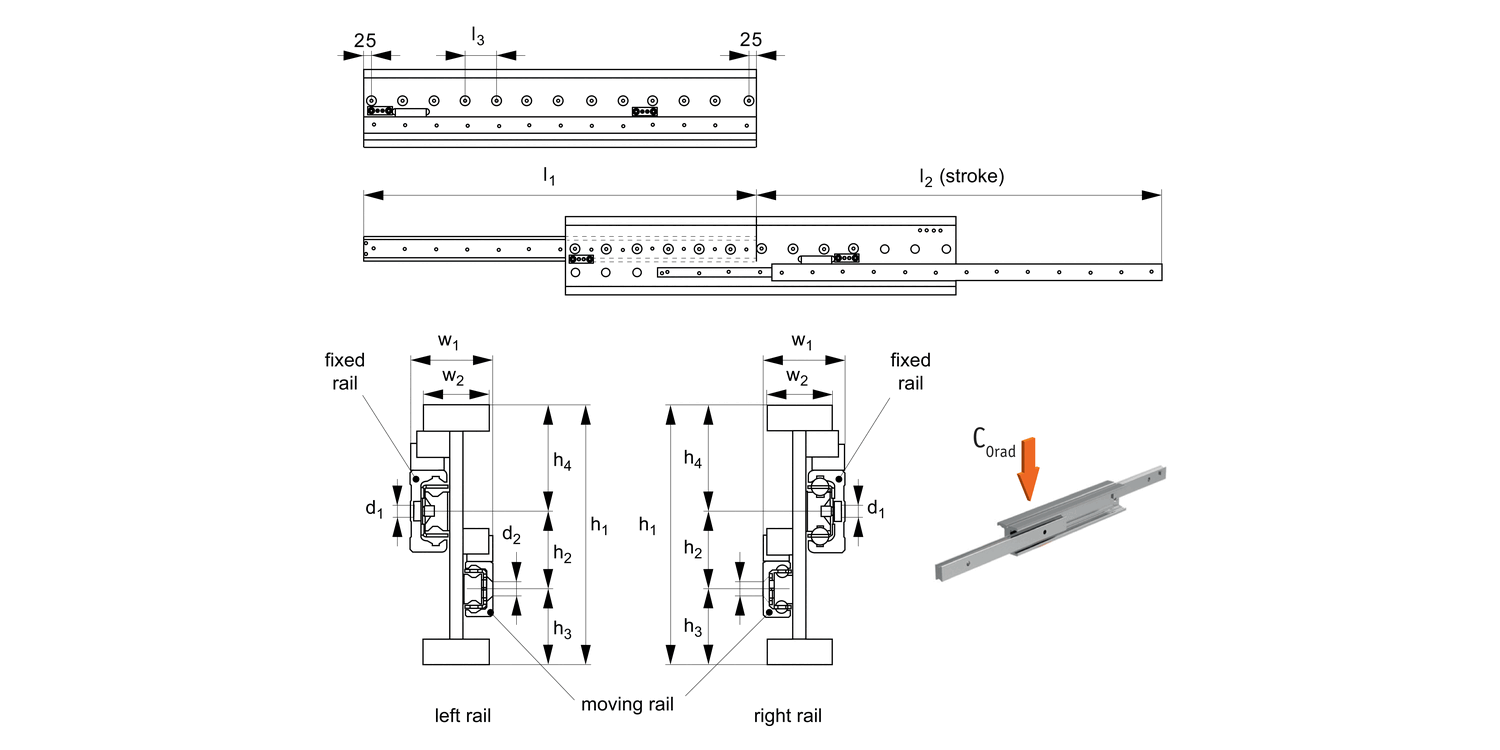

l1
1730
l2 stroke
1771
h1
200
h2
60
h3
58.5
h4
81.5
l3
80
w1
63
w2
50
d1 for
M8
d2 for
M8
Fixed part acc. holes /total
16/22
Moving part acc. holes /total
17/22
Load (per rail) C0 rad
max.
N
15190
£ 3,403.12 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 3,403.12 | 0% |
| 3-4 | £ 3,232.96 | 5% |
| 5-9 | £ 3,062.81 | 10% |
| 10+ | £ 2,722.50 | 20% |
Technical & Application
Material
Cold drawn bearing steel, raceways hardened to 60 HRc. Balls - hardened steel.
Zinc coating to ISO 2081 (excluding raceways). Corrosion resistant coatings available on request.
Technical Notes
These are ultra-heavy load capacity. They can support heavy loads with continuous movements 24 hours per day, 7 days a week - even with vibration and high stroke frequency.
Weight: 43 Kg/metre.
C0rad is the load rating for a single telescopic slide.
Moving rail must be lower rail (unless technical department consulted).
Tips
d1 for low head socket cap screws (DIN 7984), d2 for countersunk head screws (DIN 7991).
Double direction stroke versions can be provided on request.
