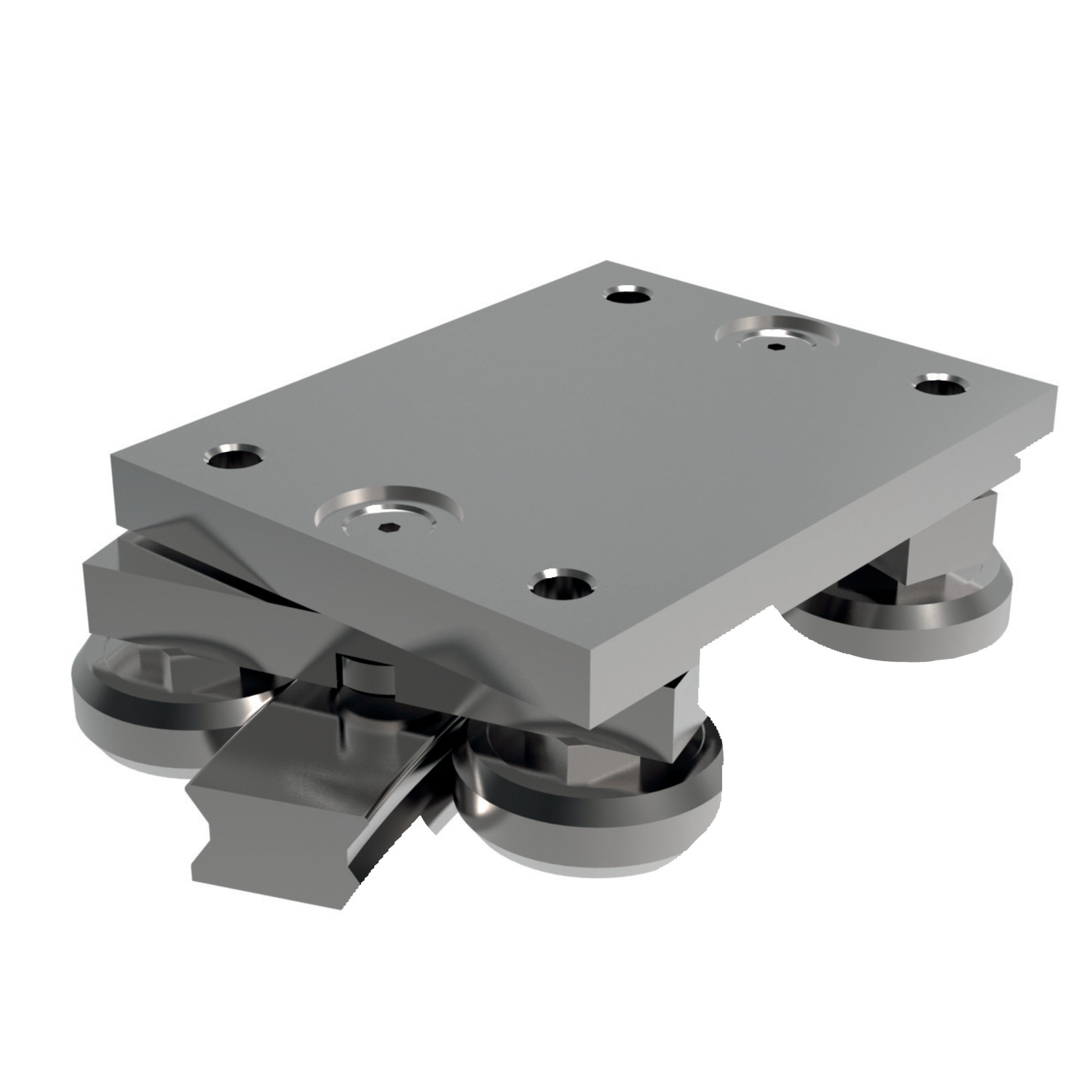

L1979.CR16 Curviline Sliders

Name: L1979.CR16-070
Brand: WC
SKU: L1979.CR16-070
Price: 896.61 EUR
Availability: OutOfStock

Stainless steel; size 16, material: Stainless steel

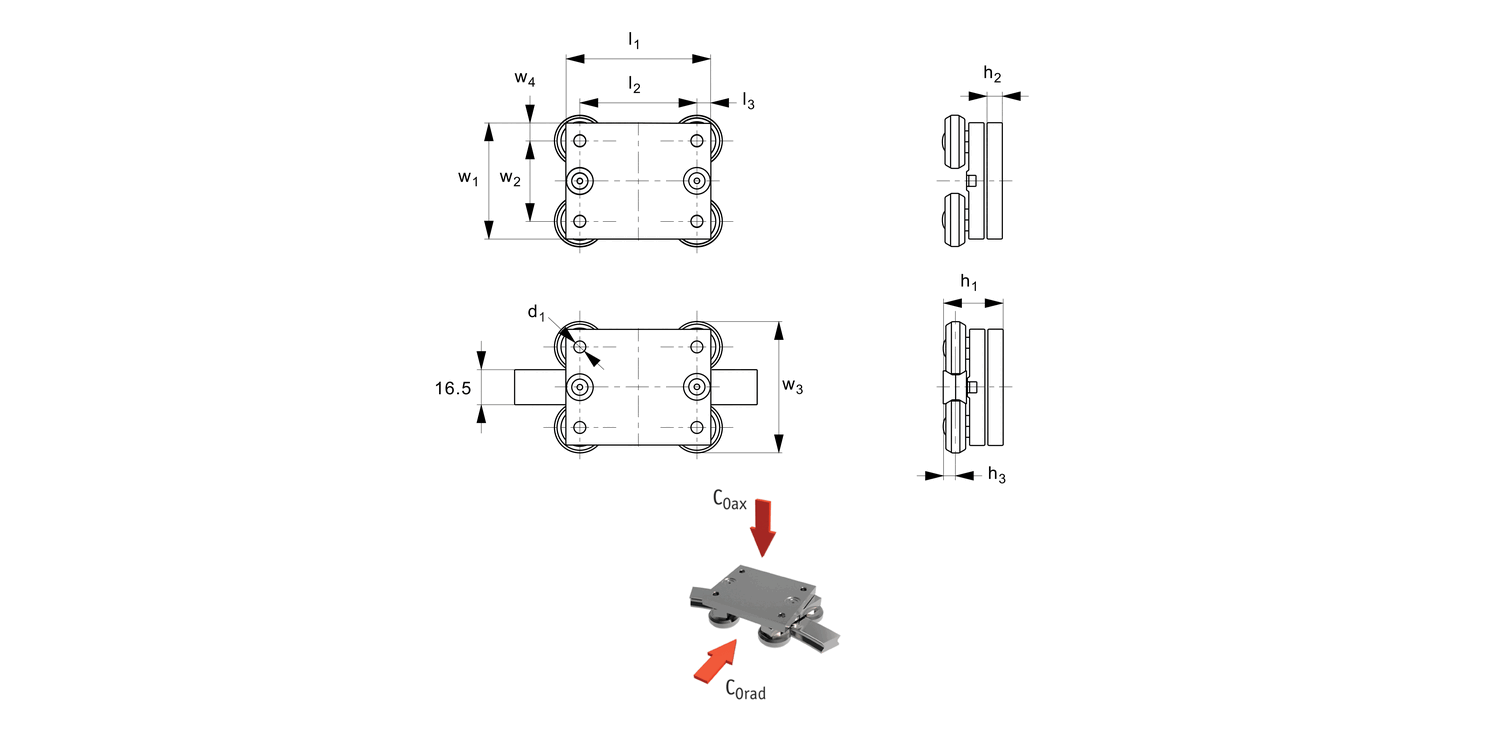

Article properties

Order No.

L1979.CR16-070

w₁

h₁

32.3

d₁

h₂

h₃

5.7

l₁

l₂

l₃

w₂

w₃

w₄

Load C_{0 rad} max. N

570

Load C_{0 ax} max. N

400

Weight kg

0.45

See full product selection

£ 896.61 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 896.61	0%
5-9	£ 851.78	5%
10-19	£ 806.95	10%
20-49	£ 762.12	15%
50+	£ 672.46	25%

Download product datasheet

Technical & Application

Material

Slider body: AISI 316L. Roller AISI 440.

Technical Notes

Where moment loads are present, use two or more sliders.
Temperature range -30oC to +100oC.

Tips

All stainless available.
Other coatings and finishes are also available.
