High Load Rails
size 28

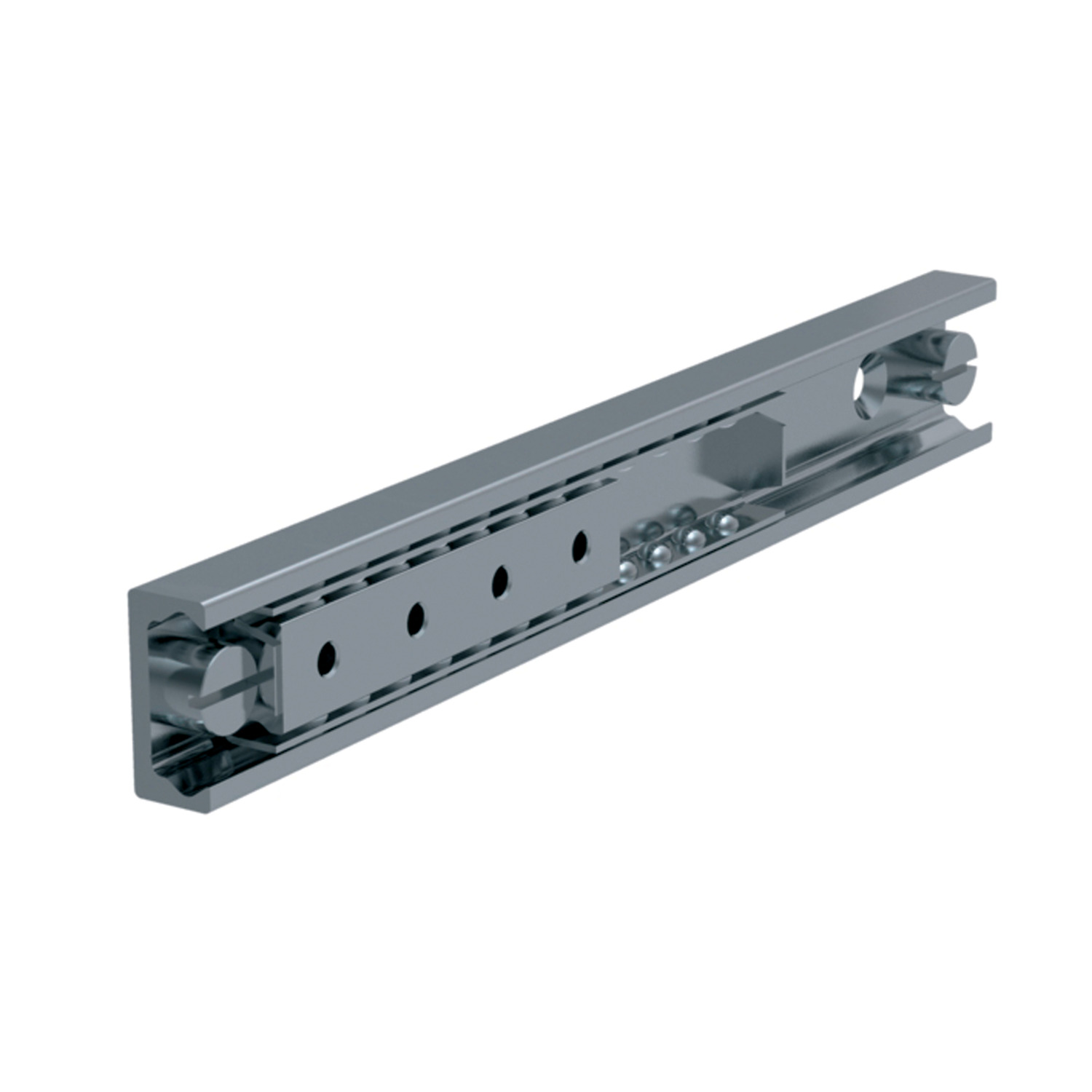

L1972.28 Easy Slide - Size 28
material: Steel
Order No.
L1972.S2808003300450

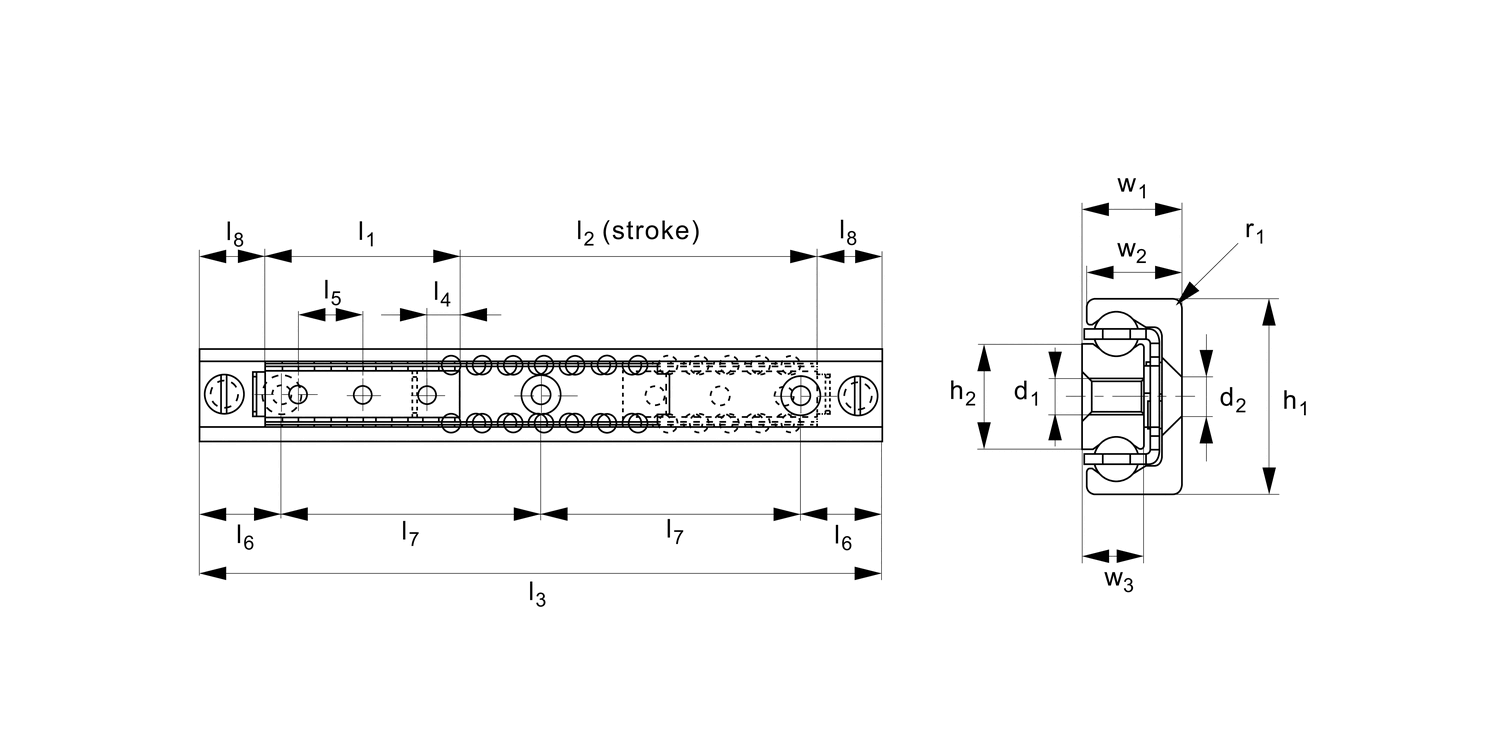

l1
80
l3
450
l2 stroke
330
h1
28
w1
13
d1
M5
d2 for
M5
Load C0 ax
max.
N
3248
Load C0 rad
N
4640
Mx
Nm
23
My
Nm
45
Mz
Nm
65
l4
10
l5
20
Holes/ slider
4
l6
25
l7
80
l8
20
h2
15
w2
12.25
w3
7.5
R
1
£ 162.81 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 162.81 | 0% |
| 5-19 | £ 146.53 | 10% |
| 20-39 | £ 130.25 | 20% |
| 40-99 | £ 113.97 | 30% |
| 100+ | £ 97.69 | 40% |
Technical & Application
Material
Cold drawn steel, zinc plated (excluding raceways). Induction hardened raceways.
High precision, bearing steel balls with steel cages.
Technical Notes
Smooth movement, with very little friction (less than 0,01). Speeds up to 0,8 m/s.
To ensure all fixing holes in the rail are accessible l1 must be < (l3 / 2) - (2 x l8). To ensure proper smooth movement the stroke, l2 must be < 7 x l1.
Rail weight: 1,0 Kg/m.
Tips
Must be mounted to a rigid structure. Stroke end stops must be fitted.
Only to be used for horizontal movements.
