8Ø Shafts
L1778.30 30Ø Aluminium Shafts
material: Aluminium
Order No.
L1778.30-2000

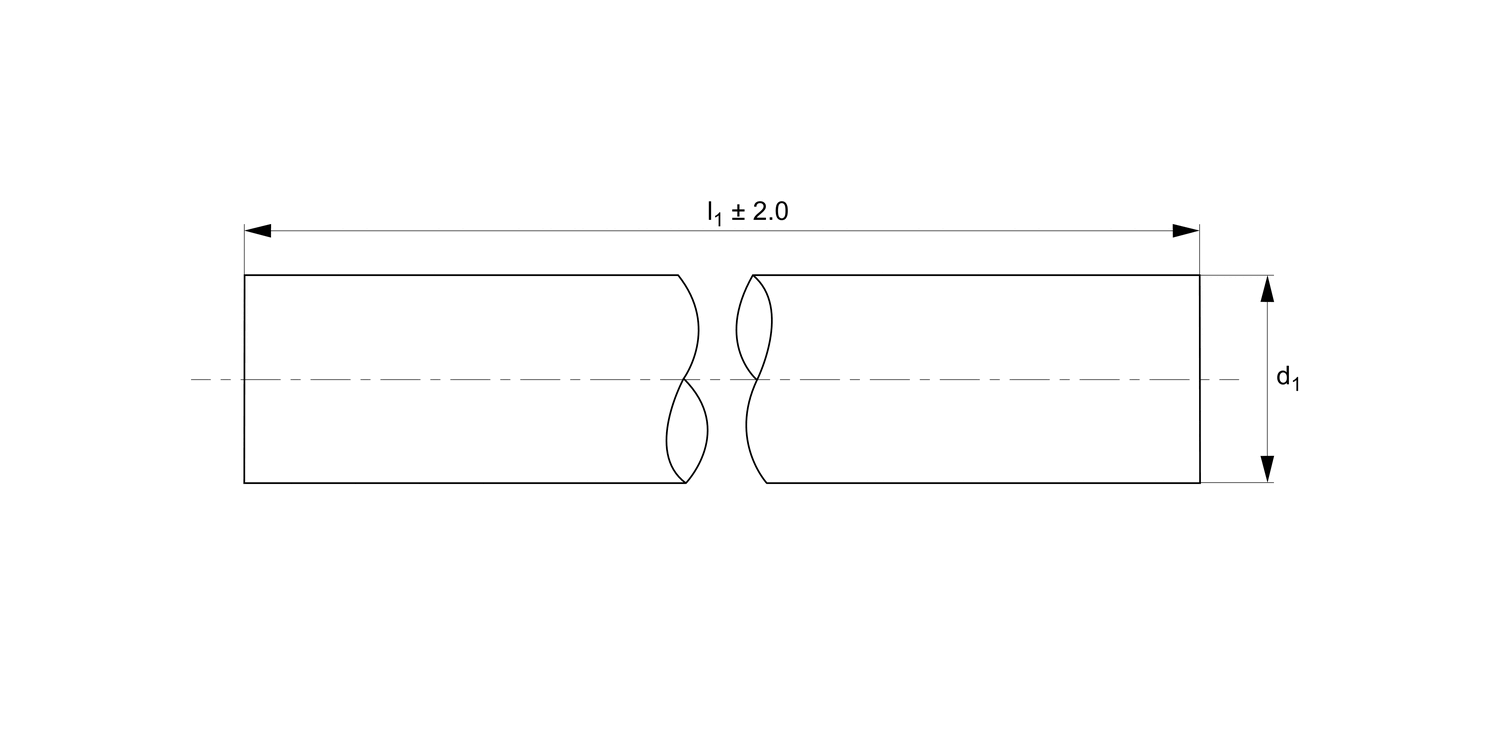

d1
tol. h8
30
l1
2000
Tolerance µ
tol. h6
+0,-9
£ 512.98 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 512.98 | 0% |
| 5-9 | £ 487.33 | 5% |
| 10-19 | £ 461.68 | 10% |
| 20-49 | £ 436.03 | 15% |
| 50+ | £ 384.74 | 25% |
Technical & Application
Material
Aluminium EN AW 6061/6060
Surface: Hard anodized
Hardness: 450-550 HV
Technical Notes
Designed to be used with self-lubricating ceramic bushings (part no.s L1764 to L1769).
Temp. range -130°C to +200°C.
Non-magnetic, contaminants do not stick to surface, coating is FDA compliant, lightweight.
Tips
Shaft ends are not coated as standard, however coated ends are available on request.
Modifications, drilled and tapped holes, circlip grooves, special coatings etc. available.
Shafts lengths are cut to typically ± 2mm.
