6Ø AISI 303 Shafts
Stainless steel

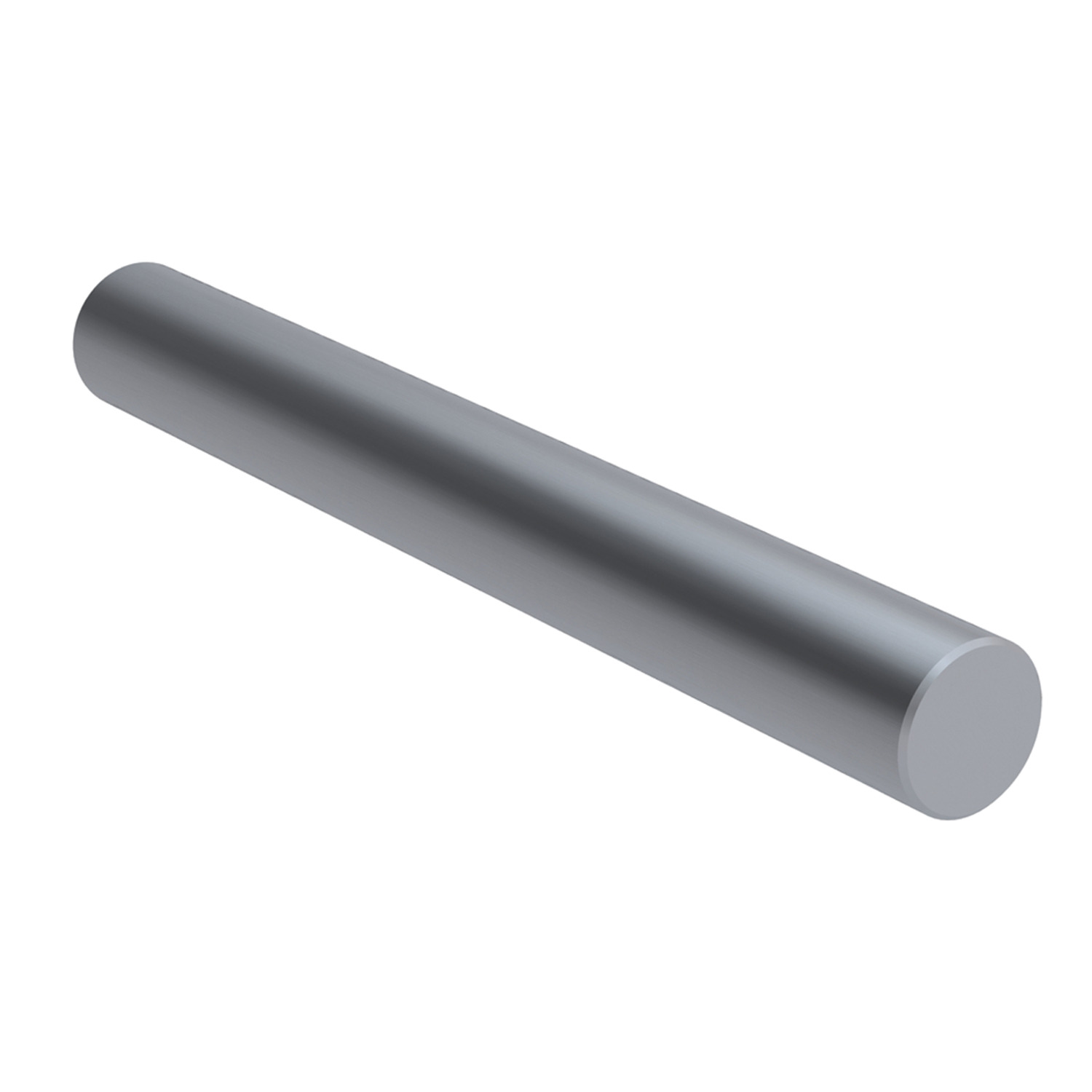

L1773.06 6Ø Stainless AISI 303 Shafts
soft, material: Stainless steel
£ 25.24 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 25.24 | 0% |
| 10-24 | £ 22.72 | 10% |
| 25-49 | £ 21.45 | 15% |
| 50-99 | £ 20.19 | 20% |
| 100-249 | £ 18.93 | 25% |
| 250+ | £ 17.67 | 30% |
Technical & Application
Material
Stainless steel AISI 303 (1.4305, X10CrNiS18-19), surface finish 0.3-0.6µ Ra, ground and polished to 8-12 cla.
1% Yield strength (Rp1.0): >=225 N/mm2, Tensile strength (Rm): 500-750 N/mm2.
Technical Notes
Tolerance, h6 standard, other tolerances on request.
Straightness 0,3mm/m.
Tips
Modifications, drilled and tapped holes, circlip grooves, special coatings etc. available.
Shafts lengths are cut to typically ± 2mm.
To be used with ceramic or other bearings not containing hardened ball bearings.
