Ball Slide Assemblies
anti-creep
L1038 Anti-Creep Ball Slide Assemblies
material: Aluminium
Order No.
L1038.014-025
Stroke
25
Load
max.
kg
4

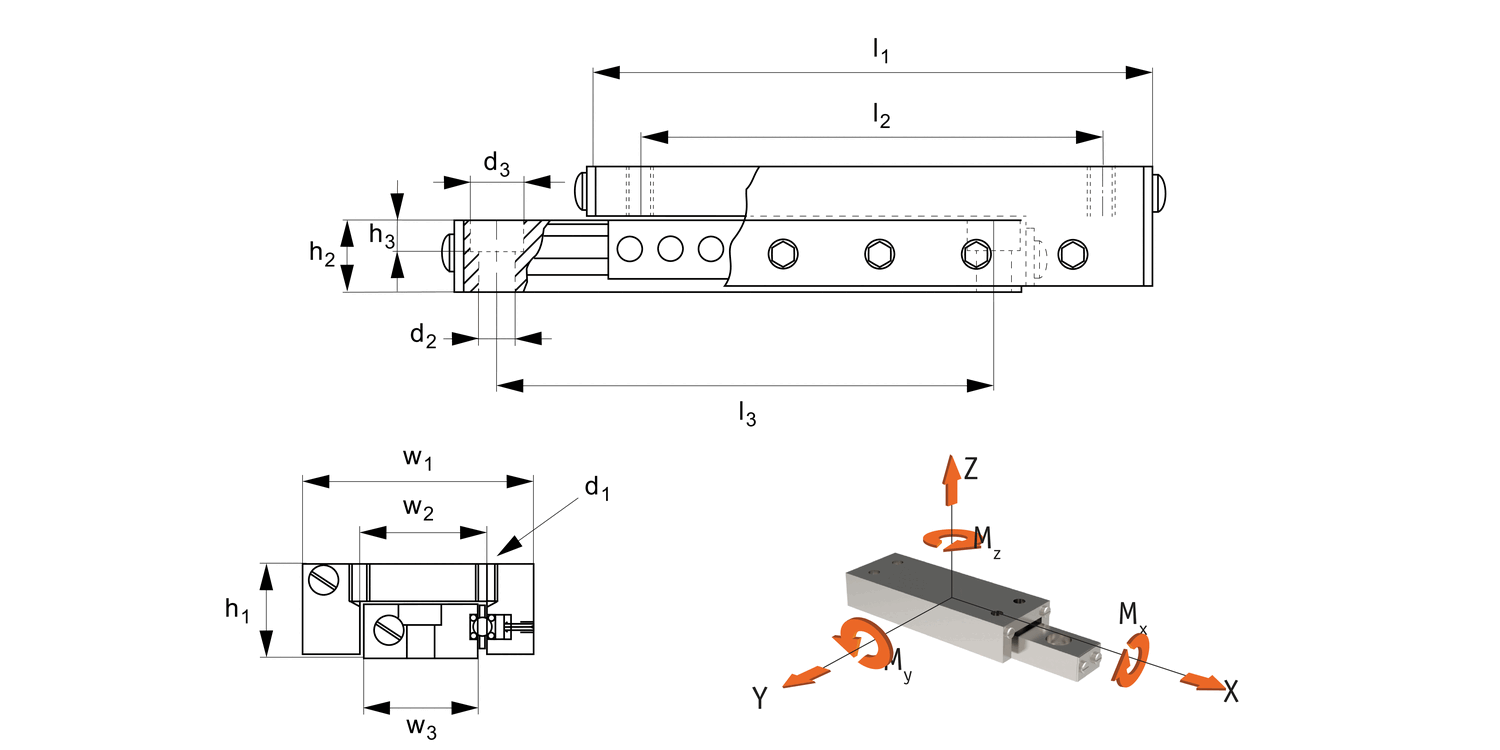

w1
14.2
l1
52.0
h1
8.0
l2
41.0
w2
6.0
h2
4.7
w3
6.4
l3
35.0
Weight
g
14
d1
M2
d2
2.2
d3
4.0
h3
2.2
Moment Mx
max.
Nm
1.2
Moment My
max.
Nm
4.5
Moment Mz
max.
Nm
4.7
Counterbore screw size
M2
£ 156.12 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 156.12 | 0% |
| 3-4 | £ 148.31 | 5% |
| 5-9 | £ 140.51 | 10% |
| 10+ | £ 124.90 | 20% |
Technical & Application
Material
Aluminium carriage (clear anodized) and base (black anodized).
Hardened stainless steel balls, shafts and preload gibs.
Technical Notes
Straight line accuracy: 13µ/25mm of travel.
Positional repeatability: 5µ.
Coefficient of friction: 0,003.
Increased life with overhanging loads.
Low friction, straight line design.
Factory preload controls side play and backlash.
Particularly useful for vertical applications.
Tips
In certain applications - uneven loads, vertical mounting or offset forces can cause standard ball retainers to become misaligned - leading eventually to a reduction in travel, the need for higher forces for full travel and ultimately failure of the assembly.
The anti-creep retainer used in these units prevents ball retainer misalignment and helps keep the rolling elements centred in the assembly - increasing assembly life and performance.
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
