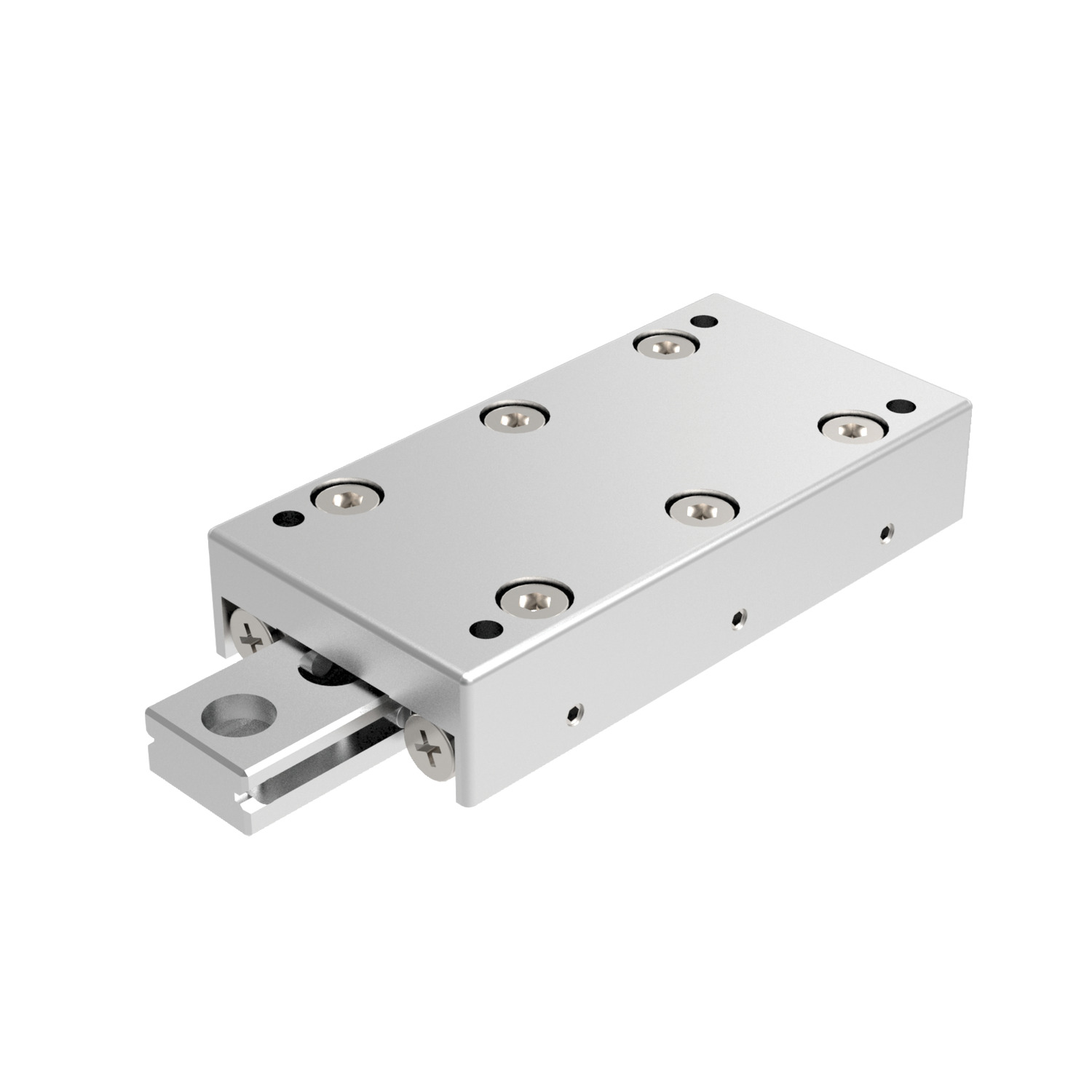

L1027.SS Low Profile Crossed Roller Table

Name: L1027.030-030-SS
Brand: WC
SKU: L1027.030-030-SS
Price: 286.62 EUR
Availability: OutOfStock

anti-corrosion, nickel plated, material: Steel

Article properties

Order No.

L1027.030-030-SS

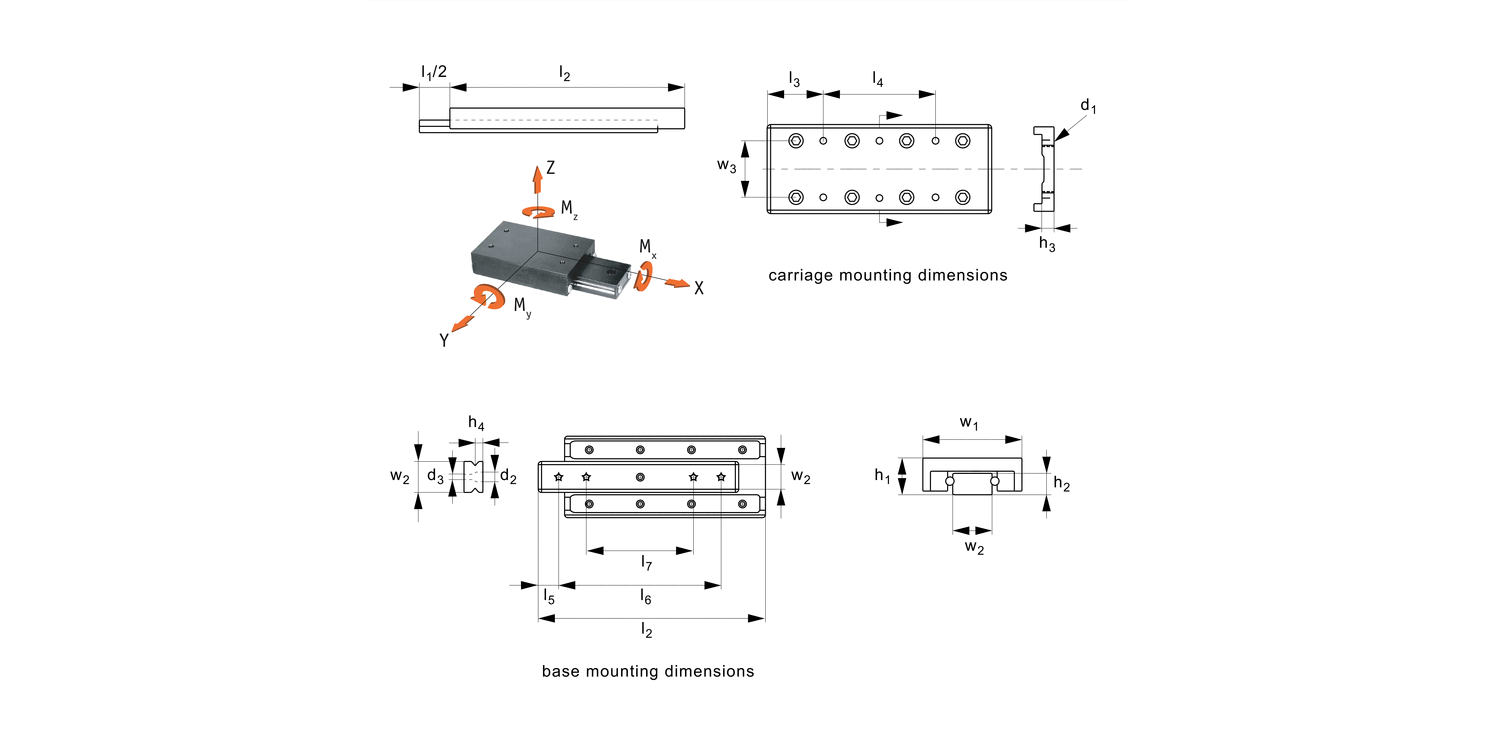

Stroke l₁

Load max. kg

w₁ ±0.1

l₂

h₁ ±0.1

l₃

3.5

l₄

1x43

l₅

7.5

l₆

l₇

w₂

12.0

w₃

h₂

h₃

5.5

h₄

3.8

d₁

d₂

6.1

d₃

Moment M_x max. Nm

3.71

Moment M_y max. Nm

6.49

Moment M_z max. Nm

6.80

No. of base holes

No. of carr holes

See full product selection

£ 286.62 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 286.62	0%
5-9	£ 257.96	10%
10-19	£ 243.63	15%
20-49	£ 214.97	25%
50+	£ 186.30	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel body (S50C), nickel plated.
Nickel plated cross roller rails and fasteners, steel rollers, stainless steel roller cages.

Technical Notes

Straight line accuracy: 3µ/25mm of travel.
Positional repeatability: 3µ.
Coefficient of friction: 0,003.

Tips

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
