Ball Slide Assemblies
standard precision

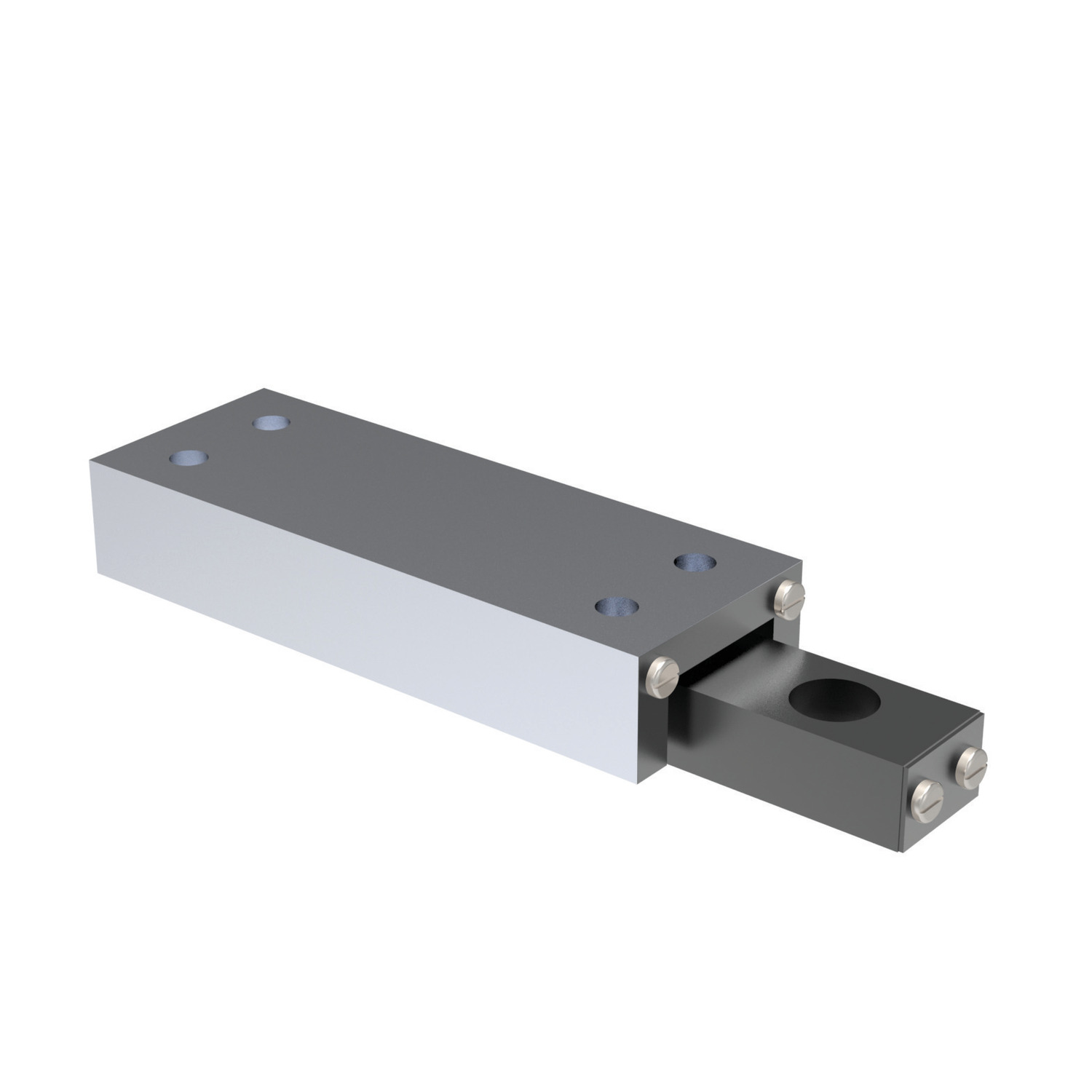

L1024 Ball Slide Assemblies
standard precision, material: Aluminium
Order No.
L1024.010-008
Stroke
8
Load
max.
kg
0.34
w1
9.5
l1
13.3
h1
5.8
l2
6.0
w2
4.0
h2
3.4
w3
4.0
l3
6.0
Weight
g
2
d1
M2
d2
M2
d3
-
h3
-
Counterbore screw size
n/a
Moment Mx
max.
Nm
0.02
Moment My
max.
Nm
0.01
Moment Mz
max.
Nm
0.01
£ 152.22 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 152.22 | 0% |
| 5-9 | £ 137.00 | 10% |
| 10-19 | £ 129.39 | 15% |
| 20-49 | £ 114.17 | 25% |
| 50+ | £ 98.94 | 35% |
Technical & Application
Material
Aluminium carriage clear anodized, base black anodized.
Hardened steel shafts and balls, mild steel end caps.
Technical Notes
Straight line accuracy: 13µ/25mm travel.
Positional repeatability: 5µ.
Coefficient of friction 0,003 typical.
Tips
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
Product Datasheets
Application images
