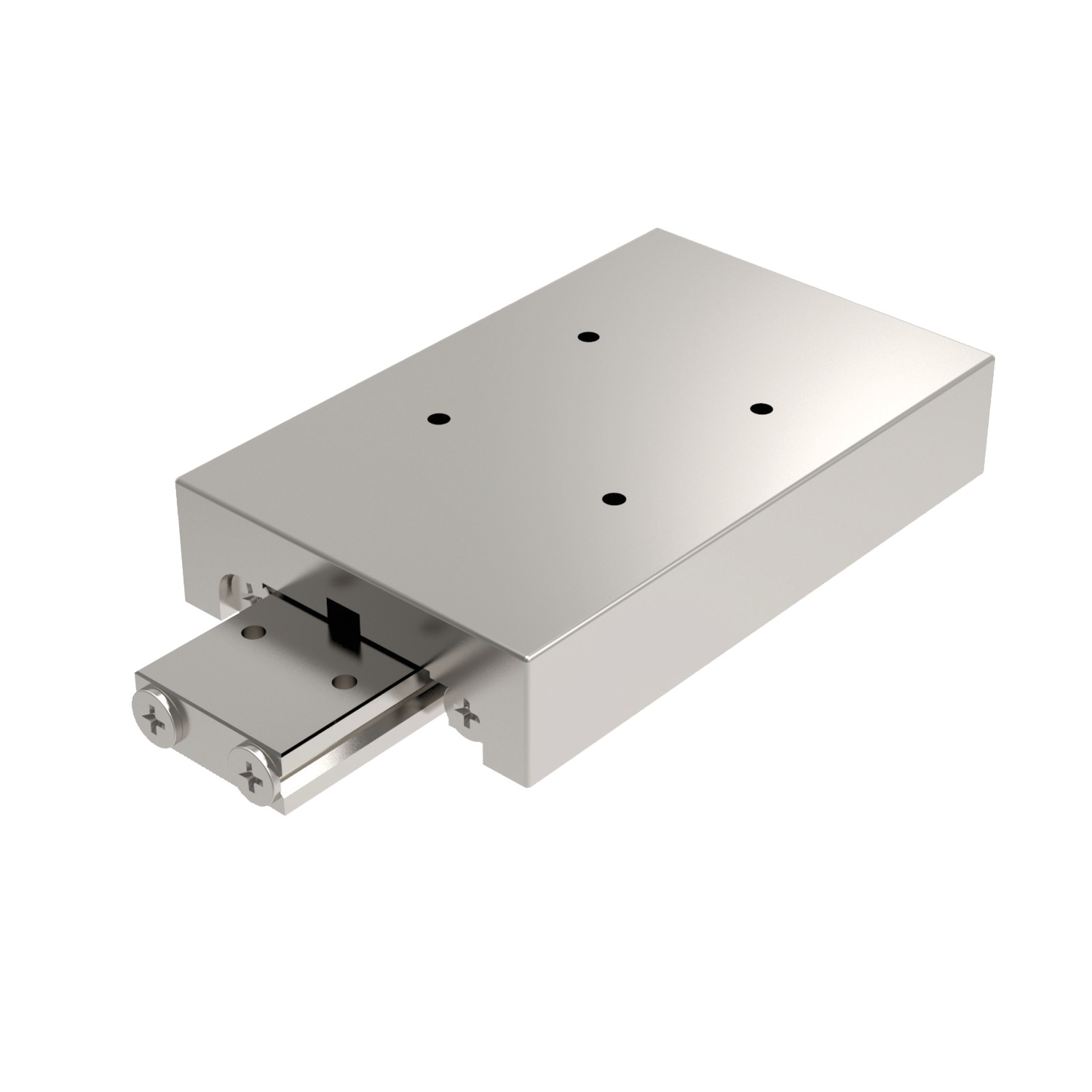

L1022.web Stainless Cross Roller Slides

Name: L1022.040-060
Brand: WC
SKU: L1022.040-060
Price: 396.56 EUR
Availability: OutOfStock

smaller sizes, material: Stainless Steel

Article properties

Order No.

L1022.040-060

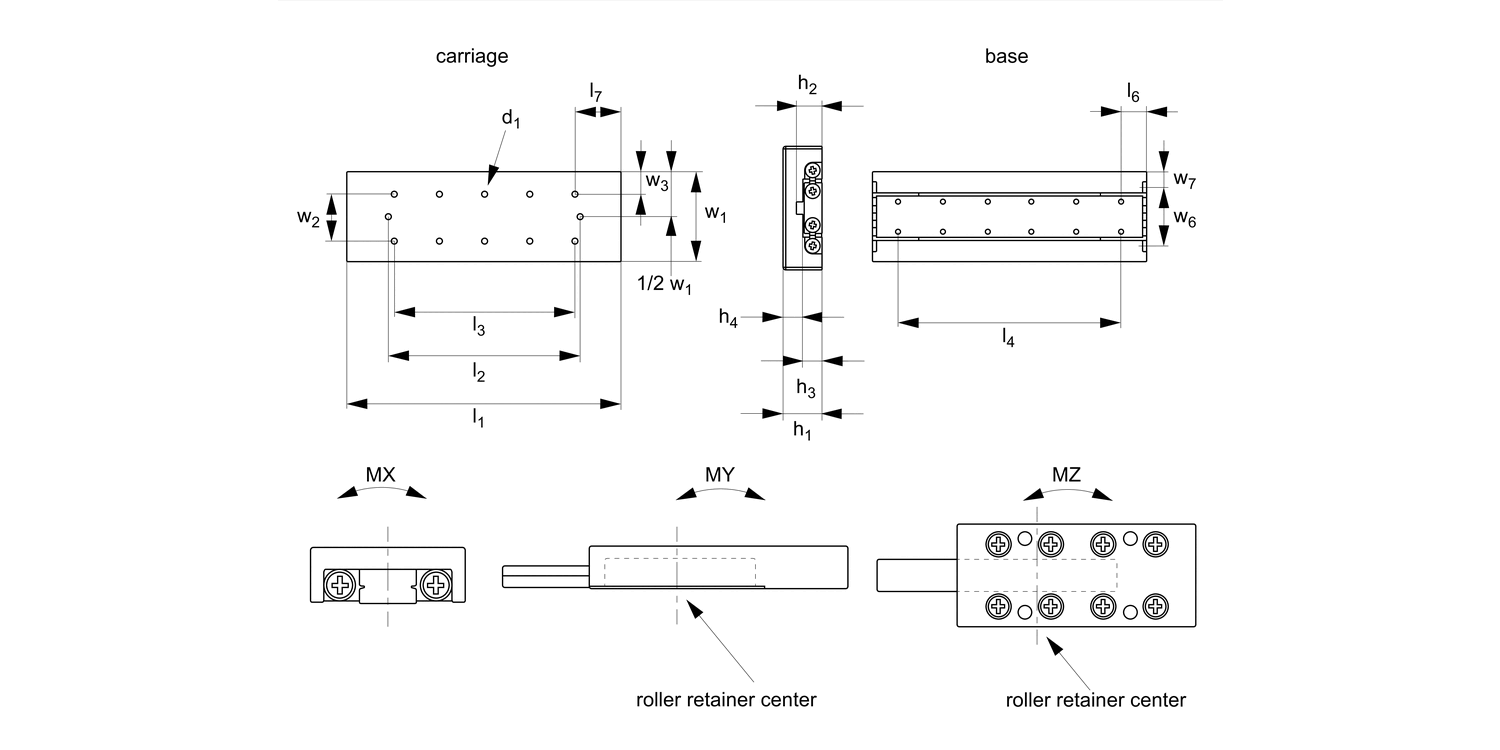

l₁

Stroke

Static load C₀ max. kN

6.0

w₁

l₂

12.0

h₁

Roller

3.0

l₃

l₄

l₅

l₆

17.5

w₂

w₃

12.5

Weight kg

0.52

w₄

13.1

w₅

13.5

w₆

w₇

h₂

h₃

h₄

d₁

Allowable load max. kN

2.0

Dyn. load C max. kN

3.6

Moment M_x max. Nm

56.8

Moment M_y max. Nm

40.6

Moment M_z max. Nm

45.7

See full product selection

£ 396.56 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 396.56	0%
5-9	£ 356.90	10%
10-19	£ 337.08	15%
20-49	£ 297.42	25%
50+	£ 257.76	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body stainless steel (440C), nickel plated apart from rail V groove. Retainer stainless (304), rollers stainless (440C).

Technical Notes

Carriage top parallelism 3µ.
Carriage side parallelism 5µ.
