Linear Cage
crossed roller

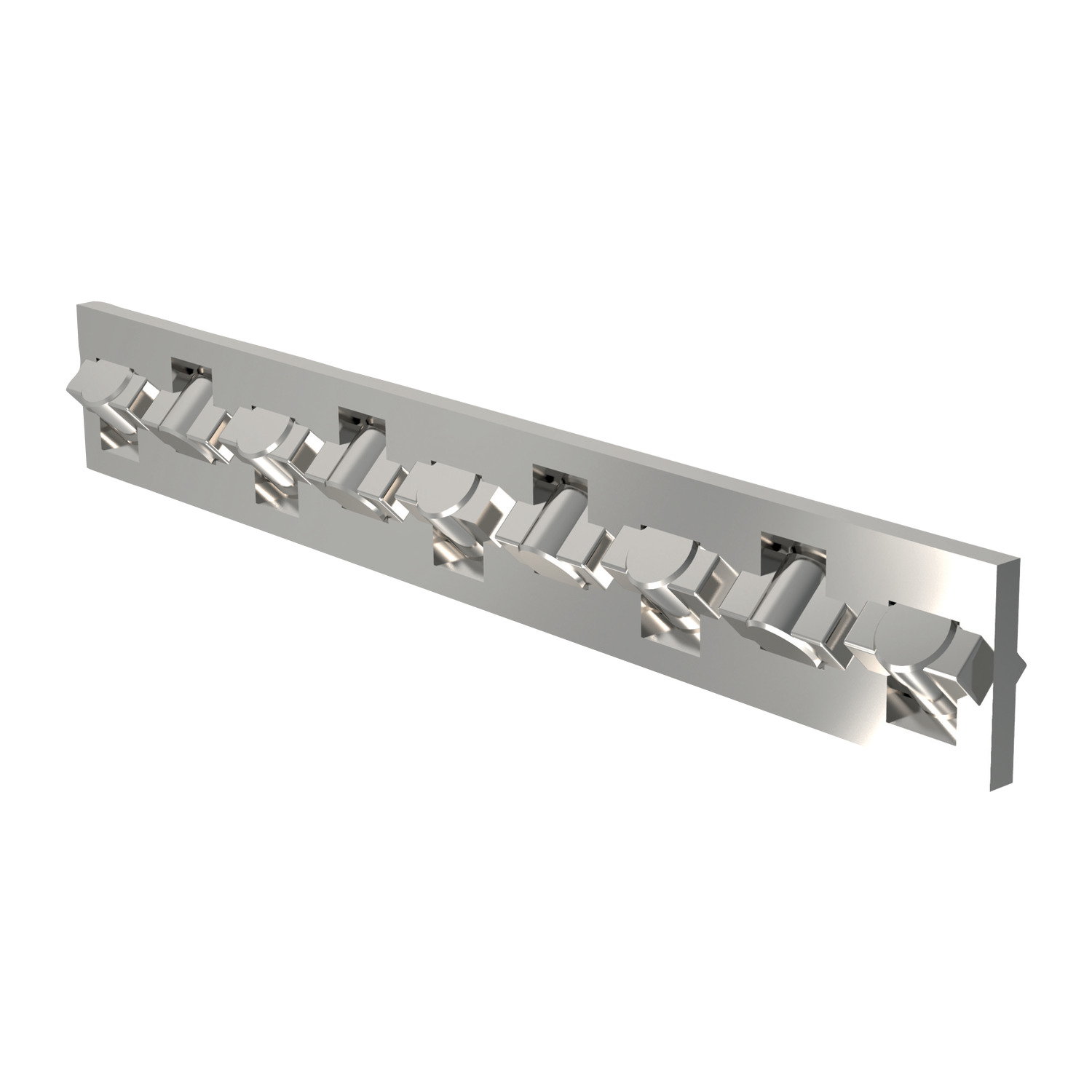

L1008.030-SS Linear Cage - Crossed Roller
stainless steel cage, material: Steel
Order No.
L1008.030-SS-0900

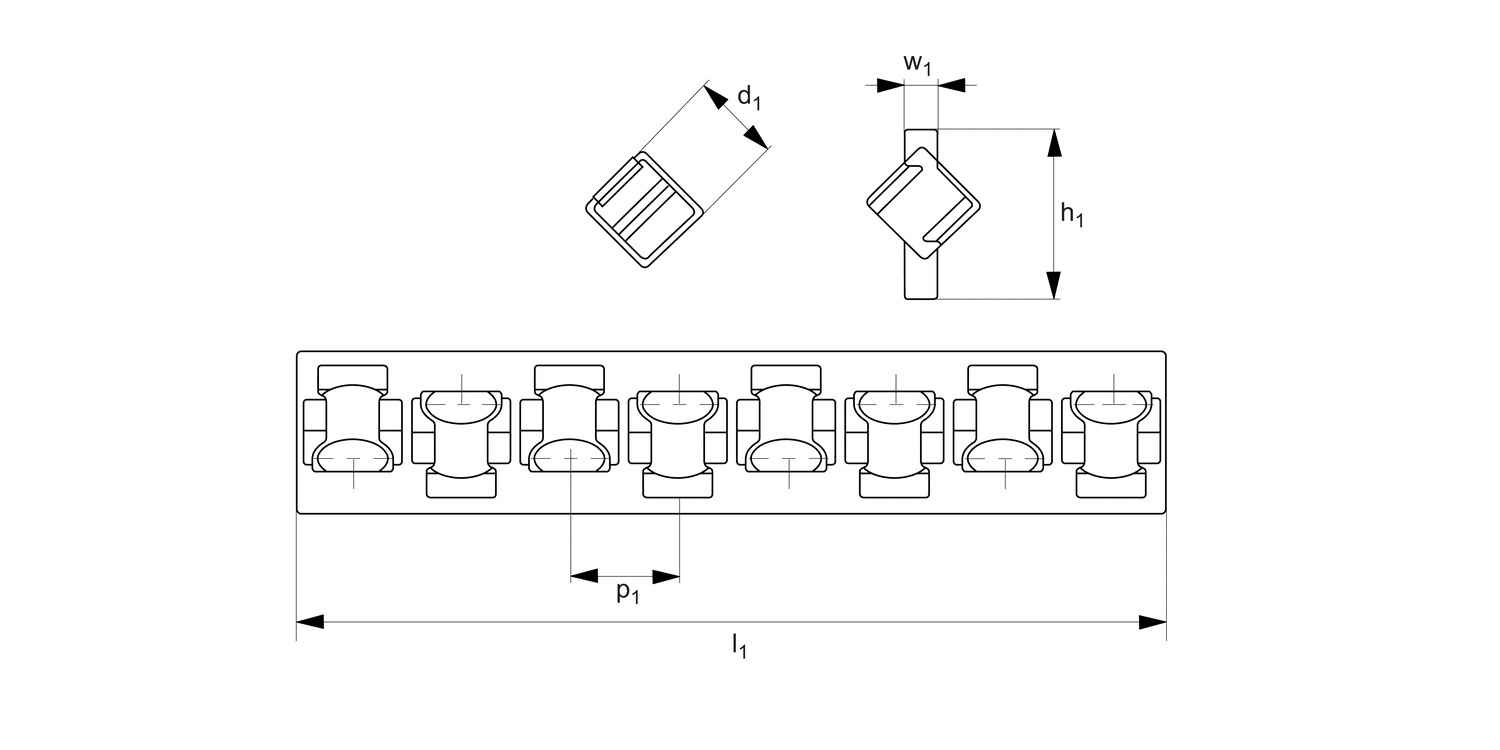

d1
3
p1
5
h1
7.5
l1
900
w1
0.4
No. of rollers
179
Dyn. load C
max.
N
114202
£ 49.12 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-99 | £ 49.12 | 0% |
| 100-199 | £ 34.38 | 30% |
| 200-499 | £ 31.93 | 35% |
| 500-999 | £ 29.47 | 40% |
| 1000-1999 | £ 24.56 | 50% |
| 2000-4999 | £ 19.65 | 60% |
| 5000+ | £ 17.19 | 65% |
Technical & Application
Material
Stainless rollers (440C), stainless cage (AISI 304).
Important Notes
For load ratings calculations the maximum recommended load is 1/3 of the max. static load.
