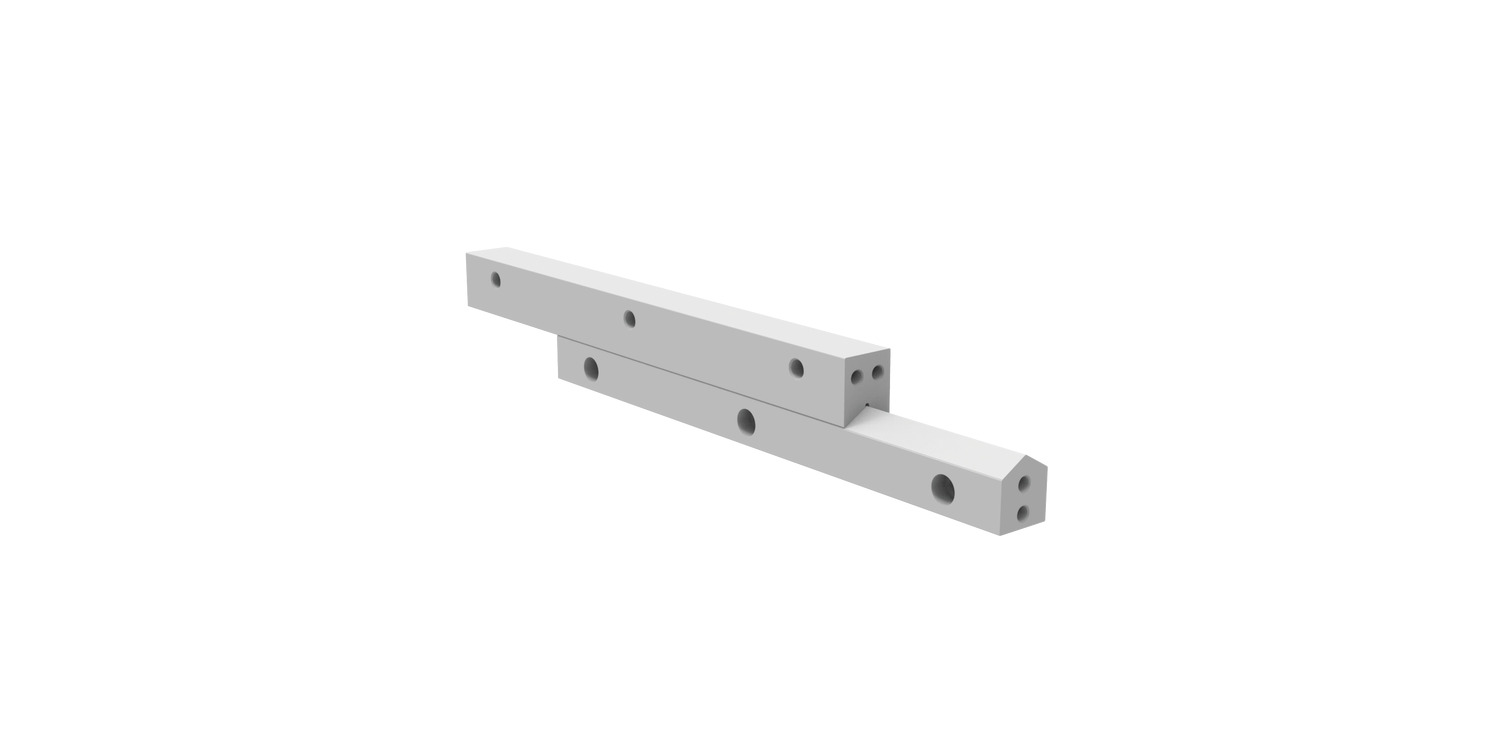

L1005.M Anti-friction Coated M Rail
medium load capacity, material: Steel
Order No.
L1005.M12-1100
Rail type
M
l1
1100
h1
+0|-0.3
58
w1
28
l2
100
l3
50.0
d1
M10
h2
33
h3
12.0
w2
8.2
d2
8.5
d3
15
Bearing surface width
cm
1.6
Weight
kg
6.18
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Hardened steel alloy (DIN 1,2842), coated with anti-friction material (Zedex 100).
Technical Notes
These are similar in size to the L1000 rails but are primarily used as dirt-proof units, to reduce system vibration and improve rigidity.
Working temperature must be less than 50°C.
Load capacity per unit (cm2) = 4500N (dynamic), 7500N (static).

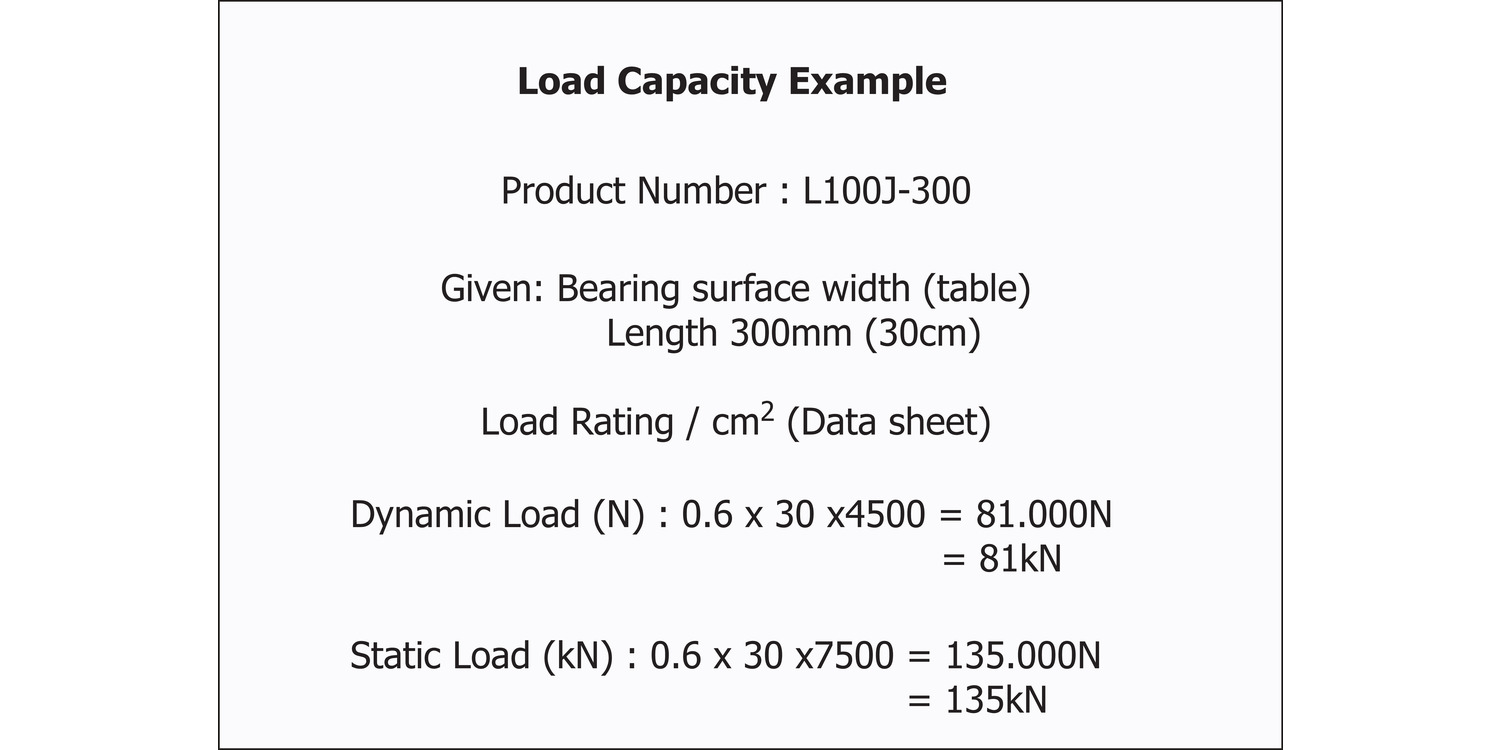

For total load capacity take width of bearing surface (in cm) x length (in cm) x load capacity (above).
Tips
Use with V rail L1005.V.
