Crossed Roller Rails
anti-creep
L1003 Anti-Creep Crossed Roller Rail Sets
corrosion resistant, material: stainless steel (AISI 440C)
Order No.
L1003.04-080
l1
80
Stroke
max.
62
h1
22
w1
11
l2
40
l3
40
h2
10
h3
4.5
w2
4.1
d1
4.3
d2
7.5
d3
M5
d4
Ø4
l4
20
l5
2
No. of rollers
8
Weight
kg
0.26
£ 405.00 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 405.00 | 0% |
| 5-9 | £ 364.50 | 10% |
| 10-19 | £ 344.25 | 15% |
| 20-49 | £ 303.75 | 25% |
| 50+ | £ 263.25 | 35% |
Technical & Application
Material
Stainless steel rail and rollers (AISI 440C), Ni plated apart from V groove. Hardness 60±2 HRC. Stainless steel rollers in brass retainer with special anti-creep mechanism (stainless 304).
Technical Notes

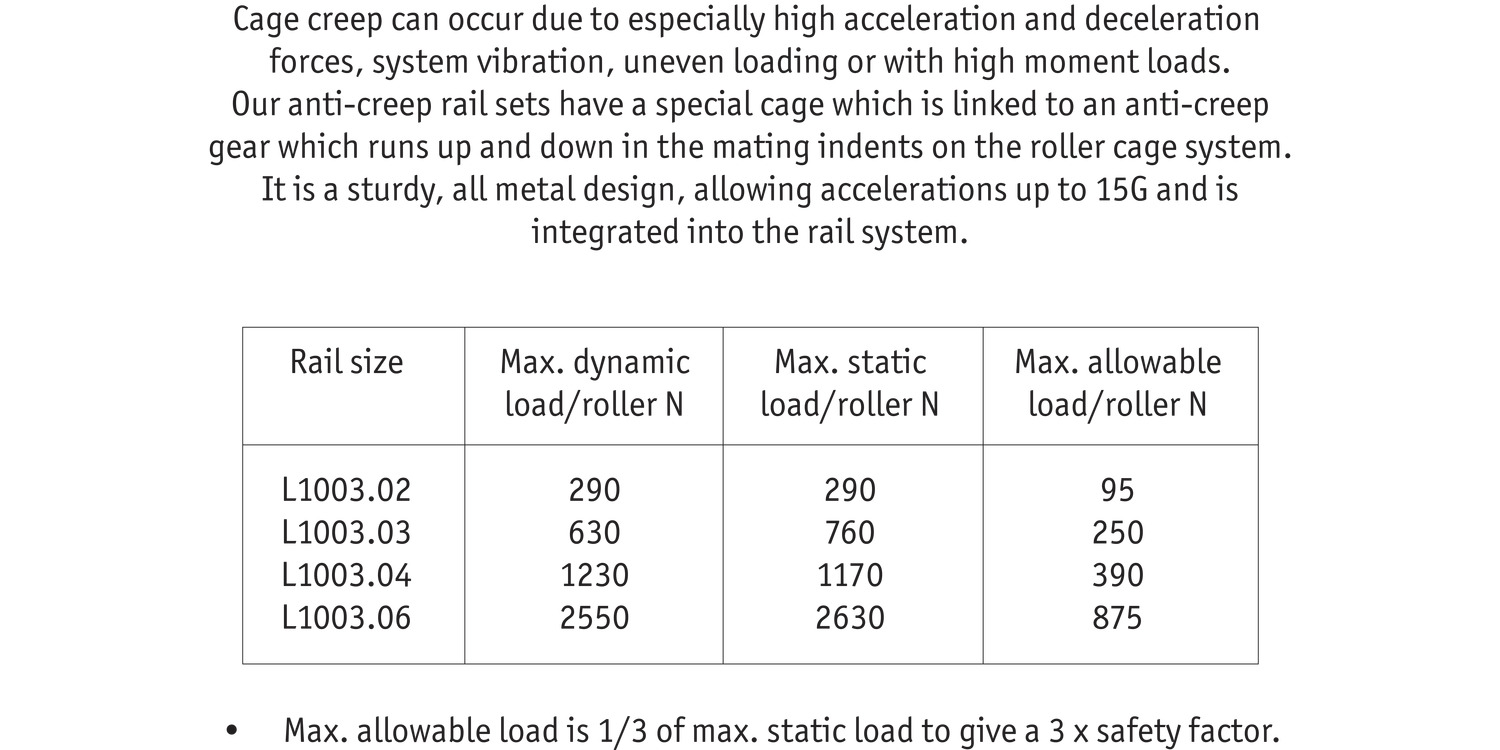

Supplied in sets of 4 rails (with 2 roller cages and 8 end screws as standard). See table for number of rollers in each cage and technical pages for load calculations (based on number of rollers).
Tips
These rail sets are designed for high acceleration applications, or systems with significant moment loads.
Product Datasheets
Application images
