A-V Cylinders

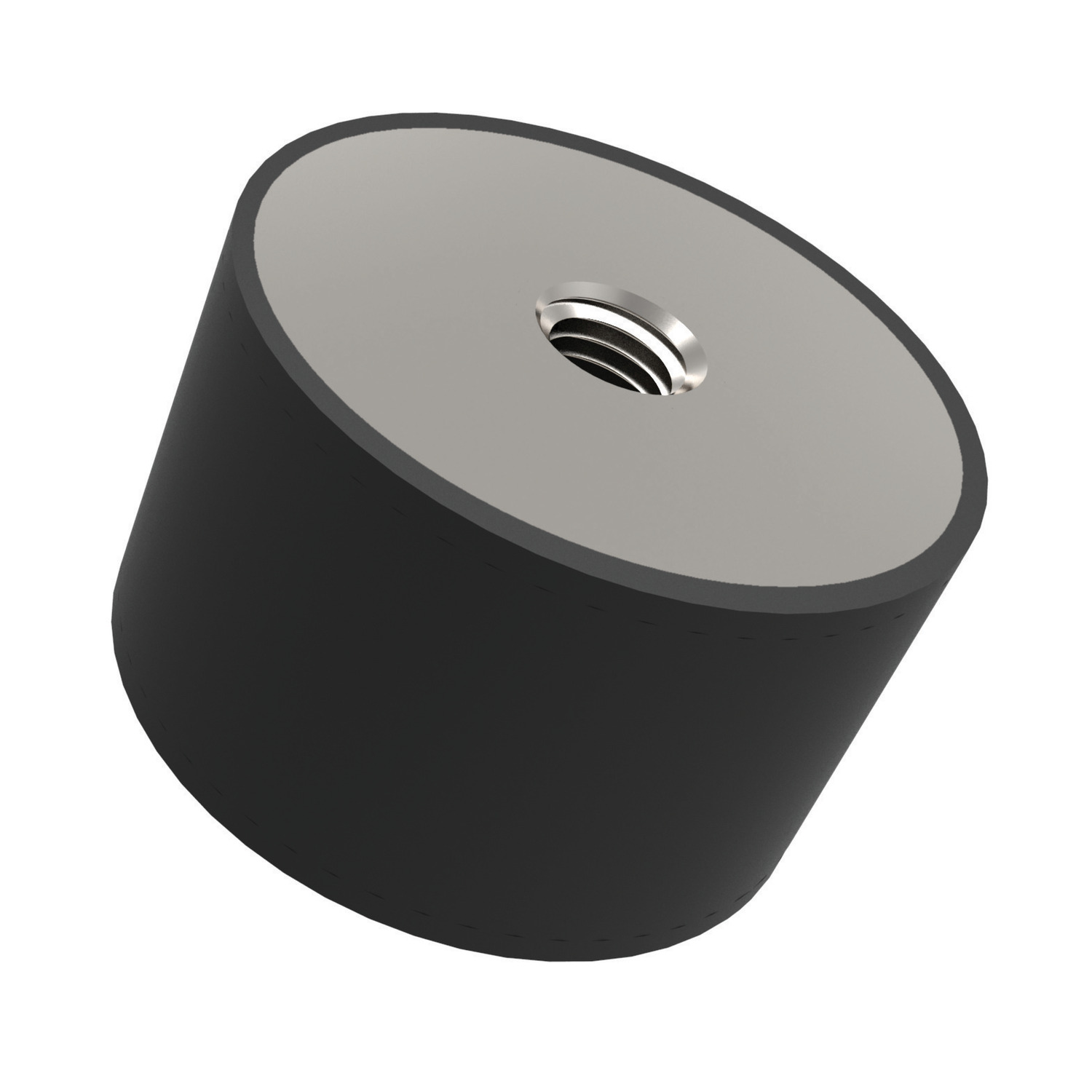

P2008 Anti-vibration Cylinders
female:female
Alternative products you may wish to consider
d1
h
d2
Compression
max.
Max. axial
load Kgf
Max. radial
load Kgf
| Order No. | d1 | h | d2 | Compression max. |
Max. axial load Kgf |
Max. radial load Kgf |
||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P2008.015-015 | 15 | 15 | M 4 | 3,0 | 13 | 3 | |||||||||||||||||||||||||||||||||||||||||||
£ 2.96 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
 |
P2008.015-020 | 15 | 20 | M 4 | 4,0 | 10 | 3 | |||||||||||||||||||||||||||||||||||||||||||
£ 2.80 per unit (click for quantity discounts)
Ready to despatch 69 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.015-022 | 15 | 22 | M 4 | 4,5 | 10 | 2,5 | |||||||||||||||||||||||||||||||||||||||||||
£ 2.84 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.015-025 | 15 | 25 | M 4 | 5,0 | 9 | 2 | |||||||||||||||||||||||||||||||||||||||||||
£ 2.88 per unit (click for quantity discounts)
Ready to despatch 74 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.015-028 | 15 | 28 | M 4 | 5,5 | 9 | 2 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.26 per unit (click for quantity discounts)
Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.020-020 | 20 | 20 | M 6 | 4,0 | 25 | 4 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.32 per unit (click for quantity discounts)
Ready to despatch 80 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.020-025 | 20 | 25 | M 6 | 5,0 | 25 | 5 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.36 per unit (click for quantity discounts)
Ready to despatch 33 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.020-030 | 20 | 30 | M 6 | 7,0 | 25 | 3 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.36 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.020-035 | 20 | 35 | M 6 | 8,0 | 16 | 2 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.50 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.025-020 | 25 | 20 | M 6 | 4,0 | 50 | 8 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.59 per unit (click for quantity discounts)
Ready to despatch 171 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.025-025 | 25 | 25 | M 6 | 5,0 | 40 | 8 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.60 per unit (click for quantity discounts)
Ready to despatch 80 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.025-030 | 25 | 30 | M 6 | 6,0 | 30 | 8 | |||||||||||||||||||||||||||||||||||||||||||
£ 3.91 per unit (click for quantity discounts)
Ready to despatch 28 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.025-035 | 25 | 35 | M 6 | 8,0 | 35 | 9 | |||||||||||||||||||||||||||||||||||||||||||
£ 4.17 per unit (click for quantity discounts)
Ready to despatch 13 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.030-020 | 30 | 20 | M 8 | 4,0 | 90 | 11 | |||||||||||||||||||||||||||||||||||||||||||
£ 5.17 per unit (click for quantity discounts)
Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.030-025 | 30 | 25 | M 8 | 5,0 | 85 | 10 | |||||||||||||||||||||||||||||||||||||||||||
£ 5.16 per unit (click for quantity discounts)
Ready to despatch 164 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.030-030 | 30 | 30 | M 8 | 6,0 | 80 | 10 | |||||||||||||||||||||||||||||||||||||||||||
£ 5.30 per unit (click for quantity discounts)
Ready to despatch 157 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.035-040 | 35 | 40 | M 8 | 8,5 | 60 | 13 | |||||||||||||||||||||||||||||||||||||||||||
£ 6.44 per unit (click for quantity discounts)
Ready to despatch 61 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.040-030 | 40 | 30 | M 8 | 8,0 | 150 | 18 | |||||||||||||||||||||||||||||||||||||||||||
£ 5.97 per unit (click for quantity discounts)
Ready to despatch 174 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.040-040 | 40 | 40 | M 8 | 10,0 | 120 | 18 | |||||||||||||||||||||||||||||||||||||||||||
£ 6.66 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.040-050 | 40 | 50 | M 8 | 12,5 | 80 | 18 | |||||||||||||||||||||||||||||||||||||||||||
£ 2.22 per unit (click for quantity discounts)
Ready to despatch 44 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.050-030 | 50 | 30 | M10 | 8,0 | 250 | 29 | |||||||||||||||||||||||||||||||||||||||||||
£ 7.84 per unit (click for quantity discounts)
Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.050-040 | 50 | 40 | M10 | 10,0 | 220 | 29 | |||||||||||||||||||||||||||||||||||||||||||
£ 8.13 per unit (click for quantity discounts)
Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.050-050 | 50 | 50 | M10 | 12,0 | 200 | 28 | |||||||||||||||||||||||||||||||||||||||||||
£ 9.10 per unit (click for quantity discounts)
Ready to despatch 97 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.060-035 | 60 | 35 | M10 | 7,0 | 350 | 39 | |||||||||||||||||||||||||||||||||||||||||||
£ 11.62 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.060-045 | 60 | 45 | M10 | 10,0 | 300 | 42 | |||||||||||||||||||||||||||||||||||||||||||
£ 11.62 per unit (click for quantity discounts)
Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.060-050 | 60 | 50 | M10 | 11,0 | 285 | 42 | |||||||||||||||||||||||||||||||||||||||||||
£ 14.63 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.070-050 | 70 | 50 | M10 | 10,0 | 350 | 52 | |||||||||||||||||||||||||||||||||||||||||||
£ 14.46 per unit (click for quantity discounts)
Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.070-055 | 70 | 55 | M10 | 10,5 | 230 | 52 | |||||||||||||||||||||||||||||||||||||||||||
£ 15.43 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.075-040 | 75 | 40 | M12 | 9,0 | 500 | 72 | |||||||||||||||||||||||||||||||||||||||||||
£ 17.34 per unit (click for quantity discounts)
Ready to despatch 29 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.075-050 | 75 | 50 | M12 | 11,5 | 330 | 65 | |||||||||||||||||||||||||||||||||||||||||||
£ 18.41 per unit (click for quantity discounts)
Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.075-055 | 75 | 55 | M12 | 13,0 | 450 | 65 | |||||||||||||||||||||||||||||||||||||||||||
£ 20.44 per unit (click for quantity discounts)
Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.080-070 | 80 | 70 | M14 | 15,0 | 550 | 65 | |||||||||||||||||||||||||||||||||||||||||||
£ 25.06 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout. | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.100-040 | 100 | 40 | M16 | 8,0 | 1200 | 95 | |||||||||||||||||||||||||||||||||||||||||||
£ 28.07 per unit (click for quantity discounts)
Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.100-055 | 100 | 55 | M16 | 16,0 | 775 | 97 | |||||||||||||||||||||||||||||||||||||||||||
£ 34.48 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.100-060 | 100 | 60 | M16 | 15,0 | 1100 | 97 | |||||||||||||||||||||||||||||||||||||||||||
£ 38.75 per unit (click for quantity discounts)
Ready to despatch 14 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.100-100 | 100 | 100 | M16 | 16,0 | 500 | 80 | |||||||||||||||||||||||||||||||||||||||||||
£ 46.92 per unit (click for quantity discounts)
Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.130-040 | 130 | 40 | M16 | 6,0 | 1900 | 120 | |||||||||||||||||||||||||||||||||||||||||||
£ 53.15 per unit (click for quantity discounts)
Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
P2008.130-060 | 130 | 60 | M16 | 11,0 | 680 | 100 | |||||||||||||||||||||||||||||||||||||||||||
£ 70.98 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| ||||||||||||||||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Rubber on silver zinc plated steel (rubber hardness - 55 Shore A).
Tips
These cylinders are used to reduce vibration by allowing some movement (in axial and radial as shown).
Typically used in machinery, compressors, air conditioning units, light engineering equipment etc.
