Automotion Components Positioning Stages
What is...
Features
There are two different load ratings for these stages.
Ball slides:

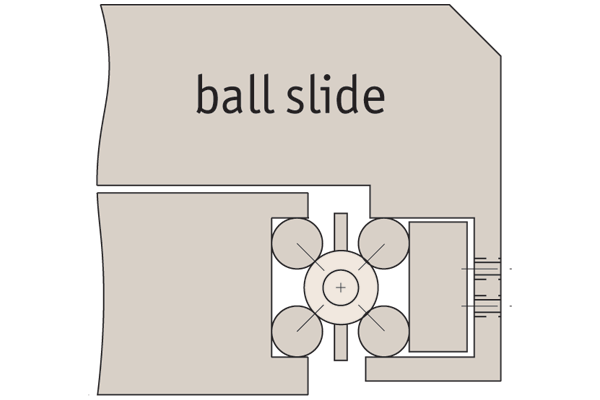

These have precision steel balls rolling in the tracks.
They are the least expensive, loads up to 28Kg.
Locking options
Posi-lock:

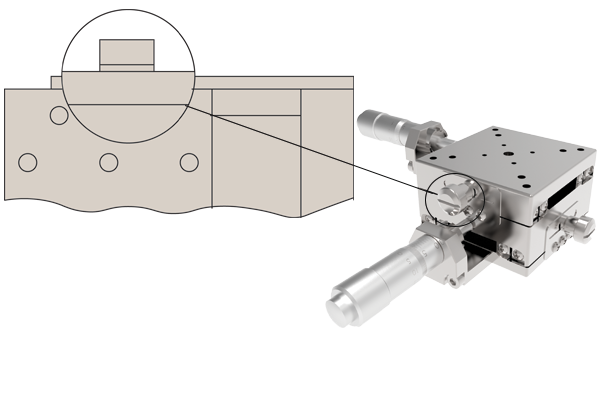

Allows locking of the carriage in place with a friction locking mechanism.

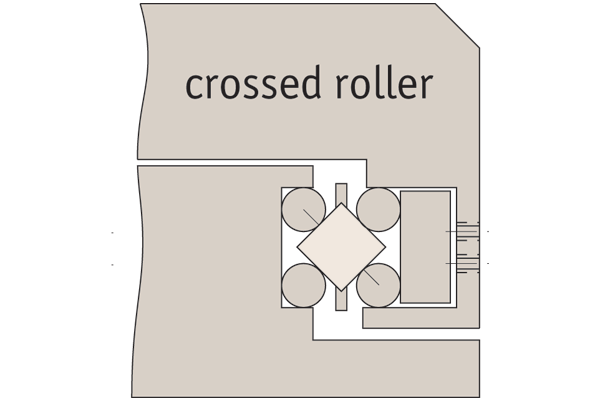

Cross roller slides:
These have the same dimensions but have rollers allowing the slide to carry large loads and absorb greater moment loads up to 54Kg.

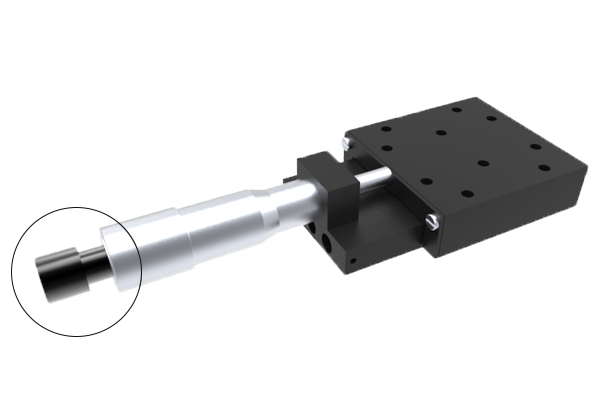

Locking micrometer:
Locking of the micrometer to fix the micrometer setting.

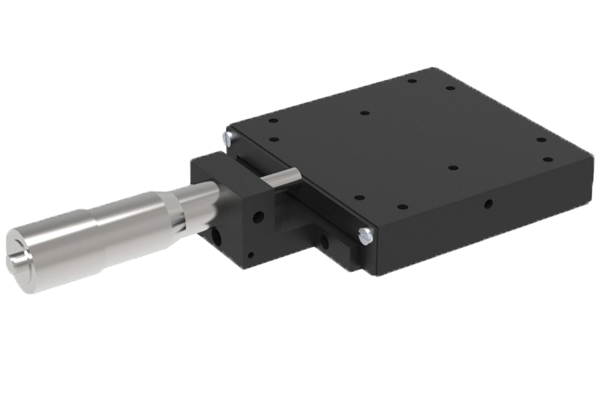

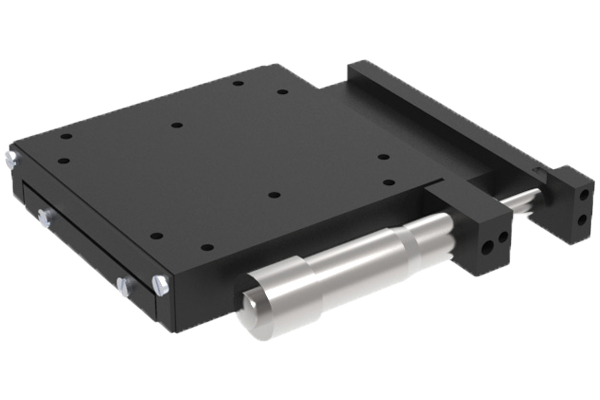

Front drive micrometer positioning stages
X Stage

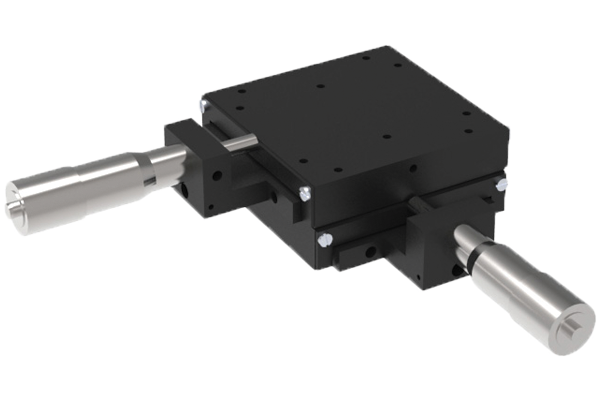

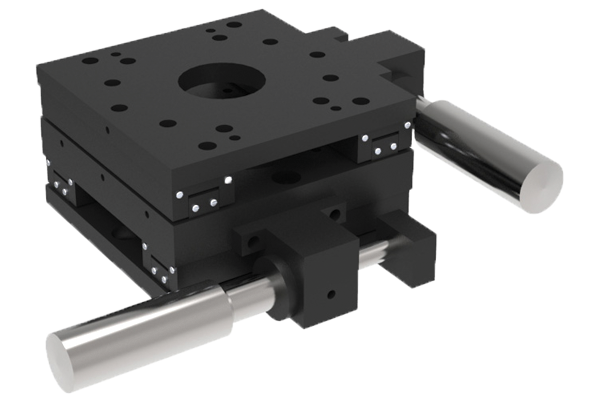

XY Stage

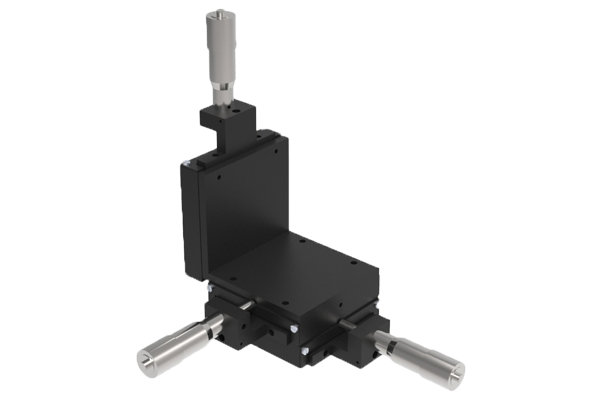

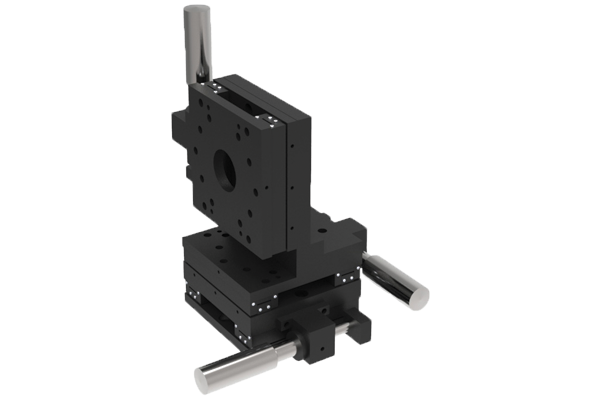

XYZ Stage
Side drive micrometer positioning stages
X Stage
XY Stage
XYZ Stage
Product Selection

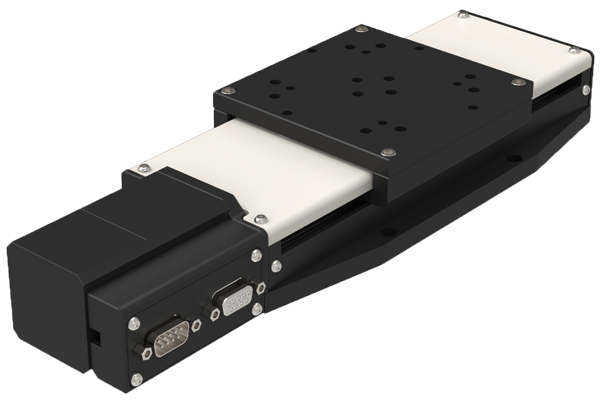

L3500
Medium duty motorised stage

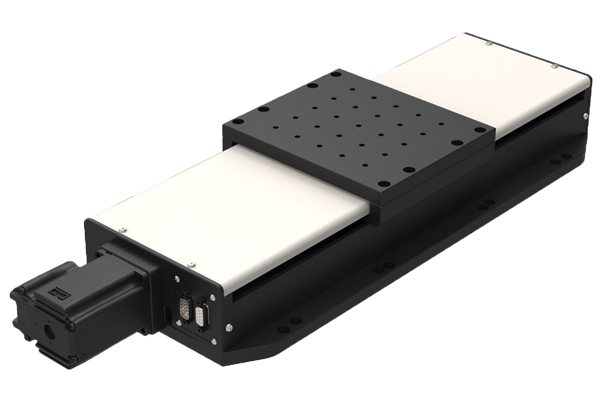

L3504
Heavy-duty motorised stage

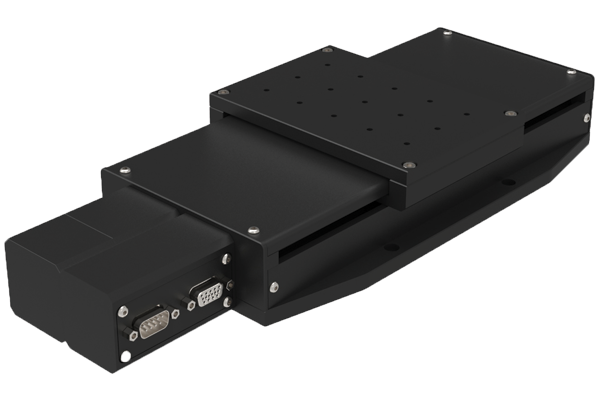

L3505
Motorised linear stage
L3506

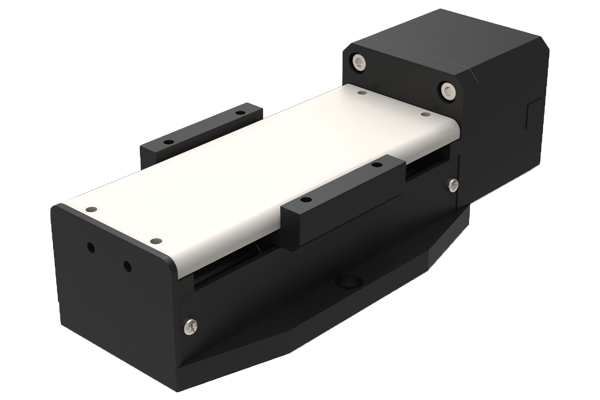

Miniature motorised stage
L3508
Motorised linear stage

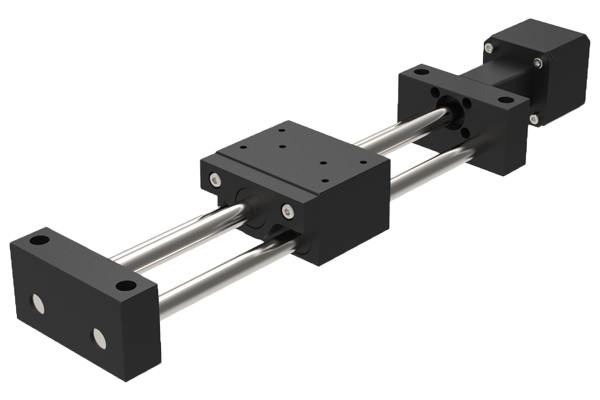

L3510
Motorised linear stage
L3521

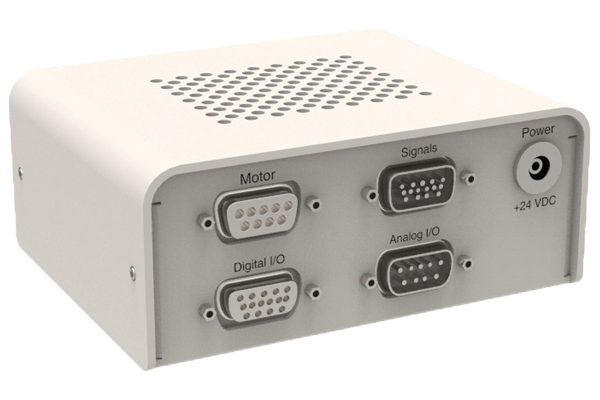

Single axis stepper controller

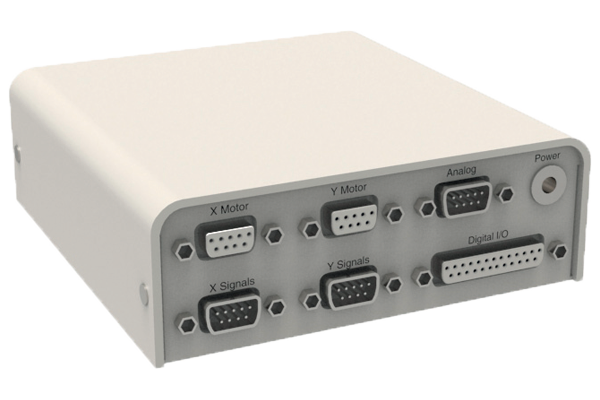

L3522
Two axes stepper controller

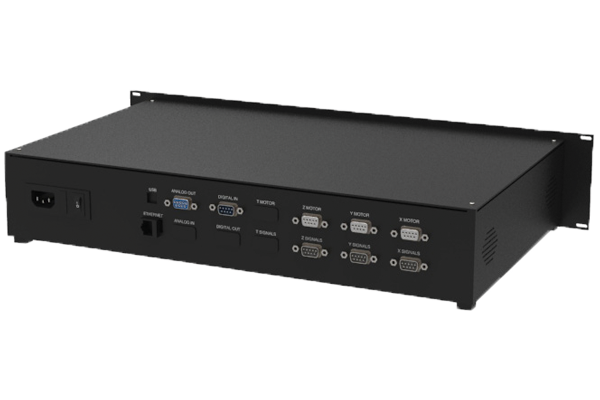

L3524
Multi-axes stepper controller

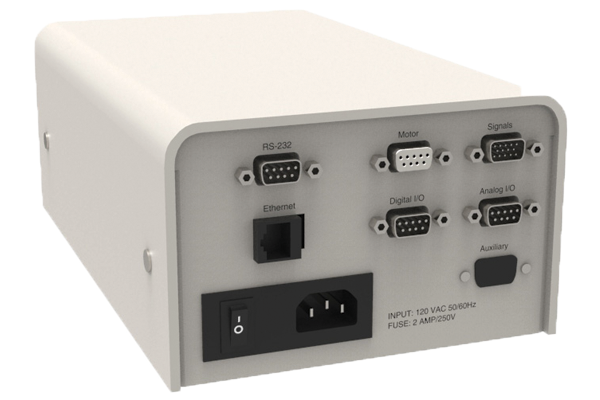

L3525
Single axis servo controller
L3550
Motorised rotary stage Ø50
L3552
Motorised rotary stage Ø75
L3554
Motorised rotary stage Ø75
L3556
Motorised rotary stage Ø125
L3558
Motorised rotary stage Ø125
L3559

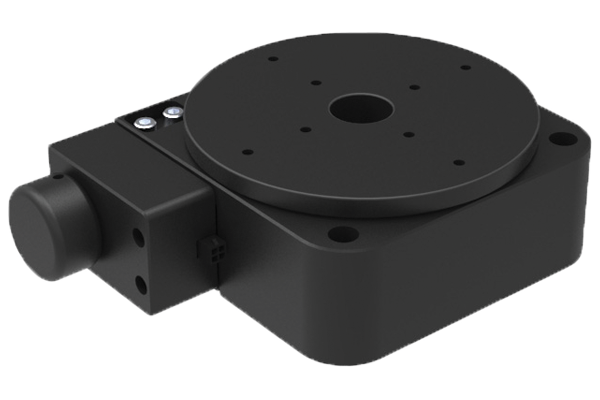

Manual rotary stage Ø125
L3562

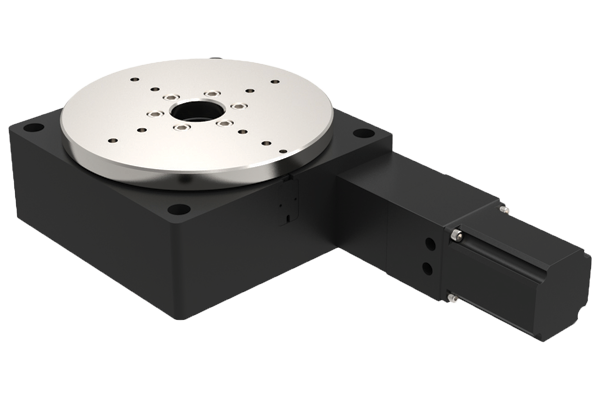

Motorised rotary stage Ø200
L3569

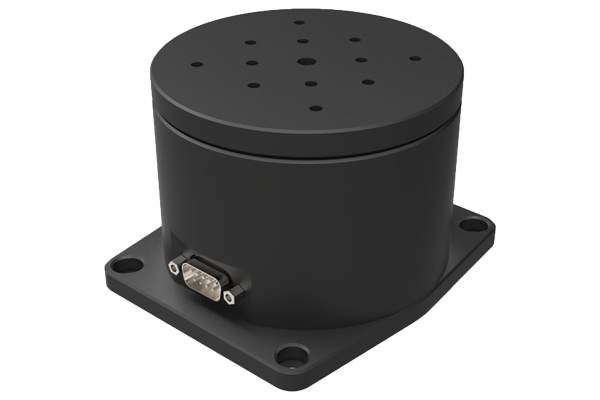

High speed rotary table
L3591

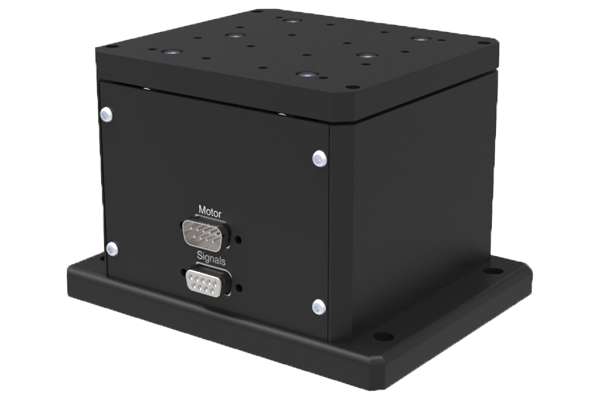

Vertical lift stage motorised

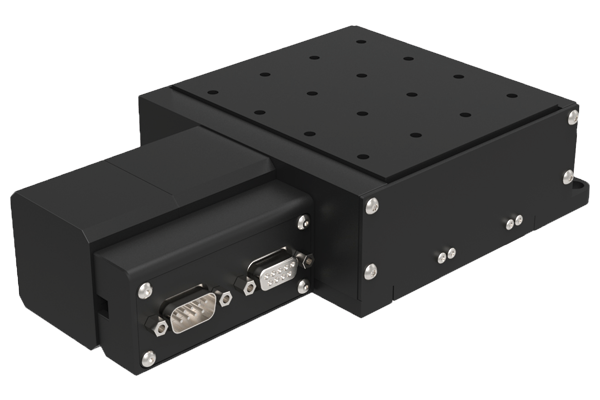

L3592
Vertical lift stage motorised

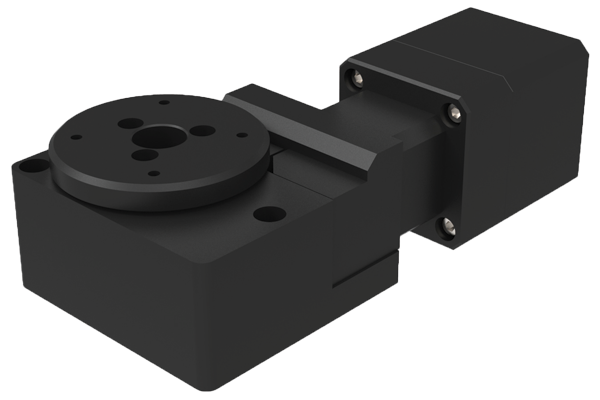

L3550 Ø50 Rotary stage
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 3 arc/sec.
- Loads up to 4.5kg.

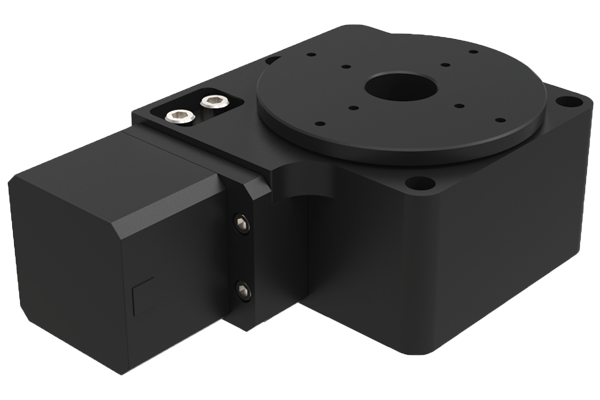

L3552 Ø75 Rotary stage
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 5 arc-secs.
- Loads up to 11kg.

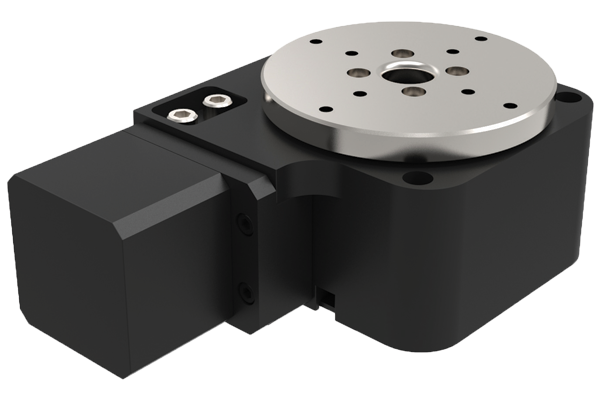

L3554 Ø75 Rotary stage, heavy duty
- Heavy duty.
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 3 arc-secs.
- Loads up to 20kg.

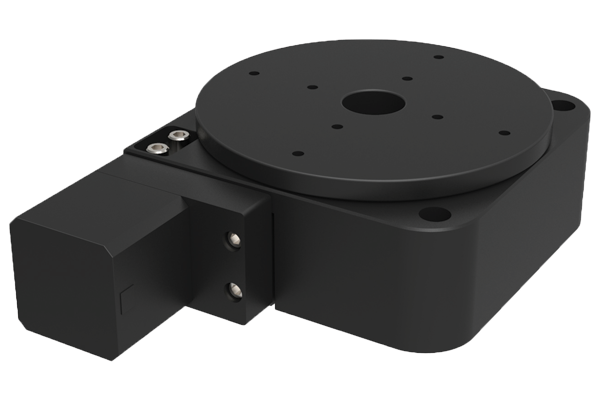

L3556 Ø125 Rotary stage, medium duty
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 5 arc-secs.
- Loads up to 25kg.

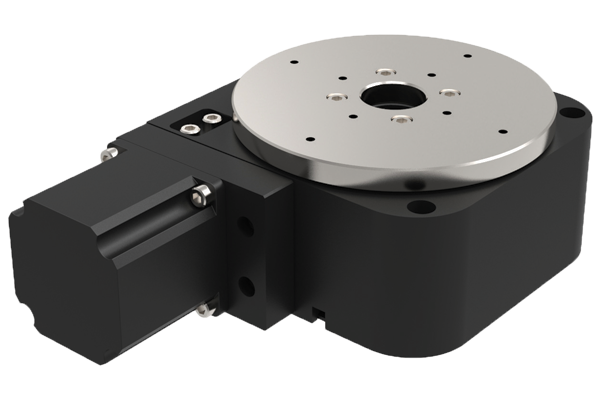

L3558 Ø125 Rotary stage, heavy duty
- Heavy duty.
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 3 arc-secs.
- Loads up to 45kg.
L3662 Ø200 Rotary stage
- Motorised.
- Accurate to 70 arc-secs, repeatedly to 5 arc-secs.
- Loads up to 125kg.
| Part no. | Stepper | MDrive | Servo |
| L3550 | ✔ | ✔ | ✖ |
| L3552 | ✔ | ✔ | ✖ |
| L3554 | ✔ | ✔ | ✔ |
| L3556 | ✔ | ✔ | ✖ |
| L3558 | ✔ | ✔ | ✖ |
| L3562 | ✔ | ✔ | ✔ |
